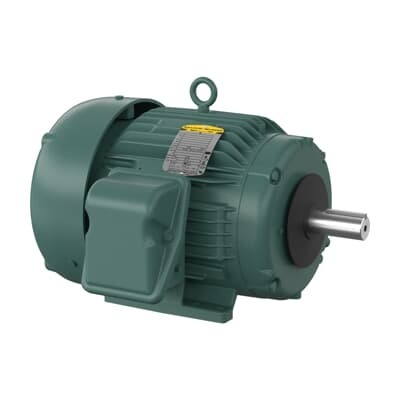

ABB 7BECTM3774T-5G Chiller/Cooling Tower - TEFC
Part Number: 7BECTM3774T-5G
Quick Summary
ABB 7BECTM3774T-5G is a 10 HP motor for chiller and cooling tower applications. In industrial HVAC, reliable drive performance is essential to prevent downtime and maintain consistent cooling. This unit carries CSA EEV, UR, and NEMA Premium efficiency certifications, along with IE3 performance, ensuring regulatory compliance and energy savings. Stocked at multiple warehouses with zero-day lead times helps accelerate project timelines, while standard 60 Hz, 575 V three-phase supply simplifies procurement. Together, these features translate to lower lifecycle costs, predictable performance, and faster ROI for chillers and process cooling systems.
Product Information
Extended Description
7BECTM3774T-5G ABB: Chiller/Cooling Tower 10 Hp 575 V (ECTM3774T-5G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1760RPM,3PH,60HZ,215T,0748M,TE
Ambient Temperature
40 °C
Bearing
6307, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECTM3774T-5G
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
ECTM3774T-5G
Gross Volume
9144.346 inÂł
Gross Weight
231 lb
Heater Indicator
Heater Included, 115 V
Insulation Class
F
Invoice Description
10HP,1760RPM,3PH,60HZ,215T,0748M,TEFC,F1
Made To Order
No
Medium Description
Chiller/Cooling Tower, 10 HP, 1800 RPM, Frame Size 215T, Standard Mounting, 3 Phase, 575 V, 60 Hz
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
83 %
Product Name
Chiller/Cooling Tower
Product Net Depth / Length
28.625 in
Product Net Height
17.625 in
Product Net Weight
231 lb
Product Net Width
18.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
9.8 A
Rated Efficiency
91.70 %
Rated Speed
1760 r/min
Replaced Product ID (OLD)
7B07D718Y729G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Shaft Grounding
Shaft Grounding
Short Description
10 HP, 1800 RPM, Frame Size 215T, Standard, 3 PH, 575 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
575 V
Feature → Business Impact → Application: The 10 HP, 1760 r/min rating at 60 Hz and 575 V three-phase drive provides solid torque for smooth start-up and robust load handling, reducing current spikes and extending motor life in chiller applications. This supports energy-efficient operation and lower maintenance costs in industrial HVAC systems. Application: ideal for chiller and cooling tower drives in large-scale manufacturing or data center cooling where reliable performance directly affects process stability. Feature → Business Impact → Application: TEFC enclosure protects windings from dust, moisture, and incidental contact, lowering insulation failures and maintenance intervals. This is especially valuable on factory floors or outdoor units where environmental exposure is common. Application: suitable for harsh environments in process cooling and HVAC equipment. Feature → Business Impact → Application: IE3 efficiency with NEMA Premium designation delivers measurable energy savings and regulatory compliance, contributing to lower utility costs and enhanced sustainability programs. Application: benefits facilities pursuing energy reduction targets and green-building certifications. Feature → Business Impact → Application: Frame 215T with a 1.38 in shaft and 4-pole design yields compatibility with standard mounting footprints and straightforward mechanical integration, minimizing installation time and risk. Application: plug-and-play replacement or new builds in chillers and cooling towers. Feature → Business Impact → Application: Direct on line starting and 0-day lead time stock at multiple warehouses shorten deployment timelines, reduce downtime, and support rapid spares planning. Application: critical for uptime-sensitive cooling systems in manufacturing, data centers, and pharmaceutical plants. Feature → Business Impact → Application: Warranty and return policy alignment (“Product under warranty must be returned”) provides clear risk management and simplifies post-sale support, boosting total cost of ownership analytics. Application: essential for procurement teams evaluating long-term serviceability across installed base.
