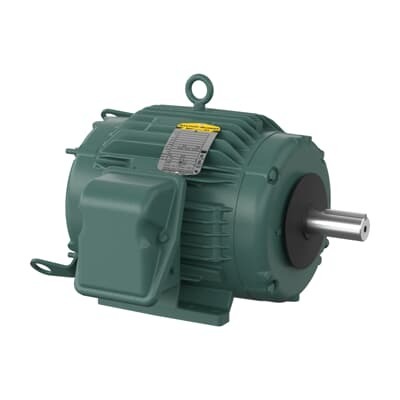

ABB 7BECTM3774T-G-AO Chiller/Cooling Tower - IE3 Premium
Part Number: 7BECTM3774T-G-AO
Quick Summary
ABB 7BECTM3774T-G-AO is a 10 HP chiller/cooling tower motor designed for reliable service in industrial cooling applications. This 3‑phase TEAO enclosure motor runs at 1765 r/min with a 60 Hz rating and supports 230/460 V operation, making it a flexible fit for mixed electrical grids. For engineers, energy cost and downtime are perennial pain points; this model delivers high efficiency and robust construction to minimize both. It carries critical certifications including NEMA Premium efficiency, CSA/EEV listings, and UR recognition, supporting regulatory compliance and long-term serviceability. With a foot-mounted, horizontal 215T frame and direct-on-line starting, it integrates seamlessly with standard drive systems while offering predictable maintenance cycles and improved total cost of ownership.
Product Information
Extended Description
7BECTM3774T-G-AO ABB: Chiller/Cooling Tower 10 Hp 230 V (ECTM3774T-G-AO)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10 AIR OVERHP,1765RPM,3PH,60HZ,215T
Ambient Temperature
40 °C
Bearing
6307, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECTM3774T-G-AO
Certification Agency
CSA | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Drive End Flange Type
Standard
Efficiency Level
IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEAO
Frame Material
Iron
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
ECTM3774T-G-AO
Gross Volume
9144.346 in³
Gross Weight
231 lb
Heater Indicator
Heater Included, 115 V
Insulation Class
F
Invoice Description
10 AIR OVERHP,1765RPM,3PH,60HZ,215T,0748
Made To Order
No
Medium Description
Chiller/Cooling Tower, 10 HP, 1800 RPM, Frame Size 215T, Standard Mounting, 3 Phase, 230/460 V, 60 Hz
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
83 %
Product Name
Chiller/Cooling Tower
Product Net Depth / Length
28.625 in
Product Net Height
17.625 in
Product Net Weight
231 lb
Product Net Width
18.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
24.6 A | 12.3 A
Rated Efficiency
91.70 %
Rated Speed
1765 r/min
Replaced Product ID (OLD)
7B07D709T511G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Shaft Grounding
Shaft Grounding
Short Description
10 HP, 1800 RPM, Frame Size 215T, Standard, 3 PH, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The motor's IE3 Premium efficiency translates to lower operating costs and reduced carbon footprint in continuous cooling tower service, enabling HVAC and process cooling teams to meet energy targets while maintaining peak performance in hot climates. The TEAO enclosure minimizes maintenance needs and simplifies installation in confined plant spaces, reducing downtime and enabling quicker commissioning for chiller systems across food processing, chemical processing, and data-center cooling. The 215T frame with foot mounting and horizontal orientation provides straightforward retrofits in existing basements or equipment racks, improving compatibility with legacy drives and minimizing support hardware. Direct-on-line starting reduces install complexity and spare-parts requirements, delivering fast startup and predictable torque in 3-phase 60 Hz networks. Sealed 6307 bearings and a 1.38 in shaft diameter enhance reliability in high-vibration environments typical of cooling tower loads, lowering replacement costs and unplanned downtime. The design supports 230/460 V operation and 60 Hz power, enabling multi-supply flexibility for global projects and easing procurement across regions with diverse electrical standards. Industry experience shows that stock availability, with zero-day lead times, minimizes project delays; ABB’s global stocking at multiple warehouses reinforces supply chain resilience for critical cooling applications.
