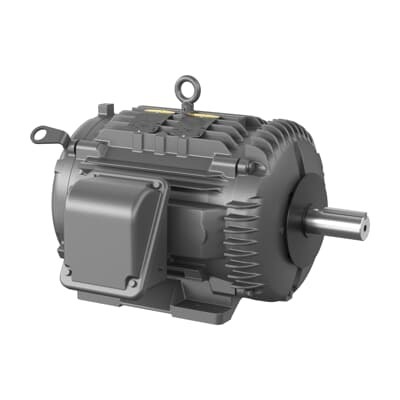

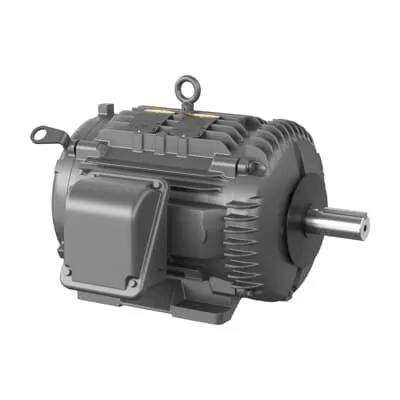

ABB 7BECTM4103T Chiller/Cooling Tower - TEAO 284T
Part Number: 7BECTM4103T
Quick Summary
The ABB 7BECTM4103T Chiller/Cooling Tower motor delivers 25 HP for reliable industrial cooling in HVAC and process chillers. This TEAO, 3-phase motor runs on a dual voltage 230/460 V supply and features a compact 284T frame to fit common baseplates while delivering solid torque at 1775 r/min. Operators often face downtime and energy waste when selecting motors for demanding cooling Tower applications; this model is designed to minimize both through high efficiency and durable bearings. With CSA, CSA EEV, and UR certifications, it meets stringent compliance and OEM standards, while stock availability across multiple warehouses supports quick procurement. Overall, the 7BECTM4103T balances performance, reliability, and total cost of ownership for critical cooling systems.
Product Information
Extended Description
7BECTM4103T ABB: Chiller/Cooling Tower 25 Hp 230 V (ECTM4103T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
25 AIR OVERHP,1775RPM,3PH,60HZ,284T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6311, Sealed Bearing
Bearing NDE
6309
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
ECTM4103T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
A
Dimension Diagram
10LYK189: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEAO
Frame Material
Iron
Frame Size
284
Frequency (f)
60 Hz
Global Commercial Alias
ECTM4103T
Gross Volume
14448.906 in³
Gross Weight
378 lb
Horsepower Rating UL/CSA
25.000 Hp
IC Class
TEAO
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
25 AIR OVERHP,1775RPM,3PH,60HZ,284T,1054
Lubrication
Regreasable
Made To Order
No
Medium Description
Chiller/Cooling Tower, 25 HP, 1800 RPM, Frame Size 284T, Standard Mounting, 3 Phase, TEAO Enclosure, 230/460 V, 60 Hz (ECTM4103T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
284T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
25 Hp
Power Factor
81 %
Product Name
Chiller/Cooling Tower
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
378 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
62 A | 31 A
Rated Efficiency
93.60 %
Rated Speed
1775 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.88 in
Short Description
25 HP, 1800 RPM, Frame Size 284T, Standard, 3 PH, TEAO, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
G
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 25 HP rating at 60 Hz with 4 poles delivers robust starting torque and stable operation in continuous duty, reducing unplanned outages in industrial cooling towers and process chillers. This translates to lower downtime and predictable maintenance costs in HVAC retrofits and new plant builds. Feature → Business Impact → Application: Premium Efficiency (NEMA 12-12) improves energy consumption, lowering operating expenses over the motor’s life cycle and helping facilities meet energy performance targets in large-scale cooling systems. Feature → Business Impact → Application: TEAO enclosure simplifies maintenance by eliminating integrated cooling fans, reducing spare parts inventory and service complexity for outdoor or semi-enclosed environments in petrochemical and food & beverage cooling loops. Feature → Business Impact → Application: Dual voltage 230/460 V and 284T frame compatibility enable straightforward replacements in existing equipment footprints, supporting retrofit programs and OEM compatibility across legacy plants. Feature → Business Impact → Application: Foot-mounted, horizontal mounting orientation with DOL starting provides fast installation and easy alignment, minimizing commissioning time in new chillers and cooling towers. Feature → Business Impact → Application: Durable bearings (6311 sealed; NDE 6309) and a rugged iron frame enhance longevity in high-load cooling duties, delivering longer service intervals and lower total cost of ownership in heavy process cooling environments. Feature → Business Impact → Application: 3-phase, 60 Hz operation with a defined synchronous speed of 1800 r/min ensures predictable performance in synchronous drive systems, improving control accuracy in precise temperature regulation applications. Feature → Business Impact → Application: Compliance-ready design (CSA, CSA EEV, UR) supports regulatory alignment for systems requiring rigorous certification in critical facilities such as data centers and pharmaceutical cooling loops.
