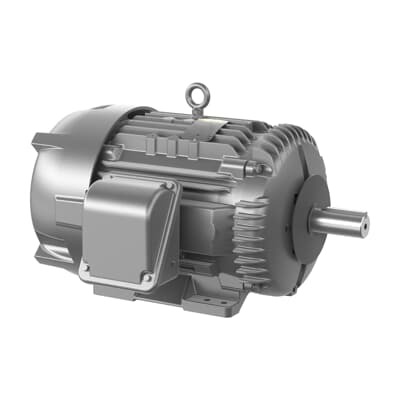

ABB 7BECTM4104T-G Chiller/Cooling Tower - IE3 Premium
Part Number: 7BECTM4104T-G
Quick Summary
Chiller/Cooling Tower ABB 7BECTM4104T-G delivers 30 HP motor performance for industrial cooling systems. Operators often face energy waste and reliability gaps with legacy motors in demanding HVAC and process cooling environments. This unit carries IE3 premium efficiency, CSA EEV and NEMA Premium certifications, with UR recognition, supporting compliance and long-term savings. Designed for 60 Hz systems at 230/460 V, the motor is ready for direct mounting and robust industrial use, helping you reduce downtime and total cost of ownership while improving overall equipment effectiveness.
Product Information
Extended Description
7BECTM4104T-G ABB: Chiller/Cooling Tower 30 Hp 230 V (ECTM4104T-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
30HP,1760RPM,3PH,60HZ,286T,1056M,TE
Ambient Temperature
40 °C
Bearing
6311, Sealed Bearing
Bearing NDE
6309
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECTM4104T-G
Certification Agency
CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Drive End Flange Type
Standard
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
Undefined
Frequency (f)
60 Hz
Global Commercial Alias
ECTM4104T-G
Gross Volume
14448.906 in³
Gross Weight
437 lb
Heater Indicator
Heater Included, 115 V
Insulation Class
F
Invoice Description
30HP,1760RPM,3PH,60HZ,286T,1056M,TEFC,F1
Made To Order
No
Medium Description
Chiller/Cooling Tower, 30 HP, 1800 RPM, Frame Size 286T, Standard Mounting, 3 Phase, 230/460 V, 60 Hz (ECTM4104T-G)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
286T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
30 Hp
Power Factor
80 %
Product Name
Chiller/Cooling Tower
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
437 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
76 A | 38 A
Rated Efficiency
93.60 %
Rated Speed
1760 r/min
Replaced Product ID (OLD)
7B10T010Y538G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.88 in
Shaft Grounding
Shaft Grounding
Short Description
30 HP, 1800 RPM, Frame Size 286T, Standard, 3 PH, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Feature: IE3 premium efficiency with a rated 93.60% efficiency. Business Impact: Lower energy consumption and reduced operating costs across continuous cooling loads. Application: Ideal for chiller packs and cooling towers where energy performance directly affects uptime and throughput. Feature: 230/460 V dual voltage and 60 Hz operation. Business Impact: Simplifies electrical installation, reduces spare parts, and accelerates commissioning. Application: Suitable for international sites and multi-plant facilities with varied power supplies. Feature: Frame 286T, TEFC enclosure, and 1.88 in shaft diameter. Business Impact: Robust mechanicals and easier integration with standard base plates; extended motor life in harsh environments. Application: Foot-mounted installations in industrial HVAC equipment. Feature: Direct-on-line starting and 3-phase 4-pole design (1760 r/min). Business Impact: Minimizes control complexity and startup costs; improves startup reliability. Application: Replacement for aging motors in cooling towers and chillers. Feature: Sealed bearing 6311, insulation class F, ambient rating 40 °C. Business Impact: Low maintenance needs and resistance to heat, dust, and moisture. Application: Continuous duty in demanding plants. Feature: Certifications and stock access (CSA EEV, UR, NEMA Premium). Business Impact: Regulatory compliance and faster procurement; reduces total cost of ownership. Application: Global projects requiring traceable approvals and quick lead times.
Get a Quick Quote for a ABB 7BECTM4104T-G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BECTM4104T-G?
Enquire Now
FAQs
Yes. The 286T frame with a foot-mounted base is designed for straightforward installation in standard cooling towers and chillers, operating at 60 Hz with dual voltage options of 230 V and 460 V. It supports direct-on-line starting to simplify electrical wiring and reduce commissioning time.
The motor is a 3-phase, 4-pole design delivering 30 HP with a rated speed of 1760 r/min. It operates on 230/460 V at 60 Hz and features an efficiency rating of 93.60% (IE3). The rated current is 76 A (nominal) and 38 A under light-load conditions, suitable for continuous cooling duty.
Ideal for industrial HVAC, chillers, and cooling towers in manufacturing, data centers, and process cooling where reliable motor performance, energy efficiency, and compact footprint matter. Its TEFC enclosure and robust bearings enable long life in demanding environments with frequent start/stop cycles.
The unit aligns with IE3 premium efficiency standards and carries CSA EEV and NEMA Premium certifications, with UR recognition. These certifications help meet energy and safety regulations across North American and international sites, while supporting reliable supplier qualification and audit readiness.
With a sealed 6311 bearing, F-class insulation, and a 40 °C ambient rating, maintenance is reduced and uptime increases. Its high efficiency and direct-on-line start shorten energy and startup costs, delivering accelerated ROI for cooling systems and lower total cost of ownership over the motor’s life cycle.
