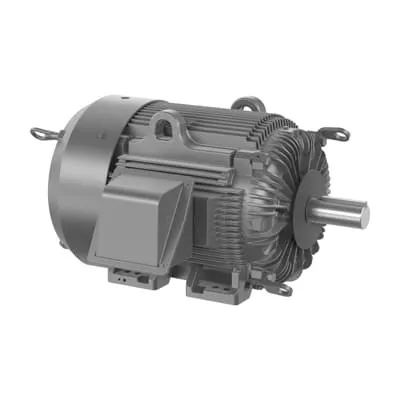

ABB 7BECTM4404T-G General Purpose Motor - NEMA Premium
Part Number: 7BECTM4404T-G
Quick Summary
General Purpose Motor ABB 7BECTM4404T-G delivers dependable performance for industrial drives. This 75 HP, 230/460 V, three-phase motor is built for reliability in conveyors, pumps, and machine tools, with a sturdy TEFC enclosure and a 405T frame. It carries multiple certifications including NEMA Premium Efficiency, UR, and CCUSA, underscoring energy compliance and safety. With 0-day lead times and stock across multiple warehouses, it supports lean maintenance and rapid deployment. For OEMs and integrators, the dual-voltage capability, horizontal foot-mounted mounting, and standard shaft sizing simplify installation, spare parts planning, and long-term serviceability in demanding manufacturing environments.
Product Information
Extended Description
7BECTM4404T-G ABB: General Purpose Motor 75 Hp 230 V (ECTM4404T-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
75HP,1185RPM,3PH,60HZ,405T,A40064M,
Ambient Temperature
40 °C
Bearing
6316, Ball
Bearing NDE
6316
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
ECTM4404T-G
Certification Agency
CCSAUSEEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Drive End Flange Type
Standard
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
Undefined
Global Commercial Alias
ECTM4404T-G
Gross Volume
75711.563 in³
Gross Weight
1322 lb
Insulation Class
F
Invoice Description
75HP,1185RPM,3PH,60HZ,405T,A40064M,TEFC
Made To Order
No
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
405T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
75 Hp
Power Factor
85 %
Product Name
GP 3PH Enclosed
Product Net Depth / Length
41.5 in
Product Net Height
52.5 in
Product Net Weight
1322 lb
Product Net Width
34.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
174 A | 86.9 A
Rated Efficiency
95 %
Rated Speed
1185 r/min
Replaced Product ID (OLD)
7BA40-7223-0770
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
2.88 in
Shaft Grounding
Shaft Grounding
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
Voltage Rating
230 V | 460 V
Dual voltage operation and 3-phase design align with diverse plant electrical architectures, enabling a single hardware baseline across sites and reducing wiring complexity. This feature yields lower installation costs and faster commissioning while supporting direct-on-line starting for simple, reliable motor control in conveyors and pump applications. The TEFC enclosure plus 405T frame delivers rugged protection in dirty or humid factory floors, minimizing unexpected downtime and maintenance expenses. With premium efficiency (95%) and a service factor of 1.15, customers gain measurable energy savings and a higher tolerance for short overloads, improving overall process reliability in continuous-duty operations. The 75 HP rating at 1185 r/min (synchronous 1200 r/min) supports high-torque startup and steady-load performance, while the 2.88 in shaft diameter and 3-phase input simplify couplings and motor alignment in gear trains and belts. Mounting is horizontal and foot-mounted for quick installation and straightforward retrofit into legacy equipment, reducing downtime during swaps. Weight and dimensions (1322 lb, 41.5 in length, 52.5 in height, 34.75 in width) fit standard fabrication tolerances, easing cabinet and base plate design. The motor is stocked and non-configured (not made to order), with 0-day lead times, simplifying procurement and long-term lifecycle planning for maintenance teams. Cold-rolled steel frame and iron construction provide robust durability in continuous operation, while shaft grounding and NEMA B design support reliable performance in demanding industrial environments. Overall, this ABB solution balances efficiency, reliability, and ease of installation for OEMs and service teams seeking rapid ROI on motor-driven systems.
Get a Quick Quote for a ABB 7BECTM4404T-G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BECTM4404T-G?
Enquire Now
FAQs
Yes. The 7BECTM4404T-G uses a 405T frame and a foot-mounted base with horizontal mounting. It supports dual voltage operation (230 V / 460 V) and is suitable for Direct on Line starting, simplifying panel design and enabling quick retrofit into existing systems.
The motor delivers 75 HP with rated speed of 1185 rpm (synchronous 1200 r/min), 3-phase input, voltage 230 V or 460 V, and rated current of 174 A at 230 V and 86.9 A at 460 V. It features a 1.15 service factor and 95% efficiency, aligning with demanding continuous-duty applications.
Ideal for conveyors, pumps, and fans in manufacturing and processing facilities. Its continuous-duty rating, TEFC enclosure, and robust 405T frame support reliable operation in harsh factory environments, while dual voltage supports equipment common across OEM lines.
This motor aligns with NEMA Premium Efficiency standards and is UR certified, with design code B and other compliance references. These certifications ensure energy efficiency, safety, and reliability, reducing lifecycle costs and meeting regulatory requirements in many industrial sectors.
Lead time is 0 days and stock is available at multiple warehouses, enabling rapid deployment and minimized downtime. The TEFC, durable frame, and standard dimensions lower maintenance needs and spare-part complexity, delivering faster ROI for installations and replacements.
