ABB 7BEDM3546 Motors & Drives - NEMA Premium IE3
Part Number: 7BEDM3546
Quick Summary
7BEDM3546 motor from ABB provides 1 HP, 230 V operation for severe-duty industrial drives in manufacturing, processing, and material-handling environments. This motor is designed to minimize unscheduled downtime by withstanding dirty-duty autophoretic conditions and constant operation. It carries NEMA Premium efficiency, IE3 performance, and CSA/UR certifications, delivering reliable power with lower energy costs. The TEFC enclosure and rugged steel frame boost durability in demanding spaces, while 56-frame size and foot-mounting simplify replacement and installation. By aligning with standard 3-phase, 60 Hz systems, it streamlines procurement, maintenance planning, and spare-part inventories for automation projects.
Product Information
Extended Description

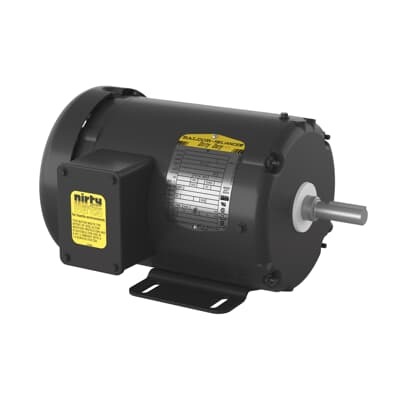

7BEDM3546 ABB: Severe Duty Motor 1 Hp 230 V (EDM3546)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1HP,1770RPM,3PH,60HZ,56,3520M,TEFC,
Ambient Temperature
40 °C
Bearing
6205, Sealed Bearing
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
EDM3546
Certification Agency
CCSA US | CSA EEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015100
Dimension Diagram
35LYE4313: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
EDM3546
Gross Volume
3496.049 in³
Gross Weight
35 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
1HP,1770RPM,3PH,60HZ,56,3520M,TEFC,F1,N
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
Dirty Duty Autophoretic, 1 HP, 1800 RPM, Frame Size 56, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EDM3546)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
56
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
1 Hp
Power Factor
69 %
Product Name
Dirty Duty Autophoretic
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
35 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3.2 A | 1.6 A
Rated Efficiency
85.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
1 HP, 1800 RPM, Frame Size 56, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: TEFC enclosure and rugged 56-frame design provide robust protection in dusty, humid, and dirty-industrial environments. Business Impact: minimizes winding degradation, extends service intervals, and lowers maintenance costs. Application: ideal for conveyors, pumps, and fans in harsh manufacturing lines. Feature: 1 HP, 230/460 V, 60 Hz 3-phase operation with DOL starting reduces auxiliary hardware and simplifies integration with existing power networks. Business Impact: lowers up-front drive costs and accelerates installation while preserving performance. Application: suitable for standard automation cells and mid-size equipment fleets. Feature: IE3 / NEMA Premium efficiency and 1.15 service factor deliver reliable performance under fluctuating loads. Business Impact: reduces energy consumption and improves compliance with energy-efficiency mandates, delivering observable lifecycle savings. Application: critical in energy-intensive processes such as pumps and blowers in continuous-duty lines. Feature: Foot-mounted, frame 56, 0.63 in shaft, and horizontal F1 mounting support quick replacement and straightforward coupling with belts, pulleys, or gearheads. Business Impact: speeds up maintenance turns and minimizes downtime during swaps. Application: widely compatible with existing plant layouts and standard mounting brackets. Feature: Sealed bearings (6205) and 40 °C ambient rating enhance reliability in dirty environments. Business Impact: reduces lubrication intervals, wear, and risk of unplanned outages. Application: long-life operation in inaccessible or remote locations, across US and international facilities.
