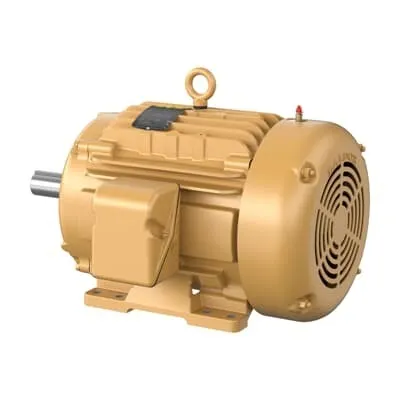

ABB 7BEFM2394T General Purpose Motor - IE3 Premium
Part Number: 7BEFM2394T
Quick Summary
7BEFM2394T General Purpose Motor delivers 15 HP for 3-phase industrial drives, optimized for reliable operation across manufacturing lines. This motor addresses downtime and energy waste by delivering a robust, smooth-starting performance with consistent speed and reduced vibration. Key certifications and standards include IE3 premium efficiency, TEFC enclosure, and NEMA design with CSA and UR approvals, supporting safe, regulatory-compliant operation in North American facilities. Dual voltage options (230/460 V) simplify electrical design, while the 254T frame and 60 Hz capability fit a wide range of equipment, from pumps to conveyors. Stocked across multiple warehouses enables quick fulfillment, lowering project lead times and total cost of ownership.
Product Information
Extended Description
7BEFM2394T ABB: General Purpose Motor 15 Hp 230 V (EFM2394T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
15HP,3520RPM,3PH,60HZ,254T,0930M,TE
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6208 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EFM2394T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
09LYC106: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
254
Frequency (f)
60 Hz
Global Commercial Alias
EFM2394T
Gross Volume
9651.933 in³
Gross Weight
107.048 kg
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
15HP,3520RPM,3PH,60HZ,254T,0930M,TEFC,F2
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 15 HP, 3600 RPM, Frame Size 254T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EFM239
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
254T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F2
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
15 Hp
Power Factor
87 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
27 in
Product Net Height
17.438 in
Product Net Weight
107.048 kg
Product Net Width
20.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
35 A | 17.5 A
Rated Efficiency
91 %
Rated Speed
3520 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.63 in
Short Description
15 HP, 3600 RPM, Frame Size 254T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Premium IE3 efficiency and TEFC enclosure reduce energy consumption and cooling needs, lowering operating costs while extending motor life. Dual voltage support (230/460 V) and 60 Hz operation offer installation flexibility, enabling easy integration into existing electrical systems and control panels. The 254T frame with foot mounting and a rugged iron enclosure improves reliability in harsh environments; direct-on-line starting simplifies commissioning and minimizes electrical disturbance. A 1.63 in shaft and 6309 bearings provide durable, low-maintenance performance, reducing downtime and maintenance costs in continuous duty applications. Synchronous speed of 3600 r/min and rated speed of 3520 r/min deliver predictable torque for conveyors, pumps, and fans. Stock availability across major warehouses shortens lead times and supports just-in-time manufacturing and project timelines.
