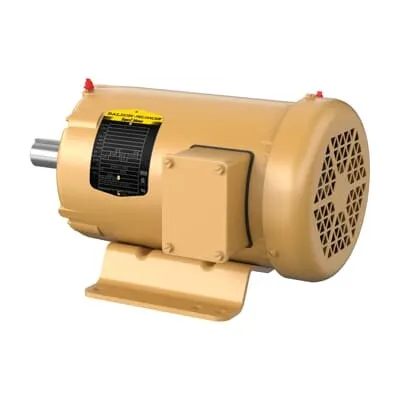

ABB 7BEFM3610T General Purpose Motor 3HP - IE3
Part Number: 7BEFM3610T
Quick Summary
ABB 7BEFM3610T General Purpose Motor 3HP 230/460V is engineered for reliable performance in pumps, fans, and conveyors within industrial settings. This three-phase motor combines robust construction with easy integration into existing drives and control systems, reducing installation time and lifecycle costs. By leveraging a TEFC enclosure, 182T frame, and NEMA B design, it excels in demanding environments while maintaining consistent torque and duty. The inclusion of IE3 efficiency, CSA EEV and UR certifications strengthens compliance and energy savings, enabling smoother audits and longer motor life. For procurement and maintenance teams, the result is predictable performance, simplified stocking, and a clear path to lower total cost of ownership across multiple warehouses.
Product Information
Extended Description
7BEFM3610T ABB: General Purpose Motor 3 Hp 230 V (EFM3610T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3450RPM,3PH,60HZ,182T,3532M,TEF
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EFM3610T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYN395: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
182
Frequency (f)
60 Hz
Global Commercial Alias
EFM3610T
Gross Volume
3496.049 in³
Gross Weight
73 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
3HP,3450RPM,3PH,60HZ,182T,3532M,TEFC,F2
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 3 HP, 3600 RPM, Frame Size 182T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EFM3610
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
182T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F2
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
92 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
73 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
7.2 A | 3.6 A
Rated Efficiency
86.50 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35N395Q060G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
3 HP, 3600 RPM, Frame Size 182T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The motor delivers 3 HP at 230/460 V with 60 Hz operation, enabling efficient power transmission in standard industrial loads such as pumps and conveyors, reducing energy waste and improving uptime in continuous-duty processes. This directly translates to lower operating costs and improved productivity in manufacturing lines. The 182T frame and foot-mounted (F2) configuration simplify retrofits and new installations in tight spaces, accelerating project timelines and reducing commissioning risk for OEMs. TEFC enclosure provides enhanced protection against dust and moisture, increasing mean time between maintenance events and minimizing unplanned downtime in automotive, packaging, or material handling environments. The IE3 premium efficiency class delivers measurable energy savings over legacy IE2 motors, supporting sustainability programs and regulatory compliance in facilities targeting energy-performance benchmarks. CSA EEV and UR certifications, together with NEMA B design, assure regulatory adherence and robust torque across variable loads, which reduces over-sizing and improves motor life in pumps and fans. Lead times and stock levels (0 days, multiple warehouses) reduce procurement friction, enabling faster project kickoffs and better capital utilization. In practice, this combination supports reliable uptime, predictable maintenance costs, and smoother warranty administration for industrial users, with long-term ROI in continuous-process applications.
