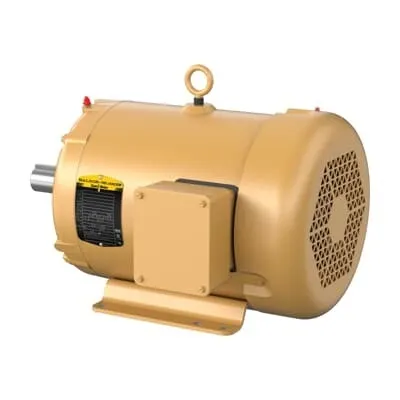

ABB 7BEFM3710T General Purpose Motor - TEFC Enclosed
Part Number: 7BEFM3710T
Quick Summary
ABB 7BEFM3710T is a general-purpose motor designed for continuous duty in industrial equipment such as conveyors and pumps. In demanding manufacturing environments, downtime and energy waste can erode throughput and uptime. This model carries CSA, CSA EEV, and UR certifications, aligning with safety and reliability expectations while operating at 60 Hz. With a 7.5 HP rating, 1770 rpm, and a TEFC enclosure, it integrates smoothly with 230/460 V drives, supporting global procurement and consistent performance across sites.
Product Information
Extended Description
7BEFM3710T ABB: General Purpose Motor 7.5 Hp 230 V (EFM3710T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1770RPM,3PH,60HZ,213T,3738M,T
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EFM3710T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
37LYG863: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
EFM3710T
Gross Volume
7561.383 in³
Gross Weight
128 lb
Horsepower Rating UL/CSA
7.500 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F2
Insulation Class
F
Invoice Description
7.5HP,1770RPM,3PH,60HZ,213T,3738M,TEFC,F
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 7.5 HP, 1800 RPM, Frame Size 213T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EFM37
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F2
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
80 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
128 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
19 A | 9.5 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.38 in
Short Description
7.5 HP, 1800 RPM, Frame Size 213T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101115
Voltage Code
J
Voltage Rating
230 V | 460 V
The 7BEFM3710T delivers tangible business value through a balanced 7.5 HP rating and 1770 r/min speed, which translates to reliable torque for medium-load lines like conveyors and pumps. Its TEFC enclosure protects critical windings from dust and moisture, reducing maintenance interruptions in factory floors. Dual voltage capability (230/460 V) provides flexibility across regional power systems and simplifies stock management. The 213T frame with foot-mounted, horizontal F2 mounting enables straightforward installation on existing bases, while the regreasable bearings and 60-minute duty cycle support long intervals between service events. With a 1.15 service factor and 91.70% efficiency, this motor helps meet energy targets while resisting overload during start-up. Finally, CSA/UR/NEMA standards offer regulatory confidence, making it a reliable choice for OEMs and maintenance teams seeking predictable total cost of ownership.
