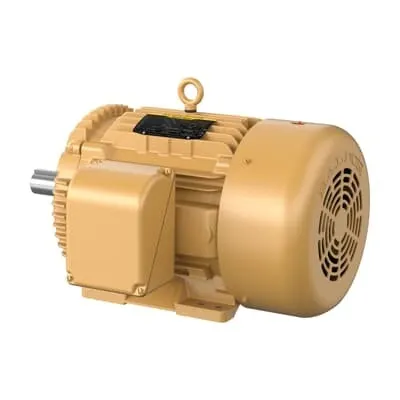

ABB 7BEFM4100T General Purpose Motor - IE3 Premium
Part Number: 7BEFM4100T
Quick Summary
ABB 7BEFM4100T General Purpose Motor delivers reliable three-phase power for demanding industrial equipment such as conveyors, pumps, and fans. This model reduces retrofit risk by using a common 284T frame, dual voltage options (230/460 V), and 0-day stock availability. Many buyers struggle with mismatched frames, inconsistent efficiency, and long lead times; this motor addresses those challenges with TEFC enclosure and standard mounting. Certified to CSA, CSA EEV, and UR, it supports global commissioning while ensuring safe, compliant operation. With IE3 premium efficiency and a service factor of 1.15, it delivers measurable uptime improvements and predictable maintenance costs for OEMs and maintenance teams.
Product Information
Extended Description
7BEFM4100T ABB: General Purpose Motor 15 Hp 230 V (EFM4100T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
15HP,1175RPM,3PH,60HZ,284T,1046M,TE
Ambient Temperature
40 °C
Bearing
6311 | Ball
Bearing NDE
6309 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EFM4100T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
10LYC156: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
284
Frequency (f)
60 Hz
Global Commercial Alias
EFM4100T
Gross Volume
14448.906 in³
Gross Weight
372 lb
Horsepower Rating UL/CSA
15.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
15HP,1175RPM,3PH,60HZ,284T,1046M,TEFC,F2
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 15 HP, 1200 RPM, Frame Size 284T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EFM410
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
284T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F2
NEMA Design Code
A
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
15 Hp
Power Factor
73 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
372 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
42 A | 21 A
Rated Efficiency
91.70 %
Rated Speed
1175 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.88 in
Short Description
15 HP, 1200 RPM, Frame Size 284T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
The 15 HP, 1175 rpm, 60 Hz ABB motor uses a 284T frame and dual voltage 230/460 V to align with existing drive trains and VFDs, reducing wiring changes and spare parts while shortening project timelines. This translates to faster commissioning and lower total cost of ownership for conveyors, pumps, and fans in mid- to high-volume manufacturing environments. The TEFC enclosure protects windings from dust and moisture, enabling reliable operation in dirty workshops and outdoor spaces, which reduces maintenance cycles and simplifies cleaning routines during planned outages. IE3 premium efficiency lowers operating energy costs for continuous-duty applications, while the 1.15 service factor provides tolerance for occasional overloads without compromising reliability in demanding shift patterns. Robust ball bearings (6311) and a forged frame design contribute to longer mean time between failures, reducing unscheduled downtime in OEM and end-user settings. Stocking at multiple warehouses and a 0-day lead time promise minimizes downtime during installs or replacements, while global certifications (CSA, CSA EEV, UR) support compliant deployments across regions. The foot-mounted, horizontal F2 mounting position with a TEFC enclosure ensures straightforward installation and alignment with standard driven equipment, and the 230/460 V dual-voltage capability simplifies integration with existing electrical systems and starter configurations. Compatibility with direct-on-line starts and possible VFD-based speed control makes this motor adaptable to a range of line layouts and process requirements, addressing common objections about rigid motor selections in retrofits.
Get a Quick Quote for a ABB 7BEFM4100T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEFM4100T?
Enquire Now
FAQs
The motor features a foot-mounted, horizontal F2 mounting and a 284T frame. Install on a flat foundation, align with the driven shaft, and secure with standard base bolts. Connect to a 3-phase 230/460 V supply and choose Direct On Line starting or an appropriate VFD if speed control is required. Ensure ambient conditions stay within the 40 °C rating.
This is a 3-phase motor rated for 60 Hz operation, with dual voltage input of 230 V or 460 V. It delivers 15 HP (1175 r/min) on a 284T frame, has an insulation class F, IE3 premium efficiency, service factor 1.15, and rated current of 42 A / 21 A depending on voltage.
Yes. The TEFC enclosure and 284T frame are well-suited for conveyors, pumps, and fans in typical manufacturing environments. It is not explosion-proof, so it should not be used in hazardous areas without proper certification. For speed control, pair with a suitable VFD, and verify load torque remains within the 15 HP rating.
The motor is certified by CSA, CSA EEV, and UR, supporting compliant deployment across regions. It uses United States origin components, with stock presence at multiple warehouses to ease international sourcing and installation.
IE3 premium efficiency lowers energy costs on continuous duty, while a 1.15 service factor provides overload tolerance. Durable 6311 ball bearings reduce premature wear, and TEFC protection minimizes internal contamination. With 0-day lead time stock, downtime during replacements is minimized, contributing to faster project ROI and predictable maintenance cycles.
