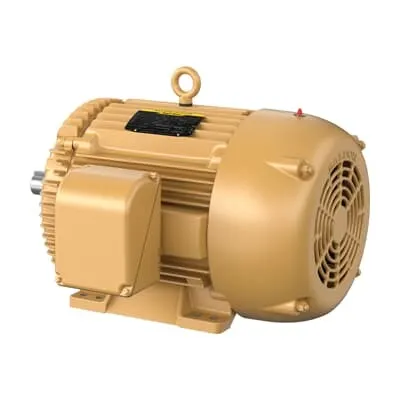

ABB 7BEFM4114T General Purpose Motor - CSA/UR
Part Number: 7BEFM4114T
Quick Summary
ABB 7BEFM4114T General Purpose Motor is a robust three-phase motor designed for industrial duty in pumps, fans, and conveyors. This 50 HP unit operates at 230 V or 460 V, 60 Hz, with a TEFC enclosure and a foot-mounted base, simplifying installation in standard plant layouts. If you’ve faced mis-match issues or long lead times, this model’s 326TS frame and NEMA design A orientation provide reliable fitment across common equipment. Certifications include CSA, CSA EEV, and UR, supporting North American compliance requirements. With premium efficiency and durable bearings, you gain lower operating costs and predictable performance, delivering dependable service and minimized maintenance within your production line.
Product Information
Extended Description
7BEFM4114T ABB: General Purpose Motor 50 Hp 230 V (EFM4114T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
50HP,3540RPM,3PH,60HZ,326TS,1252M,T
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6311 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EFM4114T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
A
Dimension Diagram
12LYE347: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
326
Frequency (f)
60 Hz
Global Commercial Alias
EFM4114T
Gross Volume
22524.75 in³
Gross Weight
582.001 lb
Horsepower Rating UL/CSA
50.000 Hp
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
50HP,3540RPM,3PH,60HZ,326TS,1252M,TEFC,F
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 50 HP, 3600 RPM, Frame Size 326Ts, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EFM41
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
326TS
Motor Frame Suffix
TS
Mounting Orientation
Horizontal
Mounting Position
F2
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
50 Hp
Power Factor
90 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
35.5 in
Product Net Height
23.5 in
Product Net Weight
582.001 lb
Product Net Width
27 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
112 A | 56 A
Rated Efficiency
93 %
Rated Speed
3540 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.88 in
Short Description
50 HP, 3600 RPM, Frame Size 326Ts, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
The TEFC enclosure and 326TS frame protect the rotor and bearings from dust and moisture, reducing downtime and maintenance costs in harsh environments, enabling reliable operation on conveyors and pumps. This combination also supports easy replacement and standard mounting in existing equipment footprints. Dual voltage (230/460 V) and 60 Hz flexibility allows quick electrical integration without extra transformers, speeding installation and reducing panel space needs for general purpose motors used in material handling, fans, and pumps. With a 2-pole design delivering 3540 r/min (3600 r/min synchronous), you can achieve stable speed under load, improving process control for drives and belt systems. IE3 premium efficiency reduces energy consumption in continuous operation, lowering operating costs and supporting sustainability goals. Bearings (6312) and insulation class F enhance thermal performance and life expectancy, essential for hot industrial plants and long-running duty. NEMA design A alignment, horizontal mounting, and foot-mounted configuration simplify maintenance and interchangeability across multiple lines, cutting downtime during maintenance windows and facilitating scalable plant upgrades.
