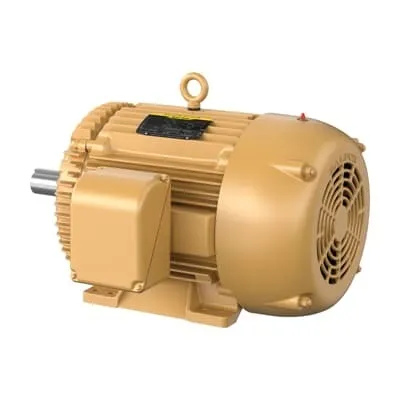

ABB 7BEFM4115T General Purpose Motor - 50HP, IE3 Premium
Part Number: 7BEFM4115T
Quick Summary
ABB 7BEFM4115T is a general purpose three-phase motor for continuous duty in pumps, fans, and conveyors. Stock shortages and long lead times can disrupt production; this model is stocked across multiple warehouses with near-zero lead times to support uptime. The motor carries CSA, CSA EEV, and UR safety certifications and meets IE3 premium efficiency, helping meet energy codes and lower lifecycle costs. Designed for 50 HP operation with a 326T frame and TEFC enclosure, 230/460 V and 60 Hz, it enables quick replacements and predictable lifecycle costs for industrial equipment operators.
Product Information
Extended Description
7BEFM4115T ABB: General Purpose Motor 50 Hp 230 V (EFM4115T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
50HP,1775RPM,3PH,60HZ,326T,1272M,TE
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6311 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EFM4115T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
12LYC056: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
326
Frequency (f)
60 Hz
Global Commercial Alias
EFM4115T
Gross Volume
18748.226 in³
Gross Weight
640 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
50HP,1775RPM,3PH,60HZ,326T,1272M,TEFC,F2
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 50 HP, 1800 RPM, Frame Size 326T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EFM411
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
326T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F2
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
50 Hp
Power Factor
85 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
640 lb
Product Net Width
25.688 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
116 A | 58 A
Rated Efficiency
94.50 %
Rated Speed
1775 r/min
Replaced Product ID (OLD)
7B12C056Z279G2
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
2.13 in
Short Description
50 HP, 1800 RPM, Frame Size 326T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature: 50 HP output with 1.15 service factor. Business Impact: Sustained performance under peak load minimizes risk of stall and unplanned downtime. Application: Ideal for continuous-duty pumps and belt conveyors in manufacturing settings. Feature: TEFC enclosure, 326T frame, and foot-mounted design. Business Impact: Provides robust protection in dirty or dusty environments while simplifying installation and service access. Application: Fits standard plant footprints and enables quick retrofits in existing lines. Feature: IE3 premium efficiency with dual voltage 230/460 V and 60 Hz. Business Impact: Reduces energy costs, lowers cooling requirements, and supports compliance with energy standards. Application: Energy-intensive processes in HVAC, pumps, and fans. Feature: Certification suite (CSA, CSA EEV, UR). Business Impact: Eases regulatory approvals and accelerates procurement for US/Canada and international projects. Application: OEM equipment builds and aftermarket spares requiring stringent safety validation. Feature: Stock availability and fast lead times (0 day lead time). Business Impact: Improves uptime, shortens project schedules, and minimizes inventory risk. Application: Plant modernization, retrofits, and cross-site deployments. Feature: Mechanical robustness (Shaft 2.13 in, Bearing 6312 Ball, Insulation Class F). Business Impact: Longer service life, reduced maintenance cycles, and better reliability in challenging environments. Application: Heavy-duty transfers, mixers, and process equipment in demanding facilities.
