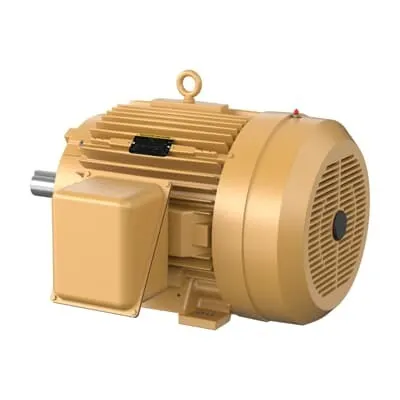

ABB 7BEFM4316T General Purpose Motor - NEMA Premium
Part Number: 7BEFM4316T
Quick Summary
ABB 7BEFM4316T General Purpose Motor is a robust 75 HP, three-phase motor designed for continuous-duty drives in pumps, fans, conveyors, and processing equipment. It operates at 230/460 V with a TEFC enclosure, delivering dependable performance in demanding industrial environments. When uptime and energy costs matter, mismatched motors drive unnecessary downtime and expense. This model meets NEMA Premium efficiency standards and carries UR safety recognition, ensuring compliance across North American facilities. With a 365T frame and foot-mounted installation, it integrates smoothly into OEM lines and retrofit projects. Stocked across multiple warehouses, it supports short lead times, helping engineers and procurement teams meet tight project schedules without sacrificing reliability.
Product Information
Extended Description
7BEFM4316T ABB: General Purpose Motor 75 Hp 230 V (EFM4316T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
75HP,1780RPM,3PH,60HZ,365T,A36070M,
Ambient Temperature
40 °C
Bearing
6313, Ball
Bearing NDE
6313
Brake Present
No
Brand / Label
Baldor-Reliance®
Catalog Number
EFM4316T
Certification Agency
CCSAUSEEV | NEMA_PREMIUM | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
A36C-0000000053
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
365
Frequency (f)
60 Hz
Global Commercial Alias
EFM4316T
Gross Volume
33833.008 in³
Gross Weight
935 lb
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
75HP,1780RPM,3PH,60HZ,365T,A36070M,TEFC
Made To Order
No
Maximum Speed
2700 r/min
Medium Description
General Purpose 3PH Enclosed, 75 HP, 1800 RPM, Frame Size 365T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EFM431
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
365T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F2
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
single_speed
Order Multiple
1 piece
Output Power
75 Hp
Power Factor
86 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
40.625 in
Product Net Height
25.625 in
Product Net Weight
935 lb
Product Net Width
32.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
172 A | 86 A
Rated Efficiency
95.40 %
Rated Speed
1780 r/min
Replaced Product ID (OLD)
7BA36-3394-4076
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
2.38 in
Short Description
75 HP, 1800 RPM, Frame Size 365T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct on line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
230 V | 460 V
Feature: Premium efficiency (95.40%) and 1.15 service factor. Business Impact: Reduces energy consumption and provides a comfortable overload margin for pushing loads, lowering total cost of ownership. Application: Ideal for continuous-duty fans, pumps, and conveyors in manufacturing lines. Feature: TEFC enclosure with iron frame. Business Impact: Enclosures protect critical windings and bearings in dirty or humid environments, extending motor life. Application: Water treatment, chemical processing, and outdoor installations where dust and moisture are present. Feature: Dual-voltage capability (230 V / 460 V) and 60 Hz operation. Business Impact: Simplifies electrical sourcing and reduces stock needs; allows seamless retrofits across existing plant equipment. Application: Replacing legacy motors in mixed-voltage facilities and equipment upgrades. Feature: Frame 365T, foot-mounted, horizontal mounting, and F2 orientation. Business Impact: Eases installation and alignment with minimal downtime, improving maintenance planning. Application: Conveyor drives and pump assemblies where space constraints require straightforward mounting. Feature: NEMA Design B, Direct on Line start, 3-phase, 4-pole. Business Impact: Reliable start-up with low inrush management and predictable torque for load- matched processes. Application: Industrial fans and pumps handling continuous flow at 60 Hz. Feature: Insulation class F, shaft diameter 2.38 in, and 75 HP rating. Business Impact: Higher temperature tolerance and robust mechanical interface reduce failure risk and maintenance costs. Application: Heavy-load conveyors and processing equipment with demanding duty cycles. Feature: 365T, 1780 r/min (syn 1800 r/min) with 365T frame and TEFC. Business Impact: Standardized footprint supports quick swaps and long-term spare-part compatibility. Application: OEM line replacements and upgrades where common parts availability matters. Feature: Broad regional stocking (US and internationally). Business Impact: Short lead times and faster project delivery reduce downtime and project shut-down risk. Application: New installations, plant modernization, and retrofit projects across North America and beyond.
