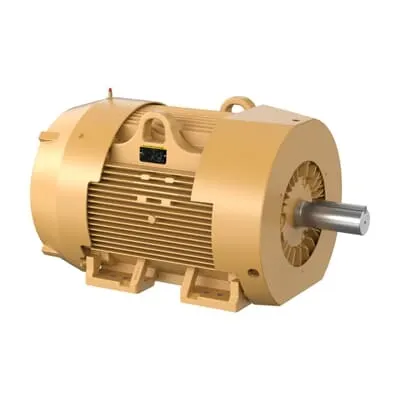

ABB EFM4409T-4 General Purpose Motor - Premium Efficiency
Part Number: 7BEFM4409T-4
Quick Summary
EFM4409T-4 General Purpose Motor delivers 100 HP at 460 V for standard industrial drives like pumps, fans, and conveyors. When uptime and energy efficiency matter, a robust motor that fits common frames and mounts minimizes downtime and spare parts while maximizing process reliability. This ABB offering carries CSA EEV and CCSA US certifications and adheres to NEMA standards, with a TEFC enclosure suitable for demanding environments. Designed for continuous operation across manufacturing floors, the 60 Hz rating and 1190 r/min speed provide predictable performance and easy cross-reference in your legacy motor library. With Premium Efficiency and a proven mechanical design, you gain lower energy costs and longer service life without compromising compatibility.
Product Information
Extended Description
7BEFM4409T-4 ABB: General Purpose Motor 100 Hp 460 V (EFM4409T-4)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
100HP,1190RPM,3PH,60HZ,444T,TEFC,F2
Ambient Temperature
40 °C
Bearing
0.000
Bearing NDE
0.000
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EFM4409T-4
Certification Agency
CCSA US | CSA EEV
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
617427-007: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
444
Frequency (f)
60 Hz
Global Commercial Alias
EFM4409T-4
Gross Volume
105840 in³
Gross Weight
737.088 kg
Horsepower Rating UL/CSA
100.000 Hp
IDEA Granular Category Code (IGCC)
1325 >> General purpose motor AC
Insulation Class
F
Invoice Description
100HP,1190RPM,3PH,60HZ,444T,TEFC,F2
Made To Order
No
Medium Description
General Purpose 3PH Enclosed, 100 HP, 1200 RPM, Frame Size 444T, Standard Mounting, 3 Phase, TEFC Enclosure, 460 V, 60 Hz (EFM4409T-
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
444T
Motor Frame Suffix
T
Mounting Orientation
Horizontal
Mounting Position
F2
NEMA Design Code
B
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
100 Hp
Power Factor
82 %
Product Name
General Purpose 3PH Enclosed
Product Net Depth / Length
48 in
Product Net Height
52.5 in
Product Net Weight
737.088 kg
Product Net Width
42 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
119 A
Rated Efficiency
95 %
Rated Speed
1190 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
3.38 in
Short Description
100 HP, 1200 RPM, Frame Size 444T, Standard, 3 PH, TEFC, 460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
UNSPSC
26101112
Voltage Rating
460 V
The 444T frame size and foot-mounted configuration reduce installation time and bolt-on complexity, delivering a straightforward retrofit or new-build integration with minimal downtime in conveyors and pumps. The TEFC enclosure protects critical windings in dusty or humid environments, extending mean time between maintenance and lowering replacement costs in food processing, water treatment, and general manufacturing. Premium Efficiency (NEMA) translates to measurable energy savings over standard IE motors, delivering a compelling return on investment for continuous-duty applications in HVAC, process lines, and material handling. CSA EEV and CCSA US certifications provide regulatory assurance for North American facilities, simplifying audits and supplier qualification in regulated industries. With a 60 Hz, 460 V three-phase supply and a rated current of 119 A, the motor starts reliably under load with a service factor of 1.15, supporting robust performance without over-sizing electrical infrastructure. Stock availability at major warehouses and a 100 HP rating underpins fast procurement, reducing downtime when replacement is needed in maintenance windows. Industry context shows that a Premium Efficiency 100 HP motor in 444T frame significantly lowers energy bills while maintaining mechanical compatibility with standard pump, fan, and conveyor assemblies, making it a practical choice for OEMs and end users alike.
