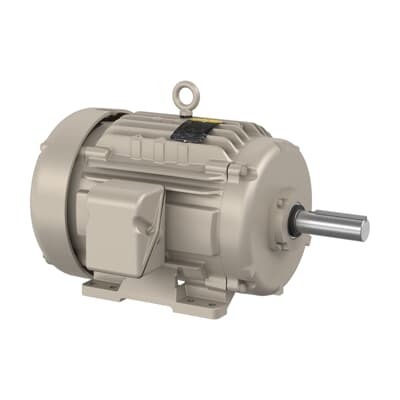

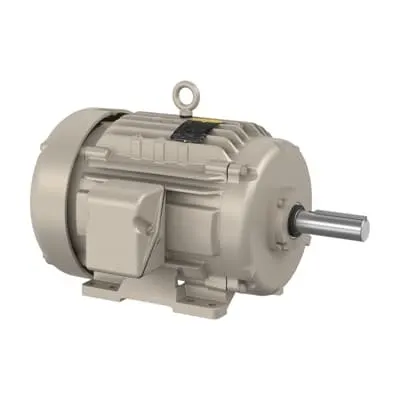

ABB 7BEGDM2334T Farm Duty Motor - TEFC, 20HP, 3PH, 60Hz
Part Number: 7BEGDM2334T
Quick Summary
ABB 7BEGDM2334T Farm Duty Motor is a robust 20 HP, three-phase drive designed to power grain-dryer centrifugal fans in agricultural facilities. It combines a compact footprint with a TEFC enclosure and a 256TZ frame for dependable performance in demanding farm environments. The motor benefits from ready stock across multiple warehouses and a 0-day lead time, reducing downtime during critical harvest windows. With certifications including CSA, CSA EEV, and UR, plus a Premium Efficiency rating, it meets stringent safety and energy standards while lowering operating costs. For continuous farm-duty applications, installation is straightforward and supports direct-on-line starting, delivering predictable ROI for equipment upgrades and plant modernization.
Product Information
Extended Description
7BEGDM2334T ABB: Farm Duty Motor 20 Hp 230 V (EGDM2334T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,1770RPM,3PH,60HZ,256TZ,0960M,T
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6208 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EGDM2334T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
09LYL721: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
EGDM2334T
Gross Volume
14448.906 in³
Gross Weight
146.51 kg
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
20HP,1770RPM,3PH,60HZ,256TZ,0960M,TEFC,F
Made To Order
No
Medium Description
Grain Dryer Centrifugal Fan, 20 HP, 1800 RPM, Frame Size 256Tz, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EGDM23
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256TZ
Motor Frame Suffix
TZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
83 %
Product Name
Grain Dryer Centrifugal Fan
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
146.51 kg
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
48 A | 24 A
Rated Efficiency
93 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.63 in
Short Description
20 HP, 1800 RPM, Frame Size 256Tz, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 20 HP, 1770 r/min, 60 Hz three-phase motor delivers consistent torque for grain-dryer centrifugal fans, minimizing start-up surges and maximizing process stability in harvest-season operations. This translates to higher throughput and reduced risk of dryer jams in agricultural processing environments. Application: grain-dryer centrifugal fan drives in grain handling facilities. Feature → Business Impact → Application: TEFC enclosure with a 256TZ frame provides dust and debris resistance in dusty barn environments, extending motor life and reducing maintenance intervals. Application: farm installations where ambient contamination is a concern. Feature → Business Impact → Application: Premium efficiency (93%) and PF of 83% lower energy bills and heat, improving overall plant energy metrics. Application: continuous-duty grain-dryer systems with long operating hours. Feature → Business Impact → Application: NEMA Design Code A, service factor 1.15, and Direct On Line starting offer headroom and straightforward installation, enabling rapid deployment and lower total cost of ownership. Application: retrofit projects and new farm automation lines. Feature → Business Impact → Application: Foot-mounted, horizontal mounting (F1) plus shaft diameter 1.63 in simplify alignment and replacement in existing frames, reducing commissioning time and spare-part planning. Application: retrofit of legacy 256TZ machines and standard grain-dryer fans.
Get a Quick Quote for a ABB 7BEGDM2334T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEGDM2334T?
Enquire Now
FAQs
Yes. The motor is rated for 230V or 460V operation, 3-phase, 60 Hz, and uses a direct-on-line starting method. Its 256TZ frame and foot-mounted, horizontal mounting simplify installation in grain-dryer systems, and it fits standard industrial electrical panels used in agricultural facilities.
Key specs include 20 HP output, rated current 48 A | 24 A, rated speed 1770 r/min, synchronous speed 1800 r/min, and a 60 Hz frequency. It operates with a voltage rating of 230 V / 460 V and a service factor of 1.15, delivering reliable torque for continuous operation.
Yes. The motor is designed for continuous duty, with a robust TEFC enclosure and a 60-minute duty rating. Its NEMA Design Code A construction and premium efficiency help maintain consistent performance and lower energy costs in ongoing grain-dryer fan applications.
The unit carries CSA, CSA EEV, and UR certifications, aligning with U.S. safety and performance standards. Combined with NEMA design conventions and a 40°C ambient rating, this ensures safe, compliant operation in industrial farm facilities.
Maintenance is reduced by TEFC sealing and robust bearings (6309 | Ball). With stock available across multiple warehouses and 0-day lead times, downtime costs are minimized. ROI is boosted by 93% efficiency, a 1.15 service factor, and energy savings from premium efficiency in continuous grain-dryer service.
