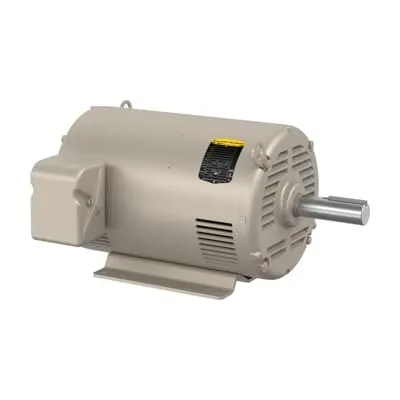

ABB 7BEGDM2513T Farm Duty Motor - Premium Efficiency
Part Number: 7BEGDM2513T
Quick Summary
ABB 7BEGDM2513T Farm Duty Motor is a 15 HP, 3-phase motor for agricultural and grain-drying applications. Operators often struggle with downtime in outdoor, dusty environments; this motor is built to endure. It carries CSA, CSA EEV, and UR certifications for North American compliance, while delivering premium efficiency. Stocked at multiple warehouses with zero-day lead times helps you meet tight project deadlines and reduce holding costs. Designed for 230/460 V operation, OPSB enclosure, and 60 Hz, it fits standard farm equipment without custom rework. This combination of rugged construction, high-efficiency rating, and broad stocking translates into lower energy bills and faster ROI.
Product Information
Extended Description
7BEGDM2513T ABB: Farm Duty Motor 15 Hp 230 V (EGDM2513T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
15HP,1765RPM,3PH,60HZ,254TZ,3948M,O
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6208 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EGDM2513T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
39LYN074: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
254
Frequency (f)
60 Hz
Global Commercial Alias
EGDM2513T
Gross Volume
11571 in³
Gross Weight
107.955 kg
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
15HP,1765RPM,3PH,60HZ,254TZ,3948M,OPSB,F
Made To Order
No
Medium Description
Grain Dryer Centrifugal Fan, 15 HP, 1800 RPM, Frame Size 254Tz, Standard Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (EGDM25
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
254TZ
Motor Frame Suffix
TZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
15 Hp
Power Factor
83 %
Product Name
Grain Dryer Centrifugal Fan
Product Net Depth / Length
29 in
Product Net Height
19 in
Product Net Weight
107.955 kg
Product Net Width
21 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
36.4 A | 18.2 A
Rated Efficiency
93 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.63 in
Short Description
15 HP, 1800 RPM, Frame Size 254Tz, Standard, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: Premium Efficiency reflects a rated efficiency of 93% and a power factor of 83%, delivering meaningful energy savings on continuous farm duty cycles. This reduces operating costs on grain dryers and fans, with measurable ROI over the motor’s lifetime. Application: 15 HP, 1765 RPM, 3PH, 60 Hz operation supports reliable performance in automated farm equipment. Feature → Business Impact → Application: OPSB enclosure and frame size 254TZ provide robust protection in dusty outdoor environments, reducing maintenance and extending service life. Application: Grain handling and grain drying systems where enclosure integrity matters. Feature → Business Impact → Application: Foot-mounted, direct-on-line starting with 60 Hz supply simplifies installation and minimizes startup complexity, shortening commissioning time. Application: Integration with existing control panels and standard plant power. Feature → Business Impact → Application: Wide stock availability (US, China, multiple warehouses) with 0-day lead times improves project scheduling and procurement resilience. Application: Rapid deployment for agricultural automation projects. Feature → Business Impact → Application: Bearing configuration (6309 and 6208 ball) and insulation class F support long-term reliability in warm environments up to 40 °C. Application: Outdoor equipment and farm facilities where heat and dust are constant considerations. Feature → Business Impact → Application: Certifications (CSA, CSA EEV, UR) ensure regulatory compliance for North American markets, reducing certification delays. Application: Safe installation on Grain Dryers, Fans, and Farm Equipment under strict safety standards.
Get a Quick Quote for a ABB 7BEGDM2513T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEGDM2513T?
Enquire Now
FAQs
This is a 3-phase, 60 Hz farm-duty motor with a 254TZ frame that is foot-mounted and designed for OPSB enclosures. It supports 230/460 V operation and can be wired for direct-on-line starting. With a 15 HP rating and rated currents of 36.4 A / 18.2 A, it integrates easily with standard controls and panel layouts, minimizing rework and commissioning effort.
Key specs include 15 HP output, rated speed 1770 r/min (Synchronous 1800 r/min), 3-phase 60 Hz operation, 230/460 V voltage rating, PF 83%, and efficiency 93%. Service Factor is 1.15, with Direct On Line starting. These metrics translate to reliable startup, efficient operation, and predictable torque for load tasks like grain handling and drying.
Yes. The motor is designed as a Farm Duty (continuous) motor with OPSB enclosure, 15 HP at 1765–1770 RPM, and 230/460 V capability. Its rugged steel frame, standard mounting (foot-mounted), and 60 Hz rating make it well-suited for grain dryers, fans, and other farm automation equipment exposed to outdoor conditions and dust.
The motor carries CSA, CSA EEV, and UR certifications, ensuring compliance with North American safety and electrical standards. These approvals help you meet regulatory requirements for agricultural equipment and simplify procurement processes for projects in the US and Canada.
With premium efficiency, a PF of 83%, and robust bearings, the motor reduces energy consumption and maintenance cost over its life. The 0-day lead time stocking and multiple warehouse locations reduce downtime and procurement risk, accelerating project delivery and delivering faster ROI on farm automation upgrades.
