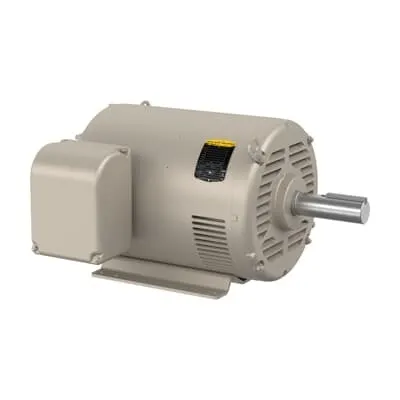

ABB 7BEGDM2531T Farm Duty Motor - IE3 60Hz OPSB
Part Number: 7BEGDM2531T
Quick Summary
Farm Duty Motor 7BEGDM2531T is a rugged 25 HP electric motor designed for demanding farm and grain-drying applications, delivering reliable torque at 230/460 V and 60 Hz. For engineers facing uptime, energy costs, and compatibility challenges, this motor provides a proven blend of performance and versatility. The design carries critical certifications and features to support safe, compliant operation in agricultural environments, including IE3 premium efficiency, NEMA-type enclosure, and CSA/UR approvals. With a 284TZ frame and direct-on-line starting, it integrates smoothly into existing plant layouts while reducing energy consumption and installation complexity for continuous-duty operations.
Product Information
Extended Description
7BEGDM2531T ABB: Farm Duty Motor 25 Hp 230 V (EGDM2531T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
25HP,1770RPM,3PH,60HZ,284TZ,4050M,O
Ambient Temperature
40 °C
Bearing
6311, Ball
Bearing NDE
6309
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EGDM2531T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
40LYE235: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
284
Frequency (f)
60 Hz
Global Commercial Alias
EGDM2531T
Gross Volume
16673.25 inÂł
Gross Weight
328 lb
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
25HP,1770RPM,3PH,60HZ,284TZ,4050M,OPSB,F
Made To Order
No
Medium Description
Grain Dryer Centrifugal Fan, 25 HP, 1800 RPM, Frame Size 284Tz, Standard Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (EGDM25
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
284TZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
25 Hp
Power Factor
82 %
Product Name
Grain Dryer Centrifugal Fan
Product Net Depth / Length
33 in
Product Net Height
21.5 in
Product Net Weight
328 lb
Product Net Width
23.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
60 A | 30 A
Rated Efficiency
93.60 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.88 in
Short Description
25 HP, 1800 RPM, Frame Size 284Tz, Standard, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 25 HP rating paired with 1770 rpm on 230/460 V, 60 Hz, 3-phase power delivers strong, dependable torque for grain dryer centrifugal fans and other farm equipment, while IE3 premium efficiency lowers energy use and operating costs over the motor’s life. This high efficiency supports tight energy budgets in large-scale agricultural facilities and reduces heat load in motor rooms, enabling cooler operation in warm climates. Feature → Business Impact → Application: Enclosure OPSB and 284TZ frame with foot-mounted, horizontal mounting simplifies installation in tight plant floors and standard bases, shrinking commissioning time and enabling retrofits without customized brackets. Feature → Business Impact → Application: Direct On Line starting and NEMA design code A design provide robust startup performance and reliability under continuous duty, reducing maintenance cycles and downtime for grain-dryer systems and process fans. Feature → Business Impact → Application: Insulation class F and bearing specs (6311 ball) extend motor life in ambient temperatures up to 40 °C, supporting long-term availability in demanding environments. Feature → Business Impact → Application: Comprehensive certifications (CSA, CSA EEV, UR) and standards compliance enhance regulatory confidence and allow quicker procurement for food-processing and farming operations, while stock at multiple warehouses with 0-day lead time improves overall procurement velocity.
Get a Quick Quote for a ABB 7BEGDM2531T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEGDM2531T?
Enquire Now
FAQs
This motor is designed for a 284TZ frame with foot-mounted, horizontal mounting (F1). It operates on 230 V or 460 V across 60 Hz, three-phase power, enabling simple swap-ins from similar Baldor/ABB products and straightforward integration into existing basements or equipment pads.
Key specs include 25 HP output at 1770 r/min, 60 Hz operation, 230/460 V, 3-phase, IE3 efficiency, and a rated current around 60 A (nominal) with a service factor of 1.15. Starting method is Direct On Line, suitable for reliable start-up in demanding farm environments.
Yes. With a 25 HP rating, 1770 rpm, and a robust OPSB enclosure, it is well-suited for grain-dryer centrifugal fans and other continuous-duty agricultural equipment. The 284TZ frame and 60 Hz performance align with common grain-dryer specifications and installation footprints.
The motor carries CSA, CSA EEV, and UR certifications and adheres to NEMA standards. It’s rated IE3 for premium efficiency and specified insulation class F, supporting regulatory compliance in many agricultural and processing facilities.
Warranty terms indicate warranty returns are required for warranted products. The motor is stocked at multiple warehouses with 0-day lead time, allowing faster procurement and reduced downtime. Energy efficiency (IE3) and robust construction contribute to lower operating costs and longer service life, improving ROI for continuous farm-duty applications.
