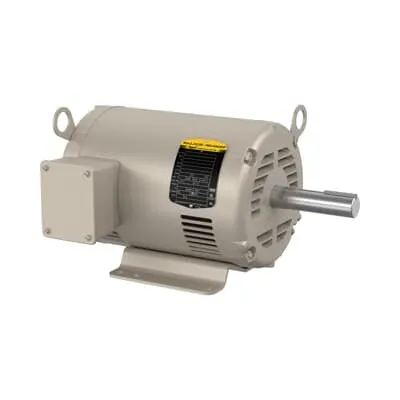

ABB 7BEGDM3218T Farm Duty Motor - IE3 Premium Efficiency
Part Number: 7BEGDM3218T
Quick Summary
Farm Duty Motor 5 HP delivers reliable power for grain drying and agricultural processing applications. This ABB EGDM3218T model combines durable construction with precise performance to minimize downtime and energy waste. It is built for continuous operation at 60 Hz, 208-230/460 V, and a 184TZ frame, delivering consistent torque and smooth starts in harsh environments. By addressing common pain points such as overheating, misalignment, and restricted service access, this motor supports maintenance teams in maximizing uptime. With CSA and UR certifications and NEMA design compliance, it also simplifies regulatory reporting and quality assurance. The design offers a 0-day lead time with broad warehouse stock, enabling rapid fulfillment for plant expansions and seasonal demand.
Product Information
Extended Description
7BEGDM3218T ABB: Farm Duty Motor 5 Hp 208 V (EGDM3218T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1750RPM,3PH,60HZ,184TZ,3640M,OP
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EGDM3218T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYQ485: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
EGDM3218T
Gross Volume
5274.135 inÂł
Gross Weight
92 lb
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
5HP,1750RPM,3PH,60HZ,184TZ,3640M,OPSB,F1
Made To Order
No
Medium Description
Grain Dryer Centrifugal Fan, 5 HP, 1800 RPM, Frame Size 184Tz, Standard Mounting, 3 Phase, OPSB Enclosure, 208-230/460 V, 60 Hz (EGD
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TZ
Motor Frame Suffix
TZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
80 %
Product Name
Grain Dryer Centrifugal Fan
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
92 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
14 A | 13.2 A | 6.6 A
Rated Efficiency
89.50 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 184Tz, Standard, 3 PH, OPSB, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
208 V | 230 V
Feature → Business Impact → Application: The 5 HP, 1750 r/min rating at 60 Hz provides steady torque for demanding grain dryer fans and agricultural conveyors, reducing startup spikes and improving process stability in grain handling workflows. This translates to lower mechanical wear, fewer belt tensions, and improved overall equipment effectiveness (OEE) on farm equipment. In practice, operators gain predictable performance during peak harvest periods and can achieve more consistent grain drying cycles without overtaxing drives. Feature → Business Impact → Application: IE3 premium efficiency reduces energy bills and cooling load, delivering measurable lifetime cost savings for continuous-duty motors in barns and processing facilities. This supports sustainability goals while meeting industry benchmarks for energy use in farm automation. Feature → Business Impact → Application: OPSB enclosure combined with a rugged 184TZ frame and foot-mounted base enhances installation flexibility and field serviceability, enabling simple retrofits on existing lines and straightforward alignment during commissioning in tight plant spaces. Feature → Business Impact → Application: The dual-voltage 208-230/460 V, 3-phase, 60 Hz supply compatibility simplifies integration with existing power networks, minimizing re-wiring and enabling quick phase conversion or microgrid compatibility in farm facilities. Feature → Business Impact → Application: NEMA design B, 1.15 service factor, and F insulation class improve reliability under continuous duty with varying loads, supporting long-term operation in grain dryers and hopper fans. Feature → Business Impact → Application: Stocked-at warehouses and 0-day lead time shorten procurement cycles for new installations or spare parts, accelerating project timelines in seasonal farming operations and expansion projects.
