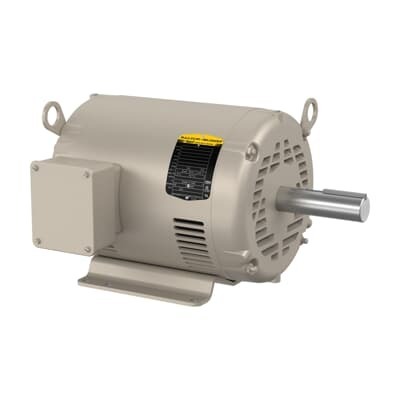

ABB 7BEGDM3313T Farm Duty Motor - IE3 Premium Efficiency
Part Number: 7BEGDM3313T
Quick Summary
ABB 7BEGDM3313T is a farm-duty motor delivering 10 HP for rugged agricultural and grain-dryer applications. It tackles uptime and compatibility challenges by operating from 208-230/460 V at 60 Hz with a robust OPSB enclosure and foot-mounted frame. Key certifications include IE3 premium efficiency, CSA/UR listings, and NEMA design compliance, ensuring regulatory alignment and long service life in harsh farm environments. Stocked across multiple warehouses with fast lead times, this model helps OEMs reduce downtime and inventory costs while delivering predictable performance. For service teams and end users, procurement is simpler, lifecycle costs are lower, and power delivery remains dependable for grain-handling and processing lines.
Product Information
Extended Description
7BEGDM3313T ABB: Farm Duty Motor 10 Hp 208 V (EGDM3313T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1770RPM,3PH,60HZ,215TZ,3742M,O
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EGDM3313T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYN688: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
EGDM3313T
Gross Volume
7192.91 in³
Gross Weight
132 lb
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
10HP,1770RPM,3PH,60HZ,215TZ,3742M,OPSB,F
Made To Order
No
Medium Description
Grain Dryer Centrifugal Fan, 10 HP, 1800 RPM, Frame Size 215Tz, Standard Mounting, 3 Phase, OPSB Enclosure, 208-230/460 V, 60 Hz (EG
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215TZ
Motor Frame Suffix
TZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
82 %
Product Name
Grain Dryer Centrifugal Fan
Product Net Depth / Length
26.625 in
Product Net Height
16.25 in
Product Net Weight
132 lb
Product Net Width
16.625 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
26 A | 25 A | 12.5 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Short Description
10 HP, 1800 RPM, Frame Size 215Tz, Standard, 3 PH, OPSB, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
208 V | 230 V
Feature: 10 HP, 1770 r/min, 208-230/460 V, 3-phase, 4-pole with OPSB enclosure. Business Impact: Delivers reliable torque and steady operation in continuous-duty farm environments, reducing startup surprises and maintenance spikes. Application: Ideal for grain-dryer fans, conveyors, and agricultural processing lines where consistent load handling is essential. Feature: IE3 Premium Efficiency. Business Impact: Lowers energy consumption and heat production, cutting operating costs over the motor’s life. Application: Suitable for high-static applications such as fans and pumps in grain handling and milling facilities. Feature: OPSB Enclosure and Foot-Mounted Frame (215TZ). Business Impact: Provides robust protection against dust, humidity, and wash-down conditions while enabling fast, bolt-down installation. Application: Outdoor or semi-enclosed agricultural environments and farm equipment assemblies. Feature: Direct On Line Starting, 3-Phase, 60 Hz, 4-Pole. Business Impact: Simplifies control wiring and reduces startup delay, enhancing overall equipment availability. Application: Grain dryer centrifugal fans and other farm-duty machinery requiring straightforward, high-torque at startup. Feature: Specifications and Build (Shaft 1.38 in, Bearing 6307 Ball, 132 lb, Frame 215TZ). Business Impact: Improves mechanical reliability and ease of maintenance with standardized components. Application: OEMs favor for retrofit projects and new equipment where common spare parts and service practices apply. Feature: Certifications and Compliance (CSA, UR, NEMA B). Business Impact: Ensures regulatory alignment and safe operation in North American systems. Application: OEM quotes, compliance documentation, and audit-ready installations in grain processing plants.
