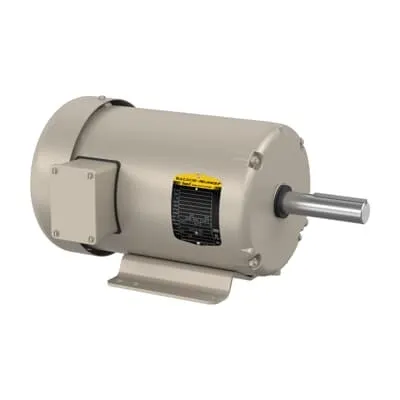

ABB 7BEGDM3615T Farm Duty Motor - IE3 Premium
Part Number: 7BEGDM3615T
Quick Summary
ABB 7BEGDM3615T Farm Duty Motor powers grain drying fans with 5 HP, 208 V, 3-phase reliability. Engineers often face downtime from long lead times, mismatched frames, and supply chain gaps; this motor ships stock-ready from multiple warehouses. Certified for CSA, CSA EEV, and UR listings, with a TEFC enclosure and premium IE3 efficiency, it combines safety, performance, and energy savings. This combination supports faster project timelines and lower lifecycle costs, especially in agricultural facilities and processing lines.
Product Information
Extended Description
7BEGDM3615T ABB: Farm Duty Motor 5 Hp 208 V (EGDM3615T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1750RPM,3PH,60HZ,184TZ,3642M,TE
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6205 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EGDM3615T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
36LYQ180: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
EGDM3615T
Gross Volume
3590.443 in³
Gross Weight
95 lb
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
5HP,1750RPM,3PH,60HZ,184TZ,3642M,TEFC,F1
Made To Order
No
Medium Description
Grain Dryer Centrifugal Fan, 5 HP, 1800 RPM, Frame Size 184Tz, Standard Mounting, 3 Phase, TEFC Enclosure, 208-230/460 V, 60 Hz (EGD
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TZ
Motor Frame Suffix
TZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
78 %
Product Name
Grain Dryer Centrifugal Fan
Product Net Depth / Length
22.875 in
Product Net Height
12.813 in
Product Net Weight
95 lb
Product Net Width
12.25 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13.9 A | 13.4 A | 6.7 A
Rated Efficiency
89.50 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 184Tz, Standard, 3 PH, TEFC, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
208 V | 230 V
TEFC enclosure and 184TZ frame deliver protection in dusty grain-drying environments, improving uptime and reducing maintenance costs. The motor delivers 5 HP at 60 Hz with 208-230/460 V operation, providing consistent torque and reliable startup for belt-driven fans and blowers, with a service factor of 1.15 that guards against overload in peak loads. The IE3 premium efficiency rating lowers energy consumption on continuous-duty operations, translating to measurable operating cost savings over the motor’s life. The foot-mounted, horizontal mounting and standard drive-end flange simplify installation and maintenance across facilities, while direct-on-line starting minimizes control hardware requirements. Built to NEMA design B with insulation class F and a 40 °C ambient tolerance, it remains resilient in farm settings. Stocked at multiple warehouses, it supports faster procurement for project pipelines.
