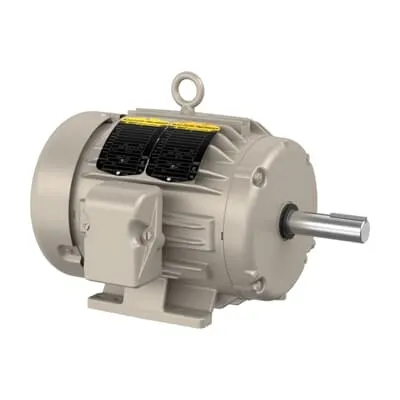

ABB 7BEGDM3665T Farm Duty Motor - IE3 TEFC 5HP
Part Number: 7BEGDM3665T
Quick Summary
ABB 7BEGDM3665T Farm Duty motor delivers 5 HP for agricultural equipment and grain handling. This model helps reduce downtime and operating costs by combining robust design with fast, reliable stock. It carries NEMA design B standards, IE3 premium efficiency, and TEFC enclosure to meet contemporary safety and performance requirements. Operating at 208/230/460 V with 60 Hz and a 184TZ frame, it integrates smoothly into existing lines and gear trains. With US origin and multi-warehouse stocking, you get rapid delivery, consistent availability, and streamlined maintenance planning. This combination makes it a reliable choice for dairy, grain dryer fans, and other farm-duty applications.
Product Information
Extended Description
7BEGDM3665T ABB: Farm Duty Motor 5 Hp 208 V (EGDM3665T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1750RPM,3PH,60HZ,184TZ,0641M,TE
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EGDM3665T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
06LYK575: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
EGDM3665T
Gross Volume
5274.135 inÂł
Gross Weight
119 lb
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
5HP,1750RPM,3PH,60HZ,184TZ,0641M,TEFC,F1
Made To Order
No
Medium Description
Grain Dryer Centrifugal Fan, 5 HP, 1800 RPM, Frame Size 184Tz, Standard Mounting, 3 Phase, TEFC Enclosure, 208-230/460 V, 60 Hz (EGD
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184TZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
79 %
Product Name
Grain Dryer Centrifugal Fan
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
119 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
14 A | 13.2 A | 6.6 A
Rated Efficiency
89.50 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 184Tz, Standard, 3 PH, TEFC, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
208 V | 230 V | 460 V
Feature → 5 HP, 1750 r/min, 60 Hz, 3-phase operation at 208/230/460 V. Business Impact → Delivers steady torque and reliable performance across common farm conveyors and fans, reducing unplanned downtime. Application → Ideal for grain dryers, fans, and auger systems. Feature → TEFC enclosure and 184TZ frame with foot mounting. Business Impact → Protects against dust and moisture while simplifying installation in barn or outdoor environments. Application → Belt-driven fans and grain-dryer centrifugal fans in harsh agricultural settings. Feature → IE3 efficiency and NEMA design B. Business Impact → Lower energy costs, cooler operation, easier compliance with efficiency standards. Application → Continuous-duty equipment such as grain handling conveyors. Feature → Direct On Line start, 3-phase, S1 continuous duty. Business Impact → Fast, simple startup with minimal control components; reduces wiring time and system complexity. Application → Farm-processing lines with standard 208-230 V supply. Feature → Stocked at multiple warehouses with 0 day lead time. Business Impact → Accelerates procurement, minimizes downtime for maintenance, and improves budgeting predictability. Application → Nationwide and international repair shops and farming operations needing rapid replacement.
