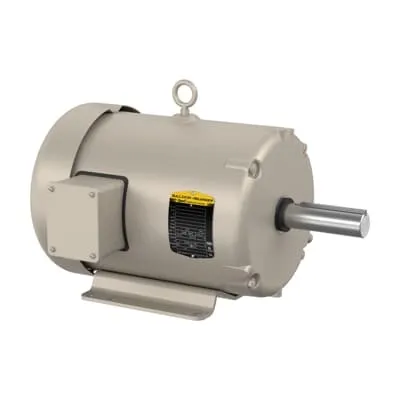

ABB 7BEGDM3710T Farm Duty Motor - TEFC 60 Hz
Part Number: 7BEGDM3710T
Quick Summary
ABB 7BEGDM3710T Farm Duty Motor is a rugged 7.5 HP AC motor optimized for grain handling and agricultural processing. It operates at 230/460 V with three phases and 60 Hz, delivering reliable start-up and steady torque in demanding farm environments. Operators often grapple with downtime from mismatched enclosure protection or inadequate frame fit; this model addresses those challenges with a robust TEFC enclosure and a compact 213TZ frame. Certified for CSA, CSA EEV, and UR, it supports regulatory compliance while minimizing replacement risk. The combination of high efficiency and straightforward installation translates to tangible business value, including reduced energy costs and shorter lead times for project deployment.
Product Information
Extended Description
7BEGDM3710T ABB: Farm Duty Motor 7.5 Hp 230 V (EGDM3710T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1770RPM,3PH,60HZ,213TZ,3738M,
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EGDM3710T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYN385: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
213
Frequency (f)
60 Hz
Global Commercial Alias
EGDM3710T
Gross Volume
7561.383 inÂł
Gross Weight
127 lb
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
7.5HP,1770RPM,3PH,60HZ,213TZ,3738M,TEFC
Made To Order
No
Medium Description
Grain Dryer Centrifugal Fan, 7.5 HP, 1800 RPM, Frame Size 213Tz, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EGDM3
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
213TZ
Motor Frame Suffix
TZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
80 %
Product Name
Grain Dryer Centrifugal Fan
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
127 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
19 A | 9.5 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Short Description
7.5 HP, 1800 RPM, Frame Size 213Tz, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
230 V | 460 V
Feature: 7.5 HP output with rated speed of 1770 r/min. Business Impact: Delivers ample torque for grain dryer centrifugal fans and similar farm-duty duties, enabling stable process flow. Application: Grain drying systems and agricultural fans benefit from reliable starting and consistent speed under load. Long-tail keyword integration: farm duty motor, 7.5 HP motor. Feature: 230/460 V, 3-phase, 60 Hz operation. Business Impact: Flexible power compatibility across regional electrical systems, reducing wiring changes and enabling global procurement. Application: Farm installations and processing lines with mixed voltage supply. Feature: TEFC enclosure. Business Impact: Enclosure protects internal windings from dust, moisture, and particulates common in grain handling, minimizing maintenance. Application: Harsh agricultural environments. Feature: Premium Efficiency (91.70%) and insulation class F. Business Impact: Lowers energy consumption and heat generation, extending motor life and reducing cooling requirements. Application: Continuous duty operations in process lines. Feature: Ball bearings (6307 and 6206). Business Impact: Improved durability under vibration and load, reducing replacement frequency. Application: High-hour agricultural motors. Feature: Foot-mounted, horizontal mounting (F1) on 213TZ frame. Business Impact: Simplifies installation and alignment with existing equipment; standardizes mounting across fleets. Application: Retrofits and new builds with common 213TZ frames. Feature: Starting method Direct On Line (DOL). Business Impact: Quick, simple start-up with minimal control hardware, lowering upfront costs. Application: Standalone drives and field installations. Feature: Service Factor 1.15 and 1770 r/min speed. Business Impact: Higher overload tolerance supports occasional peak loads in harvest and drying cycles. Application: Seasonal farming processes. Feature: Certifications CSA, CSA EEV, UR. Business Impact: Regulatory compliance and safe operation across North American facilities. Application: Industries requiring formal electrical safety validation.
