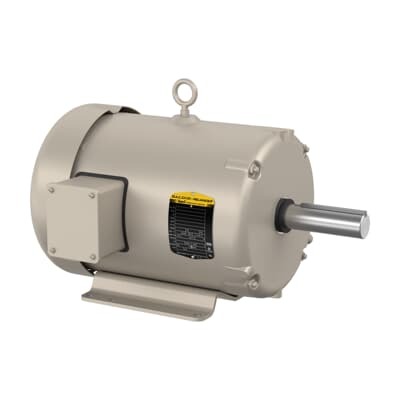

ABB EGDM3714T Farm Duty Motor - CSA EEV UR
Part Number: 7BEGDM3714T
Quick Summary
The ABB EGDM3714T Farm Duty Motor is a reliable three‑phase solution designed for grain handling, drying, and farm processing. It delivers strong starting torque and consistent performance in demanding agricultural environments, helping minimize downtime and maintenance costs. With certifications such as CSA, CSA EEV, and UR, plus IE3 premium efficiency, this motor meets strict safety and energy standards while reducing operating expenses. Built for 230 V (and 460 V) input, it supports common farm electrical systems and scalable farm automation, enabling tighter asset utilization and improved return on investment for agricultural facilities and feed mills alike.
Product Information
Extended Description
7BEGDM3714T ABB: Farm Duty Motor 10 Hp 230 V (EGDM3714T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1770RPM,3PH,60HZ,215TZ,3752M,T
Ambient Temperature
40 °C
Bearing
6307 | Ball
Bearing NDE
6206 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EGDM3714T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYN390: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
EGDM3714T
Gross Volume
7561.383 inÂł
Gross Weight
165 lb
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
10HP,1770RPM,3PH,60HZ,215TZ,3752M,TEFC,F
Made To Order
No
Medium Description
Grain Dryer Centrifugal Fan, 10 HP, 1800 RPM, Frame Size 215Tz, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EGDM37
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215TZ
Motor Frame Suffix
TZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
85 %
Product Name
Grain Dryer Centrifugal Fan
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
165 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
25 A | 12.5 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Short Description
10 HP, 1800 RPM, Frame Size 215Tz, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: 10 HP, 230V/460V, 3-phase, frame 215TZ provides robust power density and compatibility with standard farm equipment, enabling direct mounting on grain dryers and conveyors for efficient operation. Application: Grain handling systems, grain dryer centrifugal fans. Feature → Business Impact → Application: TEFC enclosure with steel frame enhances dust and moisture resistance in dusty agricultural environments, reducing wear and maintenance costs and extending service life. Application: Outdoor or barn installations where moisture exposure is common. Feature → Business Impact → Application: Direct On Line starting and continuous duty (60 minutes) support quick starts and reliable operation under steady farm loads, lowering startup stress on power systems. Application: Harvest conveyors, augers, and processing lines. Feature → Business Impact → Application: IE3 efficiency and 1.15 service factor deliver energy savings and improved torque reserve, supporting compliance with energy programs and reducing total cost of ownership. Application: Cold stores, silos, and feed processing. Feature → Business Impact → Application: Foot-mounted, NEMA design A with 1800 r/min synchronous speed and 1770 r/min rated speed ensures predictable speed control and straightforward installation in standard bases. Application: Grain dryers, fans, and auger drives. Feature → Business Impact → Application: Stocked at multiple warehouses (US and internationally) and 0 day lead time for rapid deployment, supporting just‑in‑time manufacturing and maintenance planning. Application: Plant expansions and service outages.
