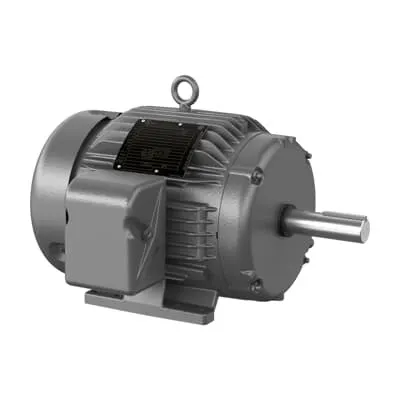

ABB EGDM3774T Farm Duty Motor - IE3 Premium Efficiency
Part Number: 7BEGDM3774T
Quick Summary
Farm Duty motor powers reliable 10 HP drives for agricultural and rugged industrial equipment. This ABB model delivers consistent performance at 1760 r/min across 208–230/460 V three-phase power, addressing common downtime and energy waste in demanding environments. The unit meets CSA, UR, and CSA EEV certifications, plus NEMA design A and IE3 premium efficiency, signaling robust compliance and efficient operation. With stock at multiple warehouses and 0-day lead times, it enables faster project deployment, straightforward installation, and predictable ROI when paired with a 215TZ frame and horizontal, foot-mounted mounting.
Product Information
Extended Description
7BEGDM3774T ABB: Farm Duty Motor 10 Hp 208 V (EGDM3774T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1760RPM,3PH,60HZ,215TZ,0748M,T
Ambient Temperature
40 °C
Bearing
6307, Ball
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EGDM3774T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
07LYN230: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
EGDM3774T
Gross Volume
9144.346 in³
Gross Weight
231 lb
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
10HP,1760RPM,3PH,60HZ,215TZ,0748M,TEFC,F
Made To Order
No
Medium Description
Farm Duty, 10 HP, 1800 RPM, Frame Size 215Tz, Standard Mounting, 3 Phase, TEFC Enclosure, 208-230/460 V, 60 Hz (EGDM3774T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215TZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
82 %
Product Name
Farm Duty
Product Net Depth / Length
28.625 in
Product Net Height
17.625 in
Product Net Weight
231 lb
Product Net Width
18.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
26.3 A | 25 A | 12.5 A
Rated Efficiency
92.40 %
Rated Speed
1760 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.38 in
Short Description
10 HP, 1800 RPM, Frame Size 215Tz, Standard, 3 PH, TEFC, 208-230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
208 V | 230 V | 460 V
Feature → Business Impact → Application: 10 HP motor at 60 Hz with 208-230/460 V input delivers strong torque for irrigation pumps, conveyors, and fans, reducing startup strain and energy use while maintaining steady output in farm and light industrial lines. This translates to measurable energy savings (IE3 92.40% efficiency) and lower operating costs over the motor’s life in continuous-duty scenarios. Feature → Application: TEFC enclosure and 215TZ frame provide rugged, dust- and moisture-resistant performance in barns, outdoors, and harsh plant environments, enabling longer service life and easier outdoor installation. Feature → Application: Direct On Line starting simplifies electrical wiring and reduces maintenance, supporting fast commissioning and shorter downtime during startup in OEM and repair settings. Feature → Application: 1.38 in shaft diameter with foot-mounted, horizontal mounting eases retrofit and new builds alike, improving alignment and vibration control for conveyors and pumps. Feature → Application: 4-pole, 1760 r/min design with 1.15 service factor delivers reliable, steady speed under varying loads, ideal for continuous operation in agricultural processing and material handling. Feature → Application: 0 day lead time and multi-warehouse stocking ensure rapid fulfillment for urgent projects, shortening install queues and accelerating time-to-value for farm automation and industrial equipment upgrades.
Get a Quick Quote for a ABB 7BEGDM3774T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEGDM3774T?
Enquire Now
FAQs
The EGDM3774T is designed for foot-mounted, horizontal mounting with a drive end flange as standard. It uses a 1.38 in shaft diameter and frame size 215TZ, simplifying integration with common conveyors, pumps, and gearboxes in farm and industrial setups.
This is a 3-phase motor rated for 60 Hz operation with voltage options of 208-230 V or 460 V. It supports continuous operation across these voltages, enabling reliable performance in mixed electrical environments typical of farms and light industrial plants.
The motor carries CSA, CSA EEV, and UR certifications, plus NEMA Design Code A and IE3 premium efficiency. These ensure safe operation, regulatory compliance, and high energy efficiency across demanding farm-duty applications.
Lead time is listed as 0 day, with stock at multiple warehouses (including US and international locations), enabling rapid fulfillment and minimized project downtime for OEMs and service providers.
With 92.40% efficiency, a 1.15 service factor, and DOL starting, the EGDM3774T reduces energy costs and maintenance while delivering reliable torque for continuous operation in irrigation, processing, and material handling—delivering faster ROI and lower total cost of ownership.
