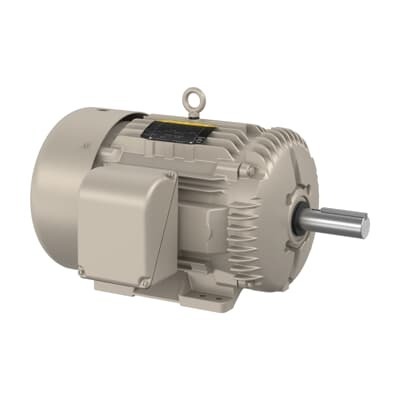

ABB 7BEGDM4103T Farm Duty Motor - Grain Handling CSA EEV
Part Number: 7BEGDM4103T
Quick Summary
ABB 7BEGDM4103T is a Farm Duty Motor delivering 25 HP for grain-drying and farm equipment. Farm environments pose dust, heat, and varying loads that demand rugged reliability and straightforward maintenance. This model carries CSA EEV and UR certifications along with Premium Efficiency (NEMA 12-12) performance, ensuring compliance and energy savings. With a TEFC enclosure and 3-phase operation at 60 Hz across 230/460 V, installation is predictable and scalable for growing agricultural needs. Engineers appreciate the combination of standard mounting, a robust 284TZ frame, and direct-on-line starting, which supports grain-dryer systems, conveyors, and other farm-handling equipment while optimizing lifecycle costs.
Product Information
Extended Description
7BEGDM4103T ABB: Farm Duty Motor 25 Hp 230 V (EGDM4103T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
25HP,1775RPM,3PH,60HZ,284TZ,1054M,T
Ambient Temperature
40 °C
Bearing
6311 | Ball
Bearing NDE
6309 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EGDM4103T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
10LYK051: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
284
Frequency (f)
60 Hz
Global Commercial Alias
EGDM4103T
Gross Volume
18748.226 inÂł
Gross Weight
422 lb
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
25HP,1775RPM,3PH,60HZ,284TZ,1054M,TEFC,F
Made To Order
No
Medium Description
Grain Dryer Centrifugal Fan, 25 HP, 1800 RPM, Frame Size 284Tz, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EGDM41
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
284TZ
Motor Frame Suffix
TZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
25 Hp
Power Factor
81 %
Product Name
Grain Dryer Centrifugal Fan
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
422 lb
Product Net Width
25.688 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
62 A | 31 A
Rated Efficiency
93.60 %
Rated Speed
1775 r/min
Replaced Product ID (OLD)
7B10K051Z651G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.88 in
Short Description
25 HP, 1800 RPM, Frame Size 284Tz, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
230 V | 460 V
25 HP, 1775 r/min three-phase performance aligns with common grain-dryer and agricultural load profiles, delivering ample torque for startup and steady operation while supporting a scalable 60 Hz network. This is paired with a TEFC enclosure and a durable 284TZ frame in a foot-mounted, horizontal orientation, which reduces enclosure-related heat and dust ingress while simplifying installation and service access for maintenance teams. The motor’s Premium Efficiency rating (93.60%) translates to meaningful energy savings over long runtimes, lowering operating costs in high-duty-cycle environments and helping meet local energy regulations. Direct-on-line starting minimizes control complexity and hardware expenses, enabling quicker line starts in harvest and drying cycles while maintaining dependable start-up torque. Bearings (6311 | Ball; 6309 | Ball) and an insulation class F design extend service life in dusty, agricultural facilities, reducing unplanned downtime and maintenance bills. Stocked at multiple warehouses with 0-day lead time improves procurement reliability, ensuring rapid replacement during peak processing periods and minimizing equipment downtime. Coupled with a 1.15 service factor and a 1775 r/min nominal speed, the motor tolerates transient loads common in grain-handling applications, delivering predictable performance in conveyors and fans.
