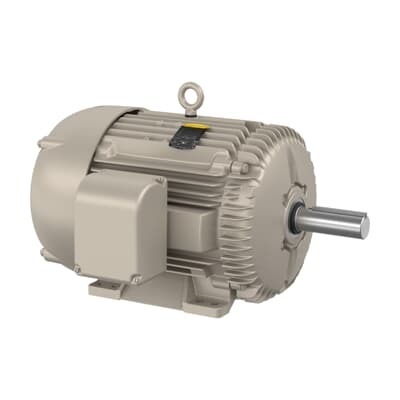

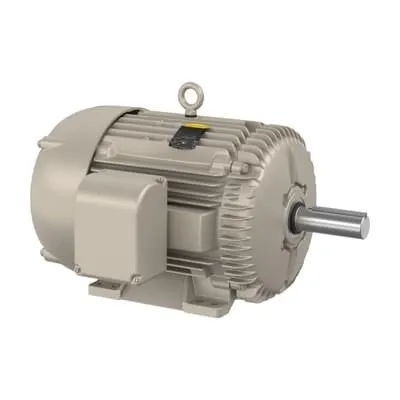

ABB 7BEGDM4115T Farm Duty Motor - CSA/UR IE3
Part Number: 7BEGDM4115T
Quick Summary
Farm Duty Motor ABB 7BEGDM4115T is a rugged 50 HP, 230 V three-phase motor for agricultural equipment. Operators face unreliable start-up, heat buildup, and energy waste in dusty farm environments, and this motor helps mitigate those challenges. It carries CSA, UR, and CSA EEV certifications, aligning with IE3 premium efficiency and TEFC enclosure suitability for harsh conditions. The design supports reliable operation in grain handling and farm-duty drives, offering long life and predictable maintenance. With these certifications and robust construction, it delivers value for industrial motors used in grain dryers and related agricultural systems, reducing downtime and total cost of ownership.
Product Information
Extended Description
7BEGDM4115T ABB: Farm Duty Motor 50 Hp 230 V (EGDM4115T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
50HP,1775RPM,3PH,60HZ,326TZ,1272M,T
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6311 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EGDM4115T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
12LYG986: Dimension Sheet
Drive End Flange Type
Standard
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
326
Frequency (f)
60 Hz
Global Commercial Alias
EGDM4115T
Gross Volume
18748.226 inÂł
Gross Weight
608 lb
IDEA Granular Category Code (IGCC)
1317 >> Farm duty motor AC
Insulation Class
F
Invoice Description
50HP,1775RPM,3PH,60HZ,326TZ,1272M,TEFC,F
Made To Order
No
Medium Description
Grain Dryer Centrifugal Fan, 50 HP, 1800 RPM, Frame Size 326Tz, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EGDM41
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
326TZ
Motor Frame Suffix
TZ
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
50 Hp
Power Factor
85 %
Product Name
Grain Dryer Centrifugal Fan
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
608 lb
Product Net Width
25.688 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
116 A | 58 A
Rated Efficiency
94.50 %
Rated Speed
1775 r/min
Replaced Product ID (OLD)
7B12G986Z279G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
2.13 in
Short Description
50 HP, 1800 RPM, Frame Size 326Tz, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101103
Voltage Rating
230 V | 460 V
TEFC enclosure and iron 326TZ frame provide rugged protection against dust, moisture, and temperature swings, reducing field failures and maintenance costs while enabling reliable operation in outdoor farm environments. In grain-handling and drying applications, this durability translates into longer service intervals and lower lifecycle costs. The motor’s IE3 efficiency rating of 94.50% coupled with a 1.15 service factor delivers tangible energy savings in continuous-duty operations, meaning lower utility bills and improved profitability for farm-scale processing lines and conveyors. Dual-voltage capability (230 V / 460 V) at 60 Hz simplifies stocking and installation, reducing wiring complexity and allowing quick integration with existing drives and controls. Direct-on-line starting minimizes control panel requirements and reduces startup surge concerns for farm equipment. CSA/UR/EEV certifications enhance regulatory compliance for US and international projects, smoothing procurement and installation. Stock availability across multiple warehouses supports rapid deployment, minimizing downtime in grain dryer systems and other field installations. The 50 HP rating, 1775 r/min nominal speed, and 326TZ frame align with common agro-industrial mounting footprints, easing retrofit and new-build integration while supporting standard shaft and coupling options for quick, reliable alignment. For installers, the foot-mounted design and horizontal mounting position (F1) simplify bolting onto skid frames or equipment bases. Overall, this motor is well-suited for farm-duty, continuous-operation scenarios where reliability, efficiency, and fast procurement are paramount for grain drying, handling, and related agricultural processes.
