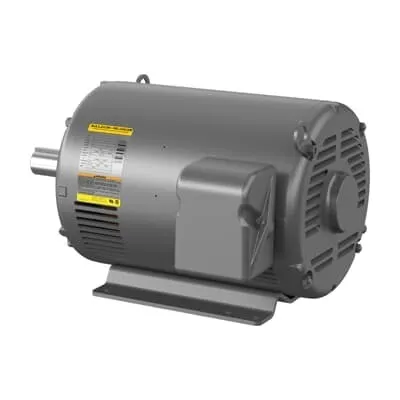

ABB 7BEHFM2523T-8 HVAC Motor - Premium Efficiency
Part Number: 7BEHFM2523T-8
Quick Summary
ABB 7BEHFM2523T-8 HVAC motor is a general purpose, 15 HP solution designed for reliable operation in commercial and light industrial HVAC systems. Sourcing a motor that fits a 254T frame, a 200 V supply, and OPSB enclosure can be challenging, leading to delays and compatibility issues. This unit comes with CSA/UR certifications and NEMA-standard design, supporting safe installation and regulatory compliance. With 0 day lead time and stock availability across multiple warehouses, it enables faster procurement. The motor’s three-phase, 60 Hz operation aligns with typical US electrical infrastructure, while premium efficiency reduces energy costs and heat generation over the motor’s life cycle. Designed for easy mounting, serviceability, and long life, it lowers downtime in critical HVAC equipment.
Product Information
Extended Description
7BEHFM2523T-8 ABB: General Purpose HVAC 15 Hp 200 V (EHFM2523T-8)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
15HP,1765RPM,3PH,60HZ,254T,3948M,OP
Ambient Temperature
40 °C
Bearing
6309, Ball
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EHFM2523T-8
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
39LYE172: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
254
Frequency (f)
60 Hz
Global Commercial Alias
EHFM2523T-8
Gross Volume
9651.933 in³
Gross Weight
106.141 kg
Horsepower Rating UL/CSA
15.000 Hp
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
Insulation Class
F
Invoice Description
15HP,1765RPM,3PH,60HZ,254T,3948M,OPSB,F2
Made To Order
No
Medium Description
General Purpose HVAC, 15 HP, 1800 RPM, Frame Size 254T, Standard Mounting, 3 Phase, OPSB Enclosure, 200 V, 60 Hz (EHFM2523T-8)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
254T
Mounting Orientation
Horizontal
Mounting Position
F2
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
15 Hp
Power Factor
85 %
Product Name
General Purpose HVAC
Product Net Depth / Length
27 in
Product Net Height
17.438 in
Product Net Weight
106.141 kg
Product Net Width
20.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
41 A
Rated Efficiency
93 %
Rated Speed
1765 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.63 in
Short Description
15 HP, 1800 RPM, Frame Size 254T, Standard, 3 PH, OPSB, 200 V
Standards
NEMA
Starting of Motor
Pulse Width Start
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101105
Voltage Rating
200 V
Feature: 15 HP, 1765 r/min output on a 254T frame. Business Impact: Provides strong torque for HVAC fans and blowers, enabling reliable start-up under variable loads. Application: Ideal for general HVAC and process cooling retrofits in commercial buildings. Feature: 200 V, 3-phase, 60 Hz input with OPSB enclosure. Business Impact: Simplifies wiring and provides rugged protection in typical plant environments. Application: Suitable for indoor installations or sheltered outdoor spaces in air-handling applications. Feature: Premium Efficiency (93%) and Service Factor 1.15. Business Impact: Reduces energy consumption, lowers operating costs, and improves thermal performance over the motor life. Application: Energy-conscious facilities targeting reliability and efficiency in large HVAC packages. Feature: Foot-mounted, horizontal mounting; Shaft diameter 1.63 in. Business Impact: Eases on-site installation and aligns with standard baseplates, reducing installation time. Application: Retrofit projects and new equipment with common mounting patterns. Feature: CSA/UR certification and NEMA design; Lead time 0 day; Stocked at multiple warehouses. Business Impact: Regulatory compliance and rapid deployment, minimizing downtime and procurement risk. Application: Plant-wide replacement programs and urgent HVAC equipment upgrades.
