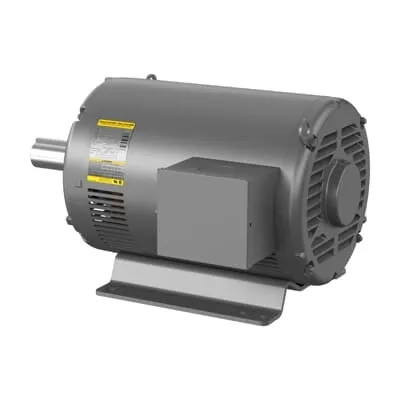

ABB 7BEHFM2539T Motors & Drives - IE3 Premium Efficiency
Part Number: 7BEHFM2539T
Quick Summary
ABB 7BEHFM2539T is a general‑purpose HVAC motor engineered for 40 HP in 3‑phase, 230/460 V operation. It targets air handlers, rooftop units, and compact HVAC drives where reliable torque, steady speed, and easy integration matter most. Engineers often wrestle with downtime, heat buildup, and inconsistent starting; this motor’s rugged OPSB enclosure and robust bearings help minimize service events. With CSA | UR certification, NEMA standards adherence, and an IE3 efficiency rating, it supports regulatory compliance while cutting energy costs. Its footprint, foot‑mounted design, and 324T frame simplify retrofits and new installs across multiple warehouse locations, delivering predictable performance and favorable total cost of ownership.
Product Information
Extended Description
7BEHFM2539T ABB: General Purpose HVAC 40 Hp 230 V (EHFM2539T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
40HP,1770RPM,3PH,60HZ,324T,4064M,OP
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6312, Ball
Bearing NDE
6309
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EHFM2539T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
A
Dimension Diagram
40LYE141: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
324
Frequency (f)
60 Hz
Global Commercial Alias
EHFM2539T
Gross Volume
14448.906 in³
Gross Weight
429 lb
Horsepower Rating UL/CSA
40.000 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F2
Insulation Class
F
Invoice Description
40HP,1770RPM,3PH,60HZ,324T,4064M,OPSB,F2
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose HVAC, 40 HP, 1800 RPM, Frame Size 324T, Standard Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (EHFM2539T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
324T
Mounting Orientation
Horizontal
Mounting Position
F2
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
40 Hp
Power Factor
82 %
Product Name
General Purpose HVAC
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
429 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
98 A | 49 A
Rated Efficiency
94.10 %
Rated Speed
1770 r/min
Replaced Product ID (OLD)
7B40E141X166G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
2.13 in
Short Description
40 HP, 1800 RPM, Frame Size 324T, Standard, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
H
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: 40 HP, 3‑phase motor delivers robust torque and consistent power for HVAC fans and blowers, reducing run‑time fluctuations and improving indoor climate control. This translates to measurable energy efficiency gains in large facilities and lower maintenance burdens in busy air handling units. Application: air handlers, rooftop units, and packaged HVAC equipment. Feature → Business Impact → Application: 324T frame with foot‑mounted mounting simplifies installation and retrofits into existing equipment footprints, reducing commissioning time and minimizing downtime during upgrades. Application: retrofit projects and new installations in commercial buildings. Feature → Business Impact → Application: OPSB enclosure provides enhanced protection against dust and moisture in HVAC environments, enabling reliable operation in condensate-rich or dusty industrial spaces. Application: outdoor units and exposed mechanical rooms. Feature → Business Impact → Application: IE3 premium efficiency lowers energy consumption across annual operating hours, delivering cost savings and helping meet sustainability targets. Application: large office complexes and data centers. Feature → Business Impact → Application: Regreasable bearings and a durable steel frame extend service life and reduce lubrication costs, lowering maintenance intervals and total ownership costs. Application: long‑term system reliability in continuous‑duty HVAC fans. Feature → Business Impact → Application: Direct On Line starting and a service factor of 1.15 provide strong starting torque and headroom for load variations, reducing nuisance starts and improving system responsiveness. Application: rooftop fans and air‑curtain installations in variable loads.
