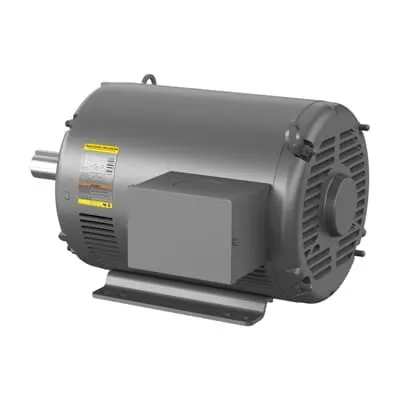

ABB 7BEHFM2543T General Purpose HVAC - CSA/UR
Part Number: 7BEHFM2543T
Quick Summary
ABB 7BEHFM2543T is a general‑purpose HVAC motor designed for 50 HP air handling and packaged cooling systems. Engineers often face energy waste and reliability challenges in demanding environments, where downtime hurts productivity and operating costs. This model carries CSA and UR certifications, along with a NEMA OPSB enclosure and IE3 premium efficiency, providing compliant performance and long service life. With 230/460 V, 60 Hz operation and a 326T frame, it fits neatly into existing HVAC footprints while delivering robust performance. Designed for industrial HVAC applications, it supports quick installation and predictable maintenance, helping facilities achieve energy savings and uptime while reducing total cost of ownership.
Product Information
Extended Description
7BEHFM2543T ABB: General Purpose HVAC 50 Hp 230 V (EHFM2543T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
50HP,1775RPM,3PH,60HZ,326T,4256M,OP
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6312, Ball
Bearing NDE
6311
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EHFM2543T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
42LYE133: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
326
Frequency (f)
60 Hz
Global Commercial Alias
EHFM2543T
Gross Volume
14448.906 in³
Gross Weight
466 lb
Horsepower Rating UL/CSA
50.000 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F2
Insulation Class
F
Invoice Description
50HP,1775RPM,3PH,60HZ,326T,4256M,OPSB,F2
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose HVAC, 50 HP, 1800 RPM, Frame Size 326T, Standard Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (EHFM2543T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
326T
Mounting Orientation
Horizontal
Mounting Position
F2
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
50 Hp
Power Factor
87 %
Product Name
General Purpose HVAC
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
466 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
114 A | 57 A
Rated Efficiency
94.50 %
Rated Speed
1775 r/min
Replaced Product ID (OLD)
7B42E133W387G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
2.13 in
Shaft Grounding
Mounting Provisions Only
Short Description
50 HP, 1800 RPM, Frame Size 326T, Standard, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
G
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 326T frame and 50 HP rating deliver ample torque for air handling units and packaged HVAC equipment, reducing sizing risk and enabling reliable start‑up in demanding environments. This translates to measurable efficiency gains and energy cost reduction in continuous‑duty fans and blowers. The IE3 premium efficiency rating, along with a 87% power factor, lowers operating current and heat generation, improving motor life and reducing cooling load in control rooms. The OPSB enclosure provides superior protection against dust and moisture, enabling longer service intervals in dusty plants or humid environments and simplifying compliance with electrical standards. Direct On Line starting supports fast commissioning and minimized maintenance, while greasable bearings offer extended life in high‑vibration HVAC setups. Compatibility with 230/460 V and 60 Hz ensures seamless integration with existing drives and switchgear, avoiding costly reconfiguration. The 2.13 in shaft diameter and 1775 r/min nominal speed support standard coupling and belt drive designs, reducing installation costs and downtime. Overall, this motor aligns with lean maintenance practices and provides predictable performance for reliable facility operation.
