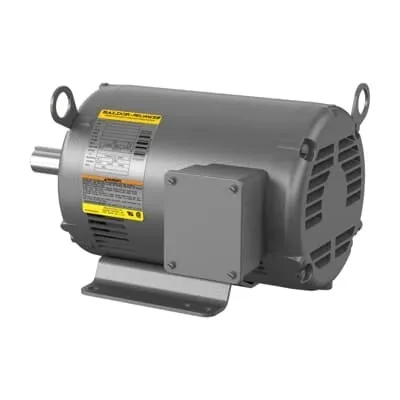

ABB 7BEHFM3218T General HVAC - IE3 Efficiency
Part Number: 7BEHFM3218T
Quick Summary
ABB 7BEHFM3218T General HVAC motor delivers 5 HP, 230/460 V three-phase power for commercial and industrial HVAC systems. Downtime and energy waste cost time and money; this motor is designed for reliability in challenging environments, with a rugged steel frame and durable bearings. It carries CSA/UR approvals, IE3 efficiency, and an OPSB enclosure, meeting essential regulatory and performance standards for building systems. The 60 Hz, 184T-foot-mount design fits standard HVAC assemblies and simplifies retrofits. For facilities managers and OEMs, this combination translates into shorter installation cycles, lower maintenance costs, and predictable spare-part planning, backed by strong stock availability across multiple warehouses.
Product Information
Extended Description
7BEHFM3218T ABB: General Purpose HVAC 5 Hp 230 V (EHFM3218T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1750RPM,3PH,60HZ,184T,3640M,OPS
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EHFM3218T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
36LYL731: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
EHFM3218T
Gross Volume
3496.049 in³
Gross Weight
82 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F2
Insulation Class
F
Invoice Description
5HP,1750RPM,3PH,60HZ,184T,3640M,OPSB,F2
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose HVAC, 5 HP, 1800 RPM, Frame Size 184T, Standard Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (EHFM3218T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Mounting Orientation
Horizontal
Mounting Position
F2
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
80 %
Product Name
General Purpose HVAC
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
82 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
13.2 A | 6.6 A
Rated Efficiency
89.50 %
Rated Speed
1750 r/min
Replaced Product ID (OLD)
7B36L731S270G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 184T, Standard, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
J
Voltage Rating
230 V | 460 V
Feature: 5 HP, 1750 rpm at 60 Hz with 230/460 V input provides stable torque and broad compatibility. Business Impact: Improves control of HVAC fans and pumps, reducing energy waste and equipment wear. Application: Ideal for air handlers and cooling pumps in commercial facilities. Feature: IE3 efficiency rating lowers operating energy consumption and generated heat. Business Impact: Lower utility costs and reduced cooling loads, contributing to a smaller total cost of ownership. Application: Suitable for long-running HVAC systems in office complexes and industrial spaces. Feature: OPSB enclosure delivers robust protection in mechanical rooms with dust and humidity exposure. Business Impact: Enhanced reliability and longer service life with compliant installation. Application: Building automation projects and commercial HVAC installations. Feature: 184T frame, foot-mounted, horizontal mounting simplifies retrofits and field installation. Business Impact: Reduces installation time and spare-parts inventory while easing alignment with existing ductwork and drives. Application: OEM replacement and facility upgrades. Feature: Regreasable bearings (6206) and onboard lubrication extend maintenance intervals. Business Impact: Lower maintenance costs and less unscheduled downtime. Application: Continuous-duty fans and pumps in demanding environments. Feature: Service Factor 1.15 and Direct On Line starting provide startup resilience and straightforward control. Business Impact: Better handling of transient loads and simpler electrical integration. Application: Heavy HVAC duty cycles and load-responsive fans.
Get a Quick Quote for a ABB 7BEHFM3218T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEHFM3218T?
Enquire Now
FAQs
Yes. The 7BEHFM3218T is a 3-phase motor rated for 60 Hz operation with 230/460 V input and direct-on-line starting. It uses a 184T foot-mounted frame and horizontal mounting, designed to retrofit standard HVAC fans and pumps. For field installs, ensure appropriate overload protection and wiring to match the 5 HP rating and 1.15 service factor.
The motor delivers 5 HP with a nominal speed of 1750 r/min at 60 Hz, with a rated current of 13.2 A (or 6.6 A at a lower voltage configuration). It features IE3 efficiency, a 1.15 service factor, a 184T frame, OPSB enclosure, and direct-on-line starting. The shaft diameter is 1.13 in, and bearings are 6206 ball-type for reliability.
Yes. The 7BEHFM3218T is designed for general HVAC applications such as air handlers, fans, and pumps. Its OPSB enclosure and 60 Hz operation support reliable performance in building systems, while the 184T frame and foot-mounted design simplify integration with existing ductwork and drivetrains.
This motor carries CSA and UL (UR) certifications and meets IE3 energy efficiency requirements. The OPSB enclosure and NEMA design code B support compliance with common North American installation standards in commercial environments.
Lead times are listed as 0 days, with stock at multiple warehouses (US and international), enabling predictable procurement and fast project mobilization. Warranty terms indicate that warranted products must be returned if service is required, so coordinate with the supplier for RMA processes and coverage details.
