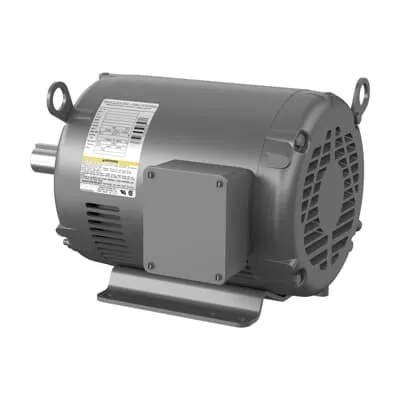

ABB 7BEHFM3313T General Purpose HVAC Motor - OPSB Enclosure
Part Number: 7BEHFM3313T
Quick Summary
General Purpose HVAC motors provide reliable motor drive for cooling systems in industrial and commercial HVAC applications. The ABB 7BEHFM3313T is a 10 HP, 3-phase unit designed for 60 Hz operation with a 215T frame and OPSB enclosure, enabling straightforward integration into standard HVAC footprints. With origin in the United States and immediate stock across multiple warehouses, procurement lead times are minimized and project schedules stay on track. The design adheres to NEMA standards and carries CSA/UR certification for compliance and reliability. This combination supports energy-conscious facilities while delivering predictable maintenance costs and dependable performance for cooling towers, air handlers, and centralized fans.
Product Information
Extended Description
7BEHFM3313T ABB: General Purpose HVAC 10 Hp 230 V (EHFM3313T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1770RPM,3PH,60HZ,215T,3742M,OP
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307, Ball
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EHFM3313T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
37LYL724: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
EHFM3313T
Gross Volume
7561.383 in³
Gross Weight
127 lb
Horsepower Rating UL/CSA
10.000 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F2
Insulation Class
F
Invoice Description
10HP,1770RPM,3PH,60HZ,215T,3742M,OPSB,F2
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose HVAC, 10 HP, 1800 RPM, Frame Size 215T, Standard Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (EHFM3313T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215T
Mounting Orientation
Horizontal
Mounting Position
F2
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
82 %
Product Name
General Purpose HVAC
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
127 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
25 A | 12.5 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.38 in
Short Description
10 HP, 1800 RPM, Frame Size 215T, Standard, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
H
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 10 HP, 1770 r/min, 4P, 3-phase motor delivers consistent airflow and torque for HVAC fans, reducing temperature fluctuation and improving climate control efficiency in commercial buildings. Application: ideal for air handlers, roof-top units, and mixed-use facilities seeking stable performance and reduced energy waste. Feature → Business Impact → Application: The OPSB enclosure paired with a 215T frame provides rugged protection in dusty or humid environments, lowering fault rates and downtime during seasonal operation. Application: retrofit projects and new installs in manufacturing facilities where enclosure integrity matters. Feature → Business Impact → Application: Regreasable bearings and Direct On Line starting simplify maintenance and control electronics, shrinking installation complexity and parts count. Application: controls engineers prioritizing reliability and fast commissioning. Feature → Business Impact → Application: Premium Efficiency (0.82 PF) supports energy savings programs and utility incentives while meeting corporate sustainability goals. Application: large office campuses and data centers with variable HVAC loads. Feature → Business Impact → Application: 3-phase 230/460 V input supports flexible electrical design and straightforward replacement in legacy systems. Application: upgrades to modern, compliant motors without rewiring infrastructure. Feature → Business Impact → Application: Stocked at multiple warehouses and 0-day lead time reduces project risk and accelerates uptime in critical HVAC loops. Application: service teams needing rapid deployment and predictable delivery.
Get a Quick Quote for a ABB 7BEHFM3313T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEHFM3313T?
Enquire Now
FAQs
This motor uses a foot-mounted design with a 215T frame and OPSB enclosure. It operates on 3-phase power at 60 Hz with a voltage rating of 230 V or 460 V. Direct On Line starting is supported, and the rated current is approximately 25 A (In) or 12.5 A depending on connection. This ensures straightforward replacement or retrofit into standard HVAC equipment footprints.
The unit is a 10 HP, 1770 r/min, 4-pole, 3-phase motor with a rated efficiency of 91.7% and a power factor of about 0.82. It carries a service factor of 1.15 and is designed for premium efficiency aligned with NEMA standards, aiding energy reduction in continuous HVAC operation.
Yes. The General Purpose HVAC designation, 10 HP rating, 3-phase 60 Hz operation, and OPSB enclosure make it well-suited for fans, blowers, and pumps in commercial and light industrial HVAC systems. The robust frame and durable bearings support long service life in steady-state cooling duties.
The motor aligns with NEMA standards and carries CSA | UR certification, ensuring compliance with North American electrical safety and performance requirements. These certifications help simplify procurement, insure compatibility with regional codes, and support insurance and warranty processes for facility installations.
Regreasable bearings simplify lubrication cycles, reducing maintenance intervals. The Direct On Line starting minimizes control hardware needs, lowering upfront and lifecycle costs. With stock in multiple warehouses and a 0-day lead time, facilities can maximize uptime and shorten project schedules, delivering favorable return on investment through reduced downtime and energy efficiency.
