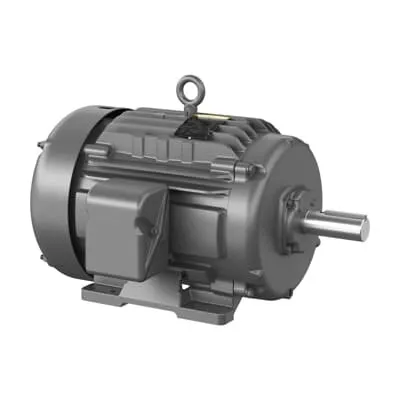

ABB 7BEHM2333T HVAC Motor - Premium Efficiency TEFC
Part Number: 7BEHM2333T
Quick Summary
ABB 7BEHM2333T HVAC motor is a 15 HP general purpose drive for commercial and industrial HVAC equipment. It is designed to deliver reliable performance, reducing downtime and maintenance in demanding applications. The motor carries CSA, CSA EEV, and UR recognition to support regulatory compliance and supplier qualification. With dual voltage 230/460 V and a robust TEFC enclosure, it integrates smoothly into existing systems, while the 254T frame and 1.63 in shaft diameter simplify mounting in standard housings. Stocked across multiple warehouses for fast delivery, this motor helps meet project timelines and total cost of ownership goals in HVAC fans, blowers, and compressors.
Product Information
Extended Description
7BEHM2333T ABB: General Purpose HVAC 15 Hp 230 V (EHM2333T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
15HP,1765RPM,3PH,60HZ,254T,0944M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6309, Ball
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EHM2333T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
09LYJ970: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
254
Frequency (f)
60 Hz
Global Commercial Alias
EHM2333T
Gross Volume
9651.933 in³
Gross Weight
250 lb
Horsepower Rating UL/CSA
15.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
15HP,1765RPM,3PH,60HZ,254T,0944M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose HVAC, 15 HP, 1800 RPM, Frame Size 254T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EHM2333T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
254T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
15 Hp
Power Factor
84 %
Product Name
General Purpose HVAC
Product Net Depth / Length
27 in
Product Net Height
17.438 in
Product Net Weight
250 lb
Product Net Width
20.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
36.2 A | 18.1 A
Rated Efficiency
92.40 %
Rated Speed
1765 r/min
Replaced Product ID (OLD)
7B09J970T597G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.63 in
Shaft Grounding
Mounting Provisions Only
Short Description
15 HP, 1800 RPM, Frame Size 254T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
H
Voltage Rating
230 V | 460 V
Premium efficiency and energy savings drive lower operating costs for 15 HP HVAC fans and blowers, with a rated efficiency of 92.40% and a service factor of 1.15. This directly reduces electricity consumption in continuous duty drives, boosting overall system efficiency in commercial buildings and industrial plants. The TEFC enclosure provides proven protection against dust and moisture, enhancing reliability in challenging environments and reducing unplanned downtime. The 254T frame size and 1.63 in shaft diameter ensure compatibility with a wide range of existing mounting provisions and retrofit opportunities, enabling quick installation without costly adapters. With dual voltage (230/460 V) and 3-phase power, installation is straightforward, supporting versatile wiring and simplified field configuration for 60 Hz HVAC drives. Direct On Line starting minimizes control complexity and upfront investment in soft starters, delivering immediate torque and simpler wiring in ventilation and air-handling systems. The motor’s insulation class F and high service factor make it suitable for continuous operation in demanding duty cycles, supporting longer motor life and lower total cost of ownership. Foot-mounted, horizontal mounting (F1) aligns with standard enclosure layouts and reduces installation time, while the 1765 r/min nominal speed provides stable airflow and consistent process control in HVAC applications. Industry-standard design (NEMA) and dimension data shorten replacement cycles and improve procurement agility for service teams and contractors alike.
Get a Quick Quote for a ABB 7BEHM2333T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEHM2333T?
Enquire Now
FAQs
Yes. The ABB 7BEHM2333T is a 3-phase motor rated for 230 V or 460 V operation at 60 Hz. Its dual-voltage design, 254T frame, and foot-mounted (horizontal) mounting simplify field wiring and retrofit into existing equipment, reducing installation complexity and downtime.
This motor delivers Premium Efficiency at 92.40% with a service factor of 1.15, enabling lower energy costs and improved reliability under peak loads. It is designed for continuous duty in HVAC drives, with a TEFC enclosure that protects internal components in challenging environments.
Ideal for general HVAC applications such as supply/return fans, air handling units, blowers, and small compressors, especially where 15 HP, 1765 rpm operation, and 60 Hz power are standard. The 254T frame and DOL starting profile suit retrofit and new installs alike, ensuring dependable airflow and consistent performance.
The motor carries CSA, CSA EEV, and UR recognition, indicating compliance with safety and electrical standards in North America. These certifications support regulatory approvals for commercial building equipment, procurement audits, and supplier qualification programs, reducing project risk and ensuring traceability.
With stock available across multiple warehouses and a straightforward foot-mounted, horizontal configuration, installation time is minimized. The TEFC enclosure, premium efficiency, and robust service factor contribute to longer motor life and lower maintenance costs, delivering a favorable return on investment for HVAC retrofit projects and ongoing facility maintenance.
