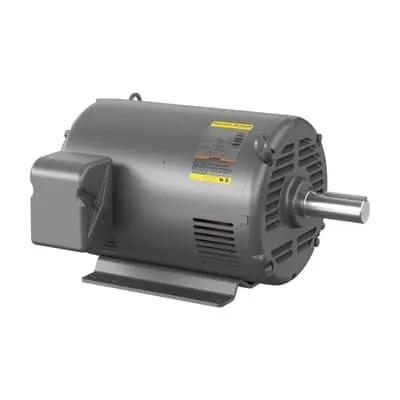

ABB 7BEHM2506T General HVAC - CSA UR Certified
Part Number: 7BEHM2506T
Quick Summary
General HVAC motors like the ABB 7BEHM2506T deliver 7.5 HP performance for HVAC systems in commercial settings. Operators often face downtime and rising energy costs; this motor combines rugged construction with premium efficiency to reduce both. It carries CSA and UR safety certifications, plus NEMA-compliant design and IE2 efficiency, supporting regulatory compliance and lower life-cycle costs. With a 254T frame and OPSB enclosure, it offers straightforward installation in tight mechanical spaces and dependable long-term operation. For HVAC equipment such as air handlers and rooftop units, this motor provides reliable power, easy replacement, and predictable maintenance intervals, delivering real value to procurement teams and facilities managers alike.
Product Information
Extended Description
7BEHM2506T ABB: General Purpose HVAC 7.5 Hp 230 V (EHM2506T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
7.5HP,1180RPM,3PH,60HZ,254T,3950M,O
Ambient Temperature
40 °C
Bearing
6309, Ball
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EHM2506T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
39LYR006: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE2 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
254
Frequency (f)
60 Hz
Global Commercial Alias
EHM2506T
Gross Volume
9651.933 in³
Gross Weight
112.491 kg
Horsepower Rating UL/CSA
7.500 Hp
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
Insulation Class
F
Invoice Description
7.5HP,1180RPM,3PH,60HZ,254T,3950M,OPSB,F
Made To Order
No
Medium Description
General Purpose HVAC, 7.5 HP, 1200 RPM, Frame Size 254T, Standard Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (EHM2506T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
254T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
7.5 Hp
Power Factor
68 %
Product Name
General Purpose HVAC
Product Net Depth / Length
27 in
Product Net Height
17.438 in
Product Net Weight
112.491 kg
Product Net Width
20.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
22.8 A | 11.4 A
Rated Efficiency
90.20 %
Rated Speed
1180 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.63 in
Short Description
7.5 HP, 1200 RPM, Frame Size 254T, Standard, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
UNSPSC
26101105
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 3-phase, 60 Hz operation delivers smooth torque at startup and stable speed, reducing electrical stress and prolonging motor life; this translates to reduced maintenance and lower downtime in critical HVAC loops such as chillers and air handlers. Application: ideal for commercial HVAC systems requiring reliable uptime and consistent performance. Feature → Business Impact → Application: OPSB enclosure with a steel frame provides rugged protection in damp or dusty mechanical rooms, improving ingress protection and extending service intervals; installation is simpler due to a robust, corrosion-resistant housing. Application: suitable for rooftop units and packaged HVAC equipment where enclosure integrity matters. Feature → Business Impact → Application: IE2 premium efficiency (90.20%) lowers energy consumption and operating costs, supporting sustainability goals and regulatory compliance. Application: cost-conscious facilities looking to reduce total cost of ownership over the system lifecycle. Feature → Business Impact → Application: Direct On Line starting and a 1.15 service factor deliver strong torque and headroom for startup loads, minimizing motor sag and improving reliability in always-on cooling cycles. Application: critical for continuous-duty fans, pumps, and conveyors within HVAC plants. Feature → Business Impact → Application: 254T frame, 1.63 in shaft, and 112.491 kg weight provide a compact yet powerful footprint that simplifies retrofits and replacements. Application: retrofit projects in older installations where space is at a premium. Feature → Business Impact → Application: Foot-mounted, horizontal mounting with F1 orientation simplifies installation and reduces vibration-related maintenance. Application: new builds and upgrades in commercial facilities where quick, reliable installation matters. Industry context: this combination supports long life in demanding environments while enabling lower total cost of ownership through energy efficiency and robust construction.
