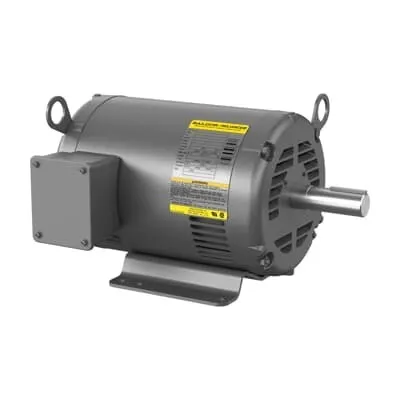

ABB 7BEHM3218T-8 General Purpose HVAC - OPSB Enclosure
Part Number: 7BEHM3218T-8
Quick Summary
ABB 7BEHM3218T-8 General Purpose HVAC motors provide reliable, efficient drive power for commercial HVAC systems. Facility managers often wrestle with energy costs and unplanned downtime, so a robust motor with quick availability is crucial. Key certifications include IE3 premium efficiency, CSA/UL listing, and a NEMA design code (B), providing regulatory compliance and long service life. With a rugged OPSB enclosure, 184T frame, and 5 HP rating, this motor delivers dependable performance in demanding environments. Fast stock across multiple warehouses supports lean procurement and shorter project timelines. This combination translates to measurable uptime, energy savings, and predictable maintenance for industrial automation and equipment retrofit projects.
Product Information
Extended Description
7BEHM3218T-8 ABB: General Purpose HVAC 5 Hp 200 V (EHM3218T-8)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
5HP,1750RPM,3PH,60HZ,184T,3640M,OPS
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206, Ball
Bearing NDE
6205
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EHM3218T-8
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
36LYL730: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
184
Frequency (f)
60 Hz
Global Commercial Alias
EHM3218T-8
Gross Volume
5274.135 in³
Gross Weight
85 lb
Horsepower Rating UL/CSA
5.000 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
5HP,1750RPM,3PH,60HZ,184T,3640M,OPSB,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose HVAC, 5 HP, 1800 RPM, Frame Size 184T, Standard Mounting, 3 Phase, OPSB Enclosure, 200 V, 60 Hz (EHM3218T-8)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
184T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
5 Hp
Power Factor
80 %
Product Name
General Purpose HVAC
Product Net Depth / Length
21.625 in
Product Net Height
15.125 in
Product Net Weight
85 lb
Product Net Width
16.125 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
15.2 A
Rated Efficiency
89.50 %
Rated Speed
1750 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.13 in
Short Description
5 HP, 1800 RPM, Frame Size 184T, Standard, 3 PH, OPSB, 200 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
J
Voltage Rating
200 V
Feature: 5 HP, 200 V operation in a 3-phase design delivers strong starting torque and stable speed control for mid-size HVAC loads. Business Impact: Improves cooling capacity while reducing energy waste and operational noise in commercial buildings. Application: Ideal for air handling units and rooftop units where dependable duty and consistent performance are essential. Feature: IE3 premium efficiency and NEMA design B compliance. Business Impact: Lowers total cost of ownership through energy savings and regulatory alignment, supporting sustainability goals. Application: Essential for continuous-duty fans and pumps in process cooling and air distribution networks. Feature: OPSB enclosure and 184T frame with foot mounting. Business Impact: Enhances protection against dust, moisture, and incidental contact while simplifying installation and serviceability. Application: Retrofit projects and new installations in industrial facilities with standard mounting footprints. Feature: Direct On Line starting and 60 Hz operation. Business Impact: Reduces electrical complexity and startup time, enabling seamless integration with existing control systems. Application: Direct-drive fans and blowers in HVAC systems where robust, plug-and-play start is preferred. Feature: Regreasable bearings (6206, Ball) and lubricated design. Business Impact: Extends maintenance intervals and reduces unplanned outages, improving uptime. Application: Long-life operation in moderate-temperature environments up to 40 °C ambient and 1000 m altitude. Feature: 184T frame, shaft diameter 1.13 in, 5 HP rating, 1750 rpm. Business Impact: Ensures compatibility with common belt-pulley drives and standardized mechanical interfaces, decreasing installation time. Application: Replacement motors and OEM equipment needing a compact, high-performance motor. Feature: Stocked at multiple warehouses (US and international), 0 day lead time. Business Impact: Shortens procurement cycles, minimizes project delays, and supports just-in-time manufacturing. Application: Critical spares and rapid deployment for commercial HVAC retrofits and optimization projects. This motor’s combination of rugged construction, regulatory alignment, and readily available stock makes it a practical choice for engineers pursuing reliability, energy efficiency, and fast delivery in industrial automation and facility upgrades.
Get a Quick Quote for a ABB 7BEHM3218T-8
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEHM3218T-8?
Enquire Now
FAQs
Yes. The 7BEHM3218T-8 is designed for 60 Hz, 200 V three-phase operation with a 184T frame and foot-mounted mounting. It uses Direct On Line starting and offers a shaft diameter of 1.13 inches, aligning with common belt-driven and direct-drive HVAC applications, which reduces integration risk and installation time.
The motor is rated IE3 for premium efficiency and carries CSA/UL listing with NEMA design B. These certifications support regulatory compliance in many regions and help reduce energy-related operating costs, making it suitable for regulated industrial HVAC and energy-conscious facilities.
Ideal for air handling units, rooftop units, and large fans in commercial and light-industrial settings. Its OPSB enclosure, 5 HP rating, and robust frame size enable reliable operation in humid or dusty environments while maintaining ease of installation and serviceability.
This model is stocked across multiple warehouses (US and international), with 0 day lead time reported in the data. That translates to faster procurement, reduced project delays, and improved maintenance planning for retrofit and new-build HVAC projects.
The unit uses regreasable bearings (6206 ball bearings) and a lubricated design, supporting longer intervals between maintenance events. Regular inspection of lubrication, bearing wear, and mounting alignment, along with routine electrical checks (rated current of 15.2 A and 200 V operation), will sustain performance and uptime.
