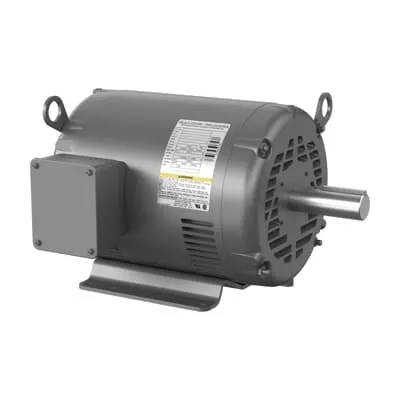

ABB 7BEHM3313T-8 General Purpose HVAC - OPSB Enclosure
Part Number: 7BEHM3313T-8
Quick Summary
ABB 7BEHM3313T-8 General Purpose HVAC provides reliable 10 HP motor performance for commercial HVAC systems, fans, and pumps operating at 200 V and 60 Hz. The design targets uptime and predictable procurement, reducing maintenance delays and spares fragmentation. With CSA/UR listing and IE3 premium efficiency, it aligns with stringent regulatory and energy targets while delivering robust, long-life operation. The 215T frame, OPSB enclosure, and direct-on-line starting enable straightforward installation and fast integration into existing equipment, supporting both OEM and aftermarket upgrades. This combination translates to lower total cost of ownership, improved system availability, and easier compliance across facilities with multi-site operations.
Product Information
Extended Description
7BEHM3313T-8 ABB: General Purpose HVAC 10 Hp 200 V (EHM3313T-8)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1770RPM,3PH,60HZ,215T,3740M,OP
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307, Ball
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EHM3313T-8
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
37LYJ637: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
EHM3313T-8
Gross Volume
7561.383 in³
Gross Weight
120 lb
Horsepower Rating UL/CSA
10.000 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
10HP,1770RPM,3PH,60HZ,215T,3740M,OPSB,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose HVAC, 10 HP, 1800 RPM, Frame Size 215T, Standard Mounting, 3 Phase, OPSB Enclosure, 200 V, 60 Hz (EHM3313T-8)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
80 %
Product Name
General Purpose HVAC
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
120 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
29.5 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.38 in
Short Description
10 HP, 1800 RPM, Frame Size 215T, Standard, 3 PH, OPSB, 200 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
H
Voltage Rating
200 V
Feature 1: 10 HP, 1770 r/min, 200 V, 60 Hz, 3-phase design. Business Impact: Delivers steady torque and reliable speed control for HVAC fans and pumps, reducing load fluctuations and energy waste. Application: Ideal for commercial HVAC units and process fans where consistent performance matters. Feature 2: IE3 Premium Efficiency and 91.70% rated efficiency. Business Impact: Lower energy consumption and operating costs over the motor’s lifecycle, supporting green initiatives and utility savings. Application: Long-running conveyors, blowers, and circulation pumps in climate control systems. Feature 3: Frame Size 215T with OPSB enclosure and horizontal F1 mounting. Business Impact: Simplifies retrofit and new-build installations, enabling straightforward mounting and protective enclosure to withstand industrial environments. Application: OEM assemblies, rooftop units, and packaged HVAC equipment. Feature 4: Direct On Line starting with 3-phase 200 V supply. Business Impact: Eliminates soft-start complexity and minimizes installation time while maximizing starting torque for load inertia. Application: Applications requiring immediate torque and simple wiring. Feature 5: Robust mechanicals — 1.38 in shaft, 6307 ball bearings, regreasable lubrication, 29.5 A rated current, service factor 1.15. Business Impact: Extended bearing life, easier maintenance cycles, and predictable current draw for panel design. Application: Heavy-duty HVAC fans, pumps, and conveyors. Feature 6: Stocked availability and global reach — 0 day lead time, multiple warehouses (US, China). Business Impact: Reduces downtime and accelerates project timelines, improving procurement predictability for engineers and buyers. Application: Maintenance planning, OEM sourcing, and multi-site deployments. This holistic package supports long-term operational efficiency and strong return on investment.
