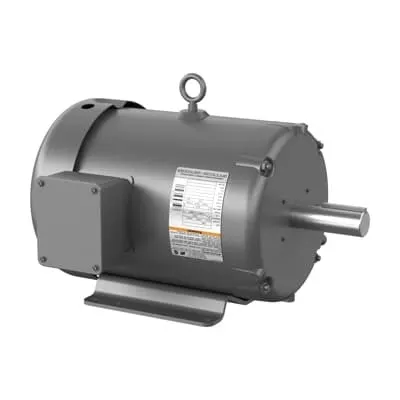

ABB 7BEHM3714T General Purpose HVAC Motor - IE3
Part Number: 7BEHM3714T
Quick Summary
ABB 7BEHM3714T General Purpose HVAC Motor is a 10 HP, 230/460 V, 3-phase TEFC motor designed for commercial and industrial HVAC equipment. It delivers dependable performance with a rated speed of 1770 r/min and a 1.15 service factor, making it well-suited for continuous-duty fans and pumps in climate control systems. This motor aligns with US-origin manufacturing and is stocked across multiple warehouses, with 0-day lead time to support rapid project starts. It carries IE3 premium efficiency and CSA/UR certifications, helping lower energy costs while meeting stringent safety and regulatory requirements. The combination of robust construction, standard mounting (F1), and straightforward installation translates into reduced maintenance and a lower total cost of ownership over the motor's life.
Product Information
Extended Description
7BEHM3714T ABB: General Purpose HVAC 10 Hp 230 V (EHM3714T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1770RPM,3PH,60HZ,215T,3752M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6307, Sealed Bearing
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EHM3714T
Certification Agency
CSA | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
37LYJ543: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
EHM3714T
Gross Volume
8167.5 in³
Gross Weight
160.001 lb
Horsepower Rating UL/CSA
10.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
10HP,1770RPM,3PH,60HZ,215T,3752M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose HVAC, 10 HP, 1800 RPM, Frame Size 215T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EHM3714T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
85 %
Product Name
General Purpose HVAC
Product Net Depth / Length
27.5 in
Product Net Height
18 in
Product Net Weight
160.001 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
25 A | 12.5 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.38 in
Short Description
10 HP, 1800 RPM, Frame Size 215T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
K
Voltage Rating
230 V | 460 V
IE3 premium efficiency reduces energy consumption for continuous HVAC operation. The higher efficiency lowers the kW draw at full load, cutting electricity costs for fans and pumps throughout the facility, which translates into a faster return on investment for retrofit projects and ongoing energy-code compliance. Applications include air handling units, rooftop units, and cooling towers where steady operation drives measurable ROI. TEFC enclosure and 215T frame provide durable protection against dust and moisture while supporting long service life and lower maintenance costs. This enables reliable operation in challenging environments and simplifies spare-part planning for facilities with mixed OEM fleets. Dual voltage (230/460 V) and 60 Hz operation offer procurement flexibility, reducing stocking complexity and enabling smoother integration with existing electrical infrastructure. The 3-phase motor supports straightforward wiring and compatibility with standard industrial controls, aiding quick installation and minimizing downtime during upgrades. Direct On Line starting reduces control hardware and simplifies commissioning, lowering initial installation costs and enabling faster project execution. With NEMA Design Code A, 4-pole configuration and a rated speed of 1770 r/min, the motor delivers predictable torque and steady performance across typical HVAC loads, improving system stability and extending equipment life. Regreasable bearings and a grease-lubrication regime support easy maintenance planning and longer intervals between service cycles, contributing to lower maintenance expenses and higher uptime in critical cooling applications.
Get a Quick Quote for a ABB 7BEHM3714T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEHM3714T?
Enquire Now
FAQs
Yes. The 7BEHM3714T uses a 215T frame and a foot-mounted, horizontal F1 configuration, designed for direct replacement in many 215T, 3-phase HVAC installs. It supports dual voltage 230/460V and 60 Hz, enabling straightforward wiring with standard controls. When swapping from a different standard, verify mounting footprint, shaft alignment, and terminal box access to ensure a seamless retrofit with minimal downtime.
The motor delivers 10 HP at 1770 r/min (4P) with a rated current of 25 A / 12.5 A and a service factor of 1.15. It features a TEFC enclosure, insulation class F, 60 Hz operation, and IE3 premium efficiency. Bearings are sealed 6307 with a regreasable lubrication design, supporting maintenance planning and extended life in HVAC duty.
Absolutely. The 7BEHM3714T is purpose-built for general HVAC duty, including air handlers, fans, and pumps in commercial and light-industrial systems. Its 4-pole, 1770 r/min rating provides steady, reliable torque for constant-speed operation, while the IE3 efficiency reduces energy costs in high-load HVAC scenarios.
This ABB motor carries CSA and UL Recognized (UR) certification, aligning with safety and national electrical codes. It also lists NEMA Design Code A and IE3 premium efficiency, supporting compliance for energy performance and motor standardization in U.S. and international facilities.
With regreasable bearings, a robust TEFC enclosure, and reliable DOL starting, maintenance intervals are predictable and downtime is minimized. The 0-day lead time and stock availability across multiple warehouses improve project timing, while IE3 efficiency reduces energy costs. These factors combine to lower total cost of ownership and boost system uptime in HVAC-driven applications.
