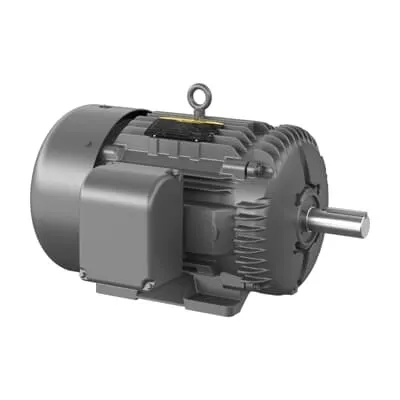

ABB 7BEHM4102T General Purpose HVAC - IE3 Premium Efficiency
Part Number: 7BEHM4102T
Quick Summary
ABB 7BEHM4102T General Purpose HVAC motors deliver reliable 20 HP performance for industrial HVAC systems, including fans and pumps. This design addresses downtime, energy waste, and inconsistent torque that often plague HVAC drives and motor fleets. Key certifications and standards—CSA, CSA EEV, and UR listings—reflect a strong compliance posture while the IE3 premium efficiency level reduces operating costs. With a 230/460 V, 60 Hz supply, frame size 286T, and TEFC enclosure, this motor fits standard industrial equipment and supports longer service intervals. For procurement teams and engineers, the combination of robust protection, high efficiency, and easy installation translates to lower total cost of ownership and improved system reliability.
Product Information
Extended Description
7BEHM4102T ABB: General Purpose HVAC 20 Hp 230 V (EHM4102T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
20HP,1180RPM,3PH,60HZ,286T,1054M,TE
Ambient Temperature
40 °C
Bearing
6311, Ball
Bearing NDE
6309
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EHM4102T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
A
Dimension Diagram
10LYH756: Dimension Sheet
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
286
Frequency (f)
60 Hz
Global Commercial Alias
EHM4102T
Gross Volume
14448.906 in³
Gross Weight
457 lb
Horsepower Rating UL/CSA
20.000 Hp
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
Insulation Class
F
Invoice Description
20HP,1180RPM,3PH,60HZ,286T,1054M,TEFC,F1
Made To Order
No
Medium Description
General Purpose HVAC, 20 HP, 1200 RPM, Frame Size 286T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EHM4102T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
286T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
6P
Number of Poles (High)
6
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
20 Hp
Power Factor
77 %
Product Name
General Purpose HVAC
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
457 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
54 A | 27 A
Rated Efficiency
91.70 %
Rated Speed
1180 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.88 in
Shaft Grounding
Mounting Provisions Only
Short Description
20 HP, 1200 RPM, Frame Size 286T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1200 r/min
Type of Duty
Continuous
UNSPSC
26101105
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The IE3 Premium Efficiency rating reduces energy consumption during continuous HVAC operation, delivering tangible annual savings and supporting sustainability targets in commercial buildings and industrial facilities. Application: Use in air handlers, cooling coils, and fans where steady torque under variable loads drives measurable energy efficiency improvements. Feature → Business Impact → Application: The TEFC enclosure provides durable protection against dust, humidity, and contaminants, extending motor life in harsh production environments. Application: Ideal for HVAC damp locations and outdoor installations where ingress resistance is critical. Feature → Business Impact → Application: Dual voltage capability (230 V / 460 V) simplifies retrofits and new builds, lowering wiring complexity and spare-part costs. Application: Compatibility with existing plant power distributions for easier deployment. Feature → Business Impact → Application: Direct On Line starting and a 1.15 service factor enable reliable, cost-effective startup and robust load tolerance. Application: Suitable for continuous-duty HVAC fans and pumps that require immediate torque without soft-start hardware. Feature → Business Impact → Application: Foot-mounted, horizontal mounting (F1) and 286T frame enable straightforward installation in standard housings and enclosures. Application: Retrofit into legacy equipment with minimal structural changes and predictable alignment. Feature → Business Impact → Application: NEMA design code A and insulation class F provide reliable performance under typical industrial temperatures, reducing risk of insulation breakdown. Application: Critical for long-running HVAC motors in temperature-controlled environments.
