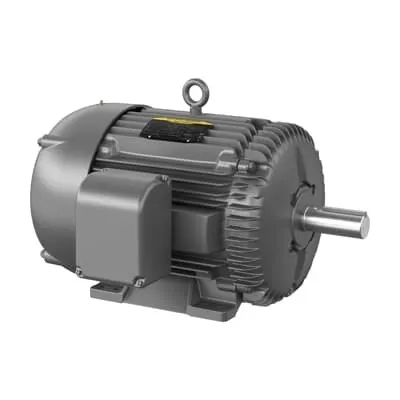

ABB EHM4110T General Purpose HVAC Motor - TEFC 324T
Part Number: 7BEHM4110T
Quick Summary
ABB EHM4110T General Purpose HVAC motor delivers reliable 40 HP performance for commercial HVAC systems. This 3-phase, dual-voltage unit is designed to simplify installation and reduce lifecycle costs by aligning with common 230/460 V power supplies and standard mounting. For engineers and procurement teams, the challenge is balancing availability with compliance and efficiency. The EHM4110T is certified for CSA, CSA EEV, and UR, supporting safe service in regulated environments. With a TEFC enclosure and a 324T frame, it also integrates smoothly with standard HVAC assemblies, while maintaining energy efficiency and robust durability for long-term operation.
Product Information
Extended Description
7BEHM4110T ABB: General Purpose HVAC 40 Hp 230 V (EHM4110T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
40HP,1775RPM,3PH,60HZ,324T,1264M,TE
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6312, Ball
Bearing NDE
6311
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EHM4110T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
A
Dimension Diagram
12LYG122: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
Standard
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
324
Frequency (f)
60 Hz
Global Commercial Alias
EHM4110T
Gross Volume
18748.226 in³
Gross Weight
612 lb
Horsepower Rating UL/CSA
40.000 Hp
IC Class
TEFC
IDEA Granular Category Code (IGCC)
1318 >> Heating and cooling system motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
40HP,1775RPM,3PH,60HZ,324T,1264M,TEFC,F1
Lubrication
Regreasable
Made To Order
No
Medium Description
General Purpose HVAC, 40 HP, 1800 RPM, Frame Size 324T, Standard Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EHM4110T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
324T
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
40 Hp
Power Factor
82 %
Product Name
General Purpose HVAC
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
612 lb
Product Net Width
25.688 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
96 A | 48 A
Rated Efficiency
94.10 %
Rated Speed
1775 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
2.13 in
Shaft Grounding
Mounting Provisions Only
Short Description
40 HP, 1800 RPM, Frame Size 324T, Standard, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101105
Voltage Code
J
Voltage Rating
230 V | 460 V
Feature → TEFC enclosure provides a protective shell that resists dust, moisture, and contaminants, reducing motor wear and extending service life. Business Impact → Lower maintenance intervals and higher uptime in harsh HVAC environments translate to reduced throughputs loss. Application → Ideal for air handling units, fans, and pumps in commercial buildings seeking reliable operation. Feature → Frame size 324T and 3-phase operation supported by 60 Hz supply, with dual voltage 230/460 V. Business Impact → Standardized sizing simplifies replacements and inventory, cutting spare-part costs. Application → Suitable for retrofit projects and new installations in office complexes and retail facilities. Feature → Premium Efficiency (94.1% rated) and 1.15 service factor. Business Impact → Energy savings over the motor’s lifetime and improved motor resilience under variable loads. Application → HVAC energy management programs and peak-load mitigation in large buildings. Feature → Direct On Line starting. Business Impact → Fast startup with minimal control hardware, reducing commissioning time. Application → Immediate integration with existing VFDs or direct connections to mains in 3-phase systems. Feature → Bearings, shaft, and dimensional integrity built around a 40 HP, 1775 r/min specification. Business Impact → Predictable torque, reliable start-up, and consistent performance across operating cycles. Application → Industrial fans and pumps in environments requiring consistent rotational speed and load handling. Feature → Stock availability and quick lead times (0 day) with multi-warehouse stocking. Business Impact → Shorter project timelines and improved cash-flow with rapid procurement. Application → Ideal for time-sensitive HVAC applications and service contracts. Feature → Certifications and compliance (CSA, CSA EEV, UR) along with NEMA-related design cues. Business Impact → Regulatory assurance and safer installation across North American markets. Application → Used where strict electrical safety and performance standards are mandatory.
Get a Quick Quote for a ABB 7BEHM4110T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEHM4110T?
Enquire Now
FAQs
This motor is foot-mounted with horizontal mounting orientation (F1) and a 324T frame. It operates on 3-phase power at 230 V or 460 V and 60 Hz, with Direct On Line starting. The TEFC enclosure supports standard HVAC installations and simplifies plug-and-play replacement in compatible equipment.
The EHM4110T delivers 40 HP with a rated speed of 1775 r/min and a service factor of 1.15. It draws 96 A at 230 V or 48 A at 460 V, with a rated efficiency of 94.10%. Insulation is class F, and the motor uses a 6312 ball bearing arrangement for durability.
Yes. The 40 HP, 3-phase, TEFC motor is designed for general HVAC applications such as air handlers, fans, and pumps. Its robust frame (324T) and premium efficiency make it a reliable choice for continuous-duty HVAC duty cycles in commercial buildings.
The motor carries CSA, CSA EEV, and UR certifications, aligning with North American safety and energy standards. It also adheres to NEMA design practices and carries a Baldor-Reliance branding that supports trusted performance in regulated environments.
Lead time is listed as 0 days, with multiple warehouses stocking the product to support fast delivery. The unit is available with a minimum order quantity of 1 piece. Its high efficiency, low maintenance bearing assembly, and standard frame size help reduce operating costs and downtime, delivering a compelling ROI over its lifespan.
