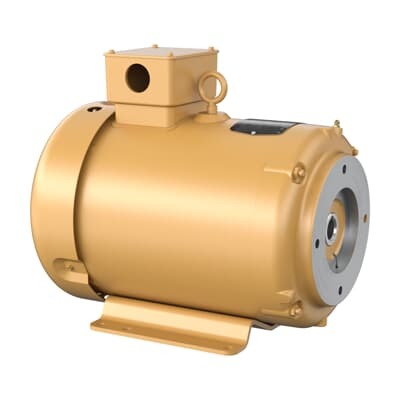

ABB 7BEHPM3714T Hydraulic Pump - 10HP 60Hz TEFC
Part Number: 7BEHPM3714T
Quick Summary
ABB 7BEHPM3714T hydraulic pump is a high-efficiency 10 HP unit designed for hydraulic systems in industrial machinery. This model delivers reliable power at 1770 r/min with a TEFC enclosure, suitable for demanding manufacturing environments. Many buyers struggle with downtime and inconsistent performance when stocking replacement pumps across multiple warehouses. The 7BEHPM3714T is built for fast, on-time delivery from strategically stocked US and international warehouses, minimizing downtime. With certifications including CSA, UR, and EEV, it supports safe operation and regulatory compliance. The unit also aligns with energy-saving goals through IE3 efficiency and a robust 230/460 V, 60 Hz power profile, helping reduce total cost of ownership in automated processes.
Product Information
Extended Description
7BEHPM3714T ABB: Hydraulic Pump 10 Hp 230 V (EHPM3714T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
10HP,1770RPM,3PH,60HZ,215TYZ,3752M,
Ambient Temperature
40 °C
Bearing
6208, Ball
Bearing NDE
6206
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EHPM3714T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
37LYJ606: Dimension Sheet
Drive End Flange Type
SAE Pump
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
215
Frequency (f)
60 Hz
Global Commercial Alias
EHPM3714T
Gross Volume
7561.383 in³
Gross Weight
165 lb
IDEA Granular Category Code (IGCC)
1328 >> Multi phase motor AC
Insulation Class
F
Invoice Description
10HP,1770RPM,3PH,60HZ,215TYZ,3752M,TEFC
Made To Order
No
Medium Description
Hydraulic Pump, 10 HP, 1800 RPM, Frame Size 215Tyz, SaePump Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EHPM3714T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
215TYZ
Mounting Orientation
Horizontal
Mounting Position
F3
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
10 Hp
Power Factor
85 %
Product Name
Hydraulic Pump
Product Net Depth / Length
26.375 in
Product Net Height
17.375 in
Product Net Weight
165 lb
Product Net Width
16.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
24 A | 12 A
Rated Efficiency
91.70 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Short Description
10 HP, 1800 RPM, Frame Size 215Tyz, SaePump, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101115
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: Foot-mounted base and SAE Pump mounting simplify installation, reducing commissioning time and enabling quick retrofits on existing equipment. This improves uptime and lowers installation labor costs for hydraulic power units in assembly lines and mold machines. Feature → 215TYZ frame and TEFC enclosure deliver a rigid, durable footprint that resists harsh shop environments, leading to longer service intervals and lower maintenance overhead in press cells and CNC tooling. Feature → 230/460 V 60 Hz multi-voltage capability supports unified spares management and cross-site deployment, reducing stock variety while maintaining performance across global facilities. Feature → IE3 premium efficiency and a 1.15 service factor translate to measurable energy savings and improved drive life for continuous-duty operations in material handling and packaging systems. Feature → Direct On Line starting, NEMA design A, and 3-phase configuration provide straightforward compatibility with standard motor starters and soft starters, minimizing electrical integration risk in hydraulic press lines and conveyors. Industry insight: with a 4-pole, single-speed design, the pump delivers consistent hydraulic pressure for predictable actuator response, essential for automated machining centers and hydraulic clamping stations. The product supports 40 °C ambient operation and a 165–215 TYZ class, ensuring reliable performance in moderate shop temperatures andTooling rooms.
Get a Quick Quote for a ABB 7BEHPM3714T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEHPM3714T?
Enquire Now
FAQs
The 7BEHPM3714T is designed for 230 V or 460 V three-phase power at 60 Hz, delivering 10 HP with 1770 r/min. It supports straightforward integration with standard VFDs or soft starters and uses a TEFC enclosure for reliable performance in typical workshop environments.
This model carries CSA, CSA EEV, and UR certifications, signaling conformance to safety, energy, and electrical standards. These approvals help ensure regulatory compliance across North American markets and support safe operation in industrial environments.
The pump features a foot-mounted base and SAE pump mounting, with horizontal orientation (F3) suitable for compact layouts. These options simplify installation, reduce retrofit risk, and enable quick alignment with existing hydraulic manifolds and drive trains.
Key specs include 10 HP output, 1770 r/min nominal speed, 230/460 V, 60 Hz, IE3 efficiency, and 1.15 service factor. The TEFC enclosure and 215TYZ frame support reliable, continuous operation in continuous-duty environments such as presses and tooling centers.
Lead time is listed as 0 day, with stock across multiple warehouses (including US and international locations). This availability supports just-in-time stocking and reduces downtime for critical hydraulic pump replacements.
