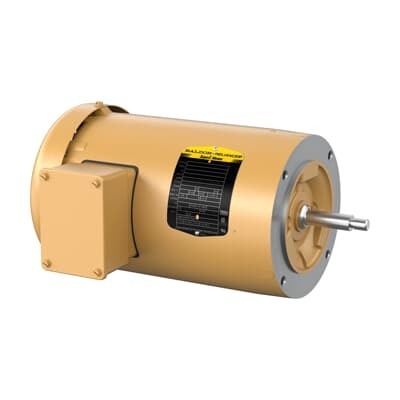

ABB 7BEJM3554 Pump Motor - TEFC 1.5HP Premium Efficiency
Part Number: 7BEJM3554
Quick Summary
Pump motor is a compact, reliable drive for 1.5 HP water transfer pumps in industrial and commercial systems. Operators frequently face downtime due to torque mismatch, heat buildup, and retrofit challenges when updating legacy equipment. The ABB 7BEJM3554 holds CSA, CSA EEV, and UR certifications, with a TEFC enclosure and Premium Efficiency rating to support safe, energy-efficient operation. Designed for quick installation and flexible voltage (230/460 V), it helps reduce lifecycle costs and downtime across pump applications by enabling straightforward retrofits and dependable performance.
Product Information
Extended Description
7BEJM3554 ABB: Pump Motor 1.5 Hp 230 V (EJM3554)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1770RPM,3PH,60HZ,56J,3524M,TE
Ambient Temperature
40 °C
Bearing
6205, Ball
Bearing NDE
6203
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJM3554
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYF084: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Steel
Frame Size
56
Frequency (f)
60 Hz
Global Commercial Alias
EJM3554
Gross Volume
3496.049 in³
Gross Weight
41 lb
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
1.5HP,1770RPM,3PH,60HZ,56J,3524M,TEFC,F1
Made To Order
No
Medium Description
56J Jet Pump, 1.5 HP, 1800 RPM, Frame Size 56J, C-Face Mounting, 3 Phase, TEFC Enclosure, 230/460 V, 60 Hz (EJM3554)
Minimum Order Quantity
1 piece
Motor Base Type
Footless
Motor Frame Size
56J
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
72 %
Product Name
56J Jet Pump
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
41 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
44653 A
Rated Efficiency
86.50 %
Rated Speed
1770 r/min
Replaced Product ID (OLD)
7B35F084L955G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.63 in
Short Description
1.5 HP, 1800 RPM, Frame Size 56J, C-Face, 3 PH, TEFC, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: TEFC enclosure and 56J frame with C-Face mounting deliver robust ruggedness in demanding environments, decreasing corrosion exposure and simplifying installation across pump systems in water treatment and industrial processes. This supports extended bearing life and reduced maintenance intervals, essential for long-running process pumps. Feature → Business Impact → Application: Direct On Line starting minimizes control hardware and setup complexity, lowering upfront costs and accelerating commissioning for 3-phase pump systems at 60 Hz. Application insights show faster ROI in municipal and agricultural pumping projects. Feature → Business Impact → Application: Premium Efficiency (NEMA 12-12) with Insulation Class F lowers energy consumption and heat generation, driving measurable energy savings over the motor’s service life in continuous duty pumps and cooling towers. Feature → Business Impact → Application: Dual voltage 230/460 V capability with 3-phase operation offers design flexibility when upgrading systems or coordinating with existing electrical infrastructure, reducing rewiring effort and stock variety for water and chemical processing pumps. Feature → Business Impact → Application: 6205 Ball bearings and a 0.63 in shaft diameter enhance reliability under high torque loads, decreasing unplanned downtime in high-flow pumping tasks and enabling longer service intervals in oil and gas transfer lines. Feature → Business Impact → Application: 56J frame, Horizontal mounting, and F1 position support straightforward retrofits and standardization across multi-pump installations in HVAC, irrigation, and process automation projects.
Get a Quick Quote for a ABB 7BEJM3554
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEJM3554?
Enquire Now
FAQs
The 7BEJM3554 uses a 56J frame with C-face drive end flange and horizontal mounting, designed for direct replacement or retrofit in common 56J pump installations. It supports 3-phase, 60 Hz operation at 230/460 V, simplifying compatibility with established VFDs or direct-on-line starts in existing plant layouts.
Key specs include 1.5 HP output, 1770 r/min rated speed, 1800 r/min synchronous speed, 60 Hz frequency, dual voltage 230/460 V, 3 phases, NEMA Design B, insulation class F, and service factor 1.15. The motor uses a TEFC enclosure and steel frame (56J) for rugged operation in pump applications.
Yes. The TEFC enclosure protects windings from dust and moisture, while a steel frame and 40 °C ambient rating support continuous operation in challenging environments such as water treatment, dredging, and chemical processing pump setups.
The motor is certified with CSA, CSA EEV, and UR, providing recognized safety and electrical compliance across North American and international markets. This backing supports regulatory approvals for industrial pump installations.
Premium efficiency reduces energy costs over the motor’s life, while robust bearings and a proven 56J/C-face design minimize downtime and maintenance. Direct On Line starting reduces control complexity and hardware, delivering faster commissioning and lower total cost of ownership for pump systems.
