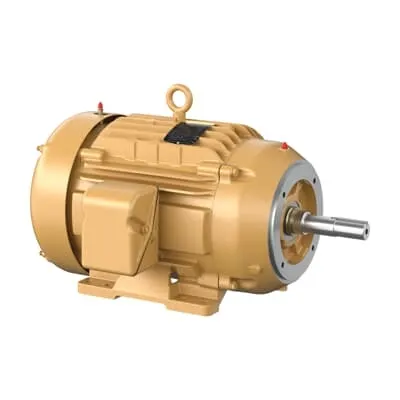

ABB 7BEJMM2333T-5 Pump Motor - 575V TEFC, CSA CSA EEV UR
Part Number: 7BEJMM2333T-5
Quick Summary
The ABB 7BEJMM2333T-5 pump motor delivers 15 HP at 575 V for reliable close-coupled pumping in industrial systems. Many plants struggle with downtime from mismatched drives, misalignment, or inadequate enclosures that fail in harsh environments. This motor carries CSA EEV and UR certifications, along with a TEFC enclosure and NEMA design, ensuring safe operation and compliance in demanding settings. Its premium efficiency rating helps reduce energy consumption and running costs, while the 60 Hz, 3-phase, 254JM frame fits standard pump assemblies. With standard stock at multiple warehouses, it supports fast procurement and predictable maintenance, enabling operators to minimize cycle time and maximize line uptime.
Product Information
Extended Description
7BEJMM2333T-5 ABB: Pump Motor 15 Hp 575 V (EJMM2333T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
15HP,1765RPM,3PH,60HZ,254JM,0944M,T
Ambient Temperature
40 °C
Bearing
6309, Ball
Bearing NDE
6208
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM2333T-5
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
09LYP014: Dimension Sheet
Drive End Flange Type
C-Face
ETIM 7
EC001851 - Electric motor
Efficiency Level
Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
TEFC
Frame Material
Iron
Frame Size
254
Frequency (f)
60 Hz
Global Commercial Alias
EJMM2333T-5
Gross Volume
14448.906 in³
Gross Weight
127.006 kg
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
F
Invoice Description
15HP,1765RPM,3PH,60HZ,254JM,0944M,TEFC,F
Made To Order
No
Medium Description
Close Coupled Pump, 15 HP, 1800 RPM, Frame Size 254Jm, C-Face Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (EJMM2333T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
254JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
15 Hp
Power Factor
83 %
Product Name
Close Coupled Pump
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
127.006 kg
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
14.6 A
Rated Efficiency
92.40 %
Rated Speed
1765 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.25 in
Short Description
15 HP, 1800 RPM, Frame Size 254Jm, C-Face, 3 PH, TEFC, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
575 V
Feature: TEFC (Totally Enclosed Fan Cooled) enclosure and C-Face mounting improve ruggedness in harsh environments. Business Impact: Reduces exposure to dust, moisture, and splash, lowering maintenance costs and extending motor life. Application: Ideal for close-coupled pump configurations in chemical processing and water treatment plants, where reliability and enclosure protection are essential. Feature: 15 HP, 575 V, 60 Hz, three-phase performance. Business Impact: Delivers consistent torque and stable startup against heavy pump loads, improving process control and minimizing downtime. Application: Suitable for vertical and horizontal pump installations in industrial facilities with standard 575V power distribution. Feature: Frame Size 254JM, Shaft Diameter 1.25 in, Foot Mounted with Horizontal Mounting. Business Impact: Simplifies retrofit and installation with common flange and shaft dimensions, reducing custom fabrication and installation time. Application: retrofit projects in legacy pump trains and new builds using standard 254JM components. Feature: Efficiency 92.40% and Power Factor ~0.83. Business Impact: Drives meaningful energy savings and better power quality, decreasing operating costs over the motor’s life. Application: Continuous duty pumping applications where energy intensity is a concern, such as HVAC and process streams. Feature: Stocked At Warehouses (US and China) with 0-day Lead Time. Business Impact: Accelerates procurement, minimizes downtime, and improves maintenance planning with predictable delivery. Application: Global manufacturing facilities requiring rapid replacements and consistent supply. Feature: Certifications (CSA EEV, UR, CSA). Business Impact: Ensures regulatory compliance and risk reduction in safety-critical pump systems. Application: Environments demanding recognized certification marks for industrial controls and motors across North America.
Get a Quick Quote for a ABB 7BEJMM2333T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEJMM2333T-5?
Enquire Now
FAQs
The motor uses a horizontal, foot-mounted configuration with a C-face mounting and a 254JM frame. It aligns with standard pump flanges used in close-coupled pump assemblies and is designed for direct-on-line starting in 3-phase 60 Hz, 575 V systems, simplifying retrofits and new installations alike.
Key specs include 15 HP output, 575 V voltage rating, 60 Hz frequency, 3-phase operation, rated current around 14.6 A, efficiency of 92.4%, and a power factor of 0.83. The motor is designed as a 4-pole (1765 r/min) NEMA design A unit with a TEFC enclosure, suitable for continuous-duty applications.
This close-coupled pump motor is well-suited for water treatment, chemical processing, and HVAC pumping where a reliable 15 HP, 575 V solution is needed. Its TEFC enclosure and rugged 254JM frame support both new installations and retrofits, particularly where space is constrained and direct coupling is preferred.
The ABB 7BEJMM2333T-5 carries CSA EEV and UR certifications, with CSA as the country of origin designation in the data. These marks support compliance in North American industrial environments and facilitate safer procurement for regulated facilities.
With stock available at multiple warehouses (including US and China) and a 0-day lead time, procurement risks and downtime are minimized. The unit’s high-efficiency rating reduces energy costs, while standard spare parts and straightforward installation lower maintenance expenses and overall lifecycle cost.
