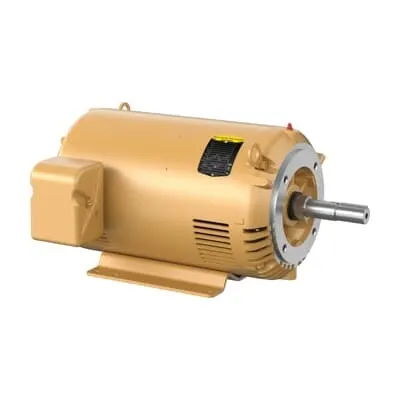

ABB 7BEJMM2516T Pump Motor - OPSB Enclosure, 25HP, 3515RPM
Part Number: 7BEJMM2516T
Quick Summary
7BEJMM2516T pump motor delivers reliable 25 HP, 3-phase pumping performance for industrial systems. Engineers often struggle with mismatched frames, voltage compatibility, and maintenance when upgrading aging motors. This model carries CSA, UR, and NEMA-aligned standards, plus IE3 premium efficiency, supporting compliance and long-term cost savings. Designed for close-coupled pump applications operating at 230/460 V and 60 Hz, it uses a 256JM frame with a C-face drive end flange and foot-mounting to simplify installation, while delivering predictable performance and reduced downtime for facilities investing in durable, energy-efficient motor solutions.
Product Information
Extended Description
7BEJMM2516T ABB: Pump Motor 25 Hp 230 V (EJMM2516T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
25HP,3515RPM,3PH,60HZ,256JM,3938M,O
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6208 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM2516T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
39LYK062: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
EJMM2516T
Gross Volume
9651.933 in³
Gross Weight
207 lb
Horsepower Rating UL/CSA
25.000 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
25HP,3515RPM,3PH,60HZ,256JM,3938M,OPSB,F
Lubrication
Regreasable
Made To Order
No
Medium Description
Close Coupled Pump, 25 HP, 3600 RPM, Frame Size 256Jm, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (EJMM2516T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
25 Hp
Power Factor
89 %
Product Name
Close Coupled Pump
Product Net Depth / Length
27 in
Product Net Height
17.438 in
Product Net Weight
207 lb
Product Net Width
20.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
56 A | 28 A
Rated Efficiency
91.70 %
Rated Speed
3515 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.25 in
Short Description
25 HP, 3600 RPM, Frame Size 256Jm, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
G
Voltage Rating
230 V | 460 V
Frame size 256JM with a 1.25 in shaft and C-Face drive end flange enables a compact footprint and straightforward mounting; this translates to faster installation and reduced alignment risk in retrofit projects for fixed-speed pump systems. The OPSB enclosure provides robust protection in harsh industrial environments, while direct-on-line starting at 230/460 V minimizes wiring complexity and start-up time, delivering lower total installed cost. IE3 premium efficiency and an insulation class of F reduce operating losses, supporting measurable energy savings of pumping systems with high annual runtime. Regreasable lubrication supports extended maintenance intervals and improved reliability in continuous-duty applications, lowering spare-parts consumption and service disruptions. The motor’s 256JM frame, 60 Hz operation, and 3-phase design ensure compatibility with standard pump assemblies and widely available spare parts, improving procurement velocity and lifecycle value.
