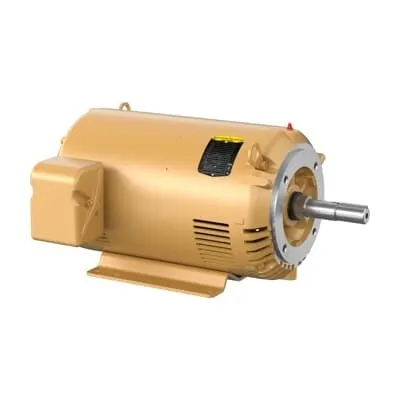

ABB 7BEJMM2516T-G Pump Motor - OPSB IP23 Certified
Part Number: 7BEJMM2516T-G
Quick Summary
Pump motor 25 HP at 230 V powers close-coupled pumps in industrial systems, delivering reliable start-up and steady torque for demanding water transfer and processing tasks. For engineers facing downtime, retrofit complexities, and energy waste, this motor provides a straightforward 3-phase solution that fits tight installation envelopes and integrates with existing drives and control schemes. With CSA, UR, and CSA EEV certifications and a robust NEMA-compatibility profile, it meets critical regulatory requirements while ensuring safe operation across basin and plant environments. Designed for 3-phase 60 Hz service at 230/460 V, it delivers energy-efficient performance that helps reduce total cost of ownership in industrial pumping applications.
Product Information
Extended Description
7BEJMM2516T-G ABB: Pump Motor 25 Hp 230 V (EJMM2516T-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
38M 2P OPSB HOR 256JM SE
Ambient Temperature
40 °C
Bearing
6309 | Ball
Bearing NDE
6208 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM2516T-G
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Dimension Diagram
39LYE447: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
256
Frequency (f)
60 Hz
Global Commercial Alias
EJMM2516T-G
Gross Volume
9651.933 in³
Gross Weight
233 lb
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IP Class
IP23
Insulation Class
F
Invoice Description
38M 2P OPSB HOR 256JM SE
Made To Order
No
Medium Description
Close Coupled Pump, 25 HP, 3600 RPM, Frame Size 256Jm, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (EJMM2516T-G)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
256JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
25 Hp
Power Factor
89 %
Product Name
Close Coupled Pump
Product Net Depth / Length
27 in
Product Net Height
17.438 in
Product Net Weight
233 lb
Product Net Width
20.5 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
56 A | 28 A
Rated Efficiency
91.70 %
Rated Speed
3515 r/min
Replaced Product ID (OLD)
7B39E447X424G4
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
1.25 in
Shaft Grounding
Shaft Grounding
Short Description
25 HP, 3600 RPM, Frame Size 256Jm, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
230 V | 460 V
The 25 HP rating at 230 V provides substantial starting torque and reliable steady-state performance for close-coupled pump configurations in demanding industrial lines. This rating avoids oversizing drives while delivering consistent flow for water transfer and processing tasks, helping to optimize system design and capital expenditure. Operating at 60 Hz with 230/460 V three-phase supply ensures predictable speed, reduced pulsations, and easier integration with existing VFDs and control architectures. Users gain improved process stability and longer equipment life due to stable torque delivery and minimized electrical stress on connected pumps. The OPSB enclosure and IP23 protection provide rugged yet accessible protection against dust, humidity, and light washdown environments found in manufacturing floors. This protective combination lowers maintenance interruptions, simplifies preventive maintenance scheduling, and helps ensure compliance with facility safety standards. Frame size 256JM with a C-face drive end flange offers flexible mounting options and rapid alignment with standard close-coupled pump assemblies. Foot-mounted bases and a 1.25 in shaft diameter enhance installation versatility, reducing alignment time and the need for custom adapters. IE3 premium efficiency supports modern energy codes and delivers measurable operating-cost reductions across the motor’s service life. Combined with direct-on-line starting and NEMA design compatibility, this enables straightforward commissioning, easier maintenance, and better spare-part availability. Direct-on-line starting paired with a 2-pole, 3515 rpm design provides reliable performance for continuous-duty pumping applications. Shaft grounding, a 60-minute duty time, and robust framing further reinforce durability in challenging plant environments. The model also utilizes 6309 ball bearings for extended life and reduced maintenance.
