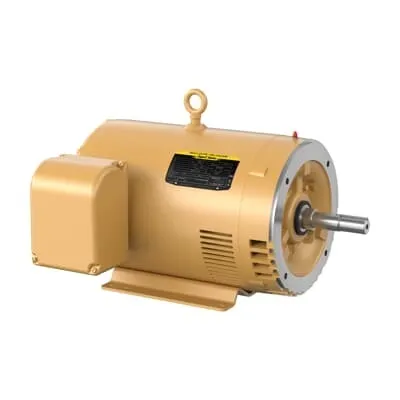

ABB 7BEJMM2531T Pump Motor - 25HP IE3 Premium Efficiency
Part Number: 7BEJMM2531T
Quick Summary
The ABB 7BEJMM2531T Pump Motor drives close-coupled pumps in industrial fluid handling. It delivers reliable 25 HP performance at 1775 rpm and dual voltage 230/460 V for versatile installations. Users often struggle with energy waste, overheating, and maintenance complexity in demanding 60 Hz, 3-phase pump applications. This motor addresses those challenges with premium IE3 efficiency, robust OPSB enclosure, and NEMA-compliant design, supported by CSA/EV certification and UR recognition for safe, compliant operation. With a footprint tailored for retrofit and new builds, it reduces lifecycle costs while supporting high uptime. The combination of direct-on-line starting, regreasable bearings, and a C-face, foot-mounted base streamlines installation and service in water treatment, chemical processing, and general industrial pumps.
Product Information
Extended Description
7BEJMM2531T ABB: Pump Motor 25 Hp 230 V (EJMM2531T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
25HP,1775RPM,3PH,60HZ,284JM,4050M,O
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6309 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM2531T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
40LYE211: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
284
Frequency (f)
60 Hz
Global Commercial Alias
EJMM2531T
Gross Volume
14448.906 in³
Gross Weight
317 lb
Horsepower Rating UL/CSA
25.000 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
25HP,1775RPM,3PH,60HZ,284JM,4050M,OPSB,F
Lubrication
Regreasable
Made To Order
No
Medium Description
Close Coupled Pump, 25 HP, 1800 RPM, Frame Size 284Jm, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (EJMM2531T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
284JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
25 Hp
Power Factor
82 %
Product Name
Close Coupled Pump
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
317 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
60 A | 30 A
Rated Efficiency
93.60 %
Rated Speed
1775 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.25 in
Short Description
25 HP, 1800 RPM, Frame Size 284Jm, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
G
Voltage Rating
230 V | 460 V
Premium IE3 efficiency directly lowers energy costs for 25 HP pump motors, delivering up to 93.6% rated efficiency and a service factor of 1.15. This translates to measurable energy savings in continuous-duty applications where pump head and flow demands drive long operating hours. The motor runs at 1775 r/min on a 60 Hz, 230/460 V three-phase supply, with direct-on-line starting for simple electrical integration and dependable performance in water handling or chemical processing. Close-coupled pump design minimizes alignment tasks and reduces leakage paths, delivering a compact, maintenance-friendly footprint. The OPSB enclosure provides robust protection against dust and moisture in challenging environments, enabling reliable operation in plants and outdoor installations. Construction features such as a 284 JM frame, C-face drive end flange, and foot-mounted base simplify installation and retrofit projects. The 31 inch net length and 23.75 inch width fit common base plates, while a 1.25 inch shaft diameter supports standard pump couplings and belts. Regreasable ball bearings (6312 and 6309) extend bearing life in tough process conditions, complemented by a 60 A/30 A rated current and 1.15 service factor for heavy-duty duty cycles. The motor is designed for continuous duty with a 40 C ambient rating and up to 1000 m altitude, ensuring reliability in diverse plants. Stocked at multiple warehouses with 0 day lead time, this motor supports fast project ramp-ups. Its compact, rugged design and straightforward maintenance reduce downtime and total cost of ownership in industrial pumps.
