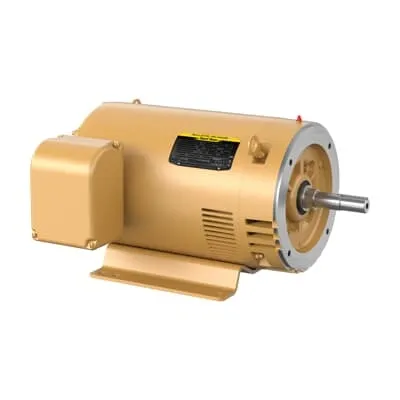

ABB 7BEJMM2539T Pump Motor - OPSB 40HP, 1770RPM, 3PH
Part Number: 7BEJMM2539T
Quick Summary
ABB 7BEJMM2539T is a close-coupled pump motor designed for reliable 40 HP pumping in industrial fluid systems. End users often struggle to find a motor that meets efficiency targets, fits existing drive schemes, and arrives when needed for critical processes. This model carries CSA, CSA EEV, and UR certifications, along with IE3 premium efficiency, supporting regulatory compliance and long-term energy savings. With 230/460 V operation, 3-phase power, and a rugged OPSB enclosure, it integrates smoothly with standard electrical assemblies and replacement programs, helping procurement reduce risk, simplify stocking, and optimize maintenance planning for demanding applications.
Product Information
Extended Description
7BEJMM2539T ABB: Pump Motor 40 Hp 230 V (EJMM2539T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
40HP,1770RPM,3PH,60HZ,324JM,4064M,O
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6309 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM2539T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
A
Dimension Diagram
40LYE214: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
324
Frequency (f)
60 Hz
Global Commercial Alias
EJMM2539T
Gross Volume
14448.906 in³
Gross Weight
417 lb
Horsepower Rating UL/CSA
40.000 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
40HP,1770RPM,3PH,60HZ,324JM,4064M,OPSB,F
Lubrication
Regreasable
Made To Order
No
Medium Description
Close Coupled Pump, 40 HP, 1800 RPM, Frame Size 324Jm, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (EJMM2539T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
324JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
40 Hp
Power Factor
82 %
Product Name
Close Coupled Pump
Product Net Depth / Length
31 in
Product Net Height
19.625 in
Product Net Weight
417 lb
Product Net Width
23.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
98 A | 49 A
Rated Efficiency
94.10 %
Rated Speed
1770 r/min
Replaced Product ID (OLD)
7B40E214X166G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.25 in
Short Description
40 HP, 1800 RPM, Frame Size 324Jm, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
H
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 40 HP core output at 1770 RPM in a 324JM frame provides robust pumping performance for process water, cooling circuits, and general industrial transfer systems, improving throughput while keeping energy use predictable. This directly reduces operating costs and supports consistent flow in demanding environments. Feature → Business Impact → Application: Direct On Line starting and a 1.15 service factor deliver reliable starts and resilience under fluctuating loads, minimizing startup failures and unplanned downtime in continuous processes. Feature → Business Impact → Application: IE3 premium efficiency and regulatory-aligned certifications (CSA, CSA EEV, UR) translate to lower energy bills and easier compliance audits across multiple facilities, particularly in energy-intensive plants. Feature → Business Impact → Application: OPSB enclosure with C-face mounting and foot-mounted configuration simplifies installation, reduces wiring complexity, and enables interchangeable replacements in field-service scenarios. Feature → Business Impact → Application: 230/460 V dual-voltage rating supports flexible electrical infrastructure, reducing the need for multiple different motor variants and enabling quicker procurement decisions. Feature → Business Impact → Application: Regreasable bearings and a robust 6312/6309 bearing setup extend bearing life, lowering maintenance frequency and total cost of ownership in high-cycle pumping. Feature → Business Impact → Application: 0-day lead time and wide warehouse stocking improve project timelines by accelerating commissioning, commissioning tests, and on-site startup for new or refreshed pumping loops.
Get a Quick Quote for a ABB 7BEJMM2539T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEJMM2539T?
Enquire Now
FAQs
ABB 7BEJMM2539T is designed for close-coupled pump configurations with OPSB protection. It supports foot-mounted and C-face mounting on a 324JM frame, accepts 230/460 V 3-phase supply, and is suitable for direct-on-line starts. This simplifies retrofit projects and minimizes rework in existing fluid-handling lines.
The motor runs on 230 or 460 V, 3-phase, at 60 Hz, with direct-on-line starting. It delivers 40 HP at 1770 RPM with a 1.15 service factor. These specs support robust pump performance while enabling straightforward integration with standard drive panels and electrical cabinets.
Yes. With a continuous-duty design, a 1.15 service factor, and 1770 RPM synchronous speed, the 7BEJMM2539T is well-suited for steady-state pumping in process water and cooling loops. Regreasable bearings further enhance reliability in high-cycle environments, reducing unscheduled downtime.
The motor carries CSA, CSA EEV, and UR recognition, along with IE3 premium efficiency. These certifications support compliance with safety and energy efficiency standards, simplifying audits and reducing lifecycle risk across multiple plant sites.
Expect lower maintenance with regreasable bearings, a durable OPSB enclosure, and a robust 6312/6309 bearing arrangement. The IE3 efficiency and reliable DOL starting translate to reduced energy costs and faster ROI, especially in high-use pumping applications.
