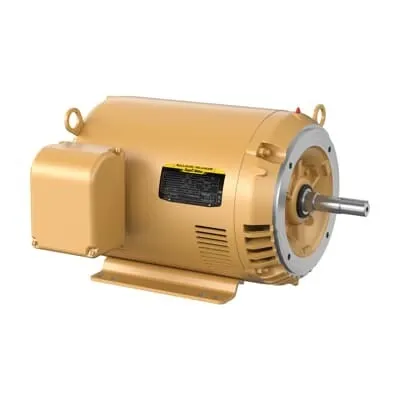

ABB 7BEJMM2542T Pump Motor - OPSB Enclosure
Part Number: 7BEJMM2542T
Quick Summary
ABB 7BEJMM2542T Pump Motor is a 50 HP, three‑phase motor designed for close‑coupled pump applications in industrial water treatment and process systems. Engineers often face downtime and energy waste from undersized drives or unreliable enclosures, making reliability and efficiency top priorities. This unit combines premium IE3 efficiency with a rugged OPSB enclosure, CSA and UR certifications, and immediate stock availability to support compliant operation and reduced lifecycle costs. With the 230/460 V configuration and 60 Hz delivery, it integrates smoothly into existing plant layouts while delivering strong torque, dependable performance, and a clear business value through lower operating expenses and faster project timelines.
Product Information
Extended Description
7BEJMM2542T ABB: Pump Motor 50 Hp 230 V (EJMM2542T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
50HP,3550RPM,3PH,60HZ,324JM,4248M,O
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6312 | Ball
Bearing NDE
6311 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM2542T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015230
Design
B
Dimension Diagram
42LYF059: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
IE3 | Not Regulated / Exempt | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
324
Frequency (f)
60 Hz
Global Commercial Alias
EJMM2542T
Gross Volume
18748.226 in³
Gross Weight
421 lb
Horsepower Rating UL/CSA
50.000 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
50HP,3550RPM,3PH,60HZ,324JM,4248M,OPSB,F
Lubrication
Regreasable
Made To Order
No
Medium Description
Close Coupled Pump, 50 HP, 3600 RPM, Frame Size 324Jm, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (EJMM2542T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
324JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
A
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
50 Hp
Power Factor
87 %
Product Name
Close Coupled Pump
Product Net Depth / Length
33.75 in
Product Net Height
21.625 in
Product Net Weight
421 lb
Product Net Width
25.688 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
116 A | 58 A
Rated Efficiency
93 %
Rated Speed
3550 r/min
Replaced Product ID (OLD)
7B42F059W284G1
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
1.25 in
Short Description
50 HP, 3600 RPM, Frame Size 324Jm, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
H
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: Premium IE3 efficiency reduces energy consumption, lowering operating costs over the motor’s life and improving sustainability metrics for pumped liquids in chemical processing and water treatment. Application: long-run pump stations and high‑duty applications where energy spend is a major concern. Feature → Direct-on-Line starting with 3‑phase 60 Hz power simplifies installation and reduces startup equipment needs, accelerating commissioning while maintaining reliable performance. Application: new builds and retrofits in packaging, process lines, and municipal water systems. Feature → OPSB enclosure and C‑Face drive end flange (foot mounted) deliver robust protection in harsh environments and straightforward mounting, enabling rapid installation with minimal enclosure upgrades. Application: rugged industrial plants with exposure to dust, moisture, or chemicals. Feature → Frame 324JM, shaft diameter 1.25 in, and 3550 r/min rating provide precise fit in standard baseplates and compatible couplings, reducing modification work. Application: retrofit projects and OEM pump assemblies. Feature → Regreasable bearings and 60 Min duty support reliable, low-maintenance operation, extending service intervals and reducing maintenance costs. Application: high‑throughput pumping processes with continuous or near-continuous operation. Feature → Stocked At Warehouses (multiple regions) and 0 day lead time enable fast fulfillment, helping projects stay on schedule and reducing downtime risk. Application: urgent installations, capital projects, and service contracts requiring quick replacement motors.
Get a Quick Quote for a ABB 7BEJMM2542T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEJMM2542T?
Enquire Now
FAQs
Yes. The motor is rated for 230 V and 460 V in a 3‑phase configuration at 60 Hz, making it suitable for a wide range of pump installations. Wire sizing and starter selection should follow NEC guidelines and the motor’s IEC/CSA documentation to ensure proper protection and torque delivery during starting.
The OPSB enclosure provides robust protection in typical industrial environments. With a C‑Face drive end flange and foot mounting, installation is straightforward on standard pump bases. Ensure correct alignment, torque on fasteners, and compatible coupling to minimize vibration and maximize bearing life.
The motor carries CSA, CSA EEV, and UR certifications, ensuring compliance with safety and performance requirements in North America. It also meets IE3 efficiency expectations, reducing energy use. These certifications support regulatory compliance, safer operation, and lower total cost of ownership in regulated industries.
Lead time is listed as 0 day, and stock is available at multiple warehouses (US, China, etc.). This enables rapid procurement and faster project ramp‑ups, reducing downtime risks during replacements or new installations.
Regreasable bearings and a continuous duty rating support longer maintenance intervals and stable process performance. The 50 HP rating combined with IE3 efficiency lowers energy costs over the motor’s life, delivering a favorable return on investment in pumping applications across water treatment and industrial processes.
