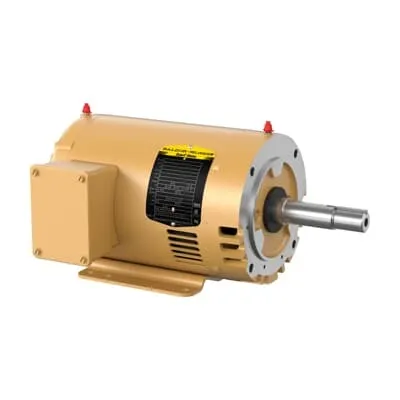

ABB EJMM3154T Pump Motor - 1.5HP, 3PH, OPSB Enclosure
Part Number: 7BEJMM3154T
Quick Summary
ABB EJMM3154T Pump Motor powers close-coupled pumping systems in water and fluid handling. Many engineers face downtime and energy-cost pressure when selecting a motor for continuous service. This model delivers IE3 premium efficiency, a rugged OPSB enclosure, and multi-region certifications (CSA, CSA EEV, UR) for global compliance. Designed for 230/460 V at 60 Hz, the 145JM frame with C-Face mounting simplifies retrofit and field installation. Its robust bearings and regreasable lubrication extend service intervals, reducing maintenance burdens while meeting strict safety and performance standards. In practice, this motor supports reliable operation in demanding environments, helping plants meet uptime targets and energy goals without compromising on performance or serviceability.
Product Information
Extended Description
7BEJMM3154T ABB: Pump Motor 1.5 Hp 230 V (EJMM3154T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1770RPM,3PH,60HZ,145JM,3524M,
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM3154T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYL509: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
EJMM3154T
Gross Volume
3496.049 in³
Gross Weight
38 lb
Horsepower Rating UL/CSA
1.500 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
1.5HP,1770RPM,3PH,60HZ,145JM,3524M,OPSB
Lubrication
Regreasable
Made To Order
No
Medium Description
Close Coupled Pump, 1.5 HP, 1800 RPM, Frame Size 145Jm, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (EJMM3154T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
72 %
Product Name
Close Coupled Pump
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
38 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.6 A | 2.3 A
Rated Efficiency
86.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
1.5 HP, 1800 RPM, Frame Size 145Jm, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
L
Voltage Rating
230 V | 460 V
Feature → 1.5 HP, 3-phase motor with 60 Hz operation and 230/460 V rating. Business Impact → Provides consistent torque and reliable start-up with flexible power options, reducing energy spikes and downtime. Application → Ideal for close-coupled pump assemblies in industrial water transfer and fluid handling systems. Feature → OPSB enclosure and 145JM frame with C-Face mounting. Business Impact → Delivers robust protection against dust and moisture while simplifying alignment and installation. Application → Supports rapid retrofits on existing pump bases and new builds with standard mounting patterns. Feature → IE3 Premium Efficiency and Direct-On-Line starting. Business Impact → Lowers energy consumption and simplifies electrical installation, reducing lifecycle costs and cabling requirements. Application → Suited for continuous-duty pumping in municipal water, chemical processing, and general industrial lines. Feature → Regreasable bearings (6206/6203) and 1.15 service factor. Business Impact → Extends maintenance intervals, enhances reliability under heavy loads, and tolerates higher ambient temperatures. Application → Durable for long-running pumps in challenging environments with 40 °C ambient temperature. Feature → Frame size 145JM, 1800 r/min synchronous speed, 3-phase, 60 Hz, 4-pole design. Business Impact → Compact footprint with predictable speed and low vibration, simplifying mechanical design and panel integration. Application → Ideal for tight pump rooms and automation panels in industrial facilities. Feature → 230/460 V dual-voltage rating and direct-on-line starting. Business Impact → Flexible procurement across global sites and reduced electrical engineering overhead. Application → Suitable for worldwide deployment in plants requiring standard US/NA voltage compatibility.
Get a Quick Quote for a ABB 7BEJMM3154T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEJMM3154T?
Enquire Now
FAQs
The EJMM3154T supports C-Face mounting on a 145JM frame with foot-mounted capability, and operates at 230/460 V, 60 Hz. It is ideal for close-coupled pump assemblies in industrial water transfer and fluid handling, with direct-on-line starting for straightforward electrical integration.
This motor is IE3 premium efficiency and carries CSA, CSA EEV, and UR certifications, with NEMA standards referenced. These attributes support energy savings, regulatory compliance, and safe operation across multiple regions.
Yes. With a 1.15 service factor, 60-minute duty time rating, 1800 r/min synchronous speed, and 3-phase operation, it is well-suited for continuous or long-cycle pumping in water treatment and processing environments.
The OPSB enclosure provides robust environmental protection against dust and moisture, while the design includes regreasable bearings and 40 °C ambient tolerance to support reliable operation in typical industrial spaces.
Regreasable bearings, high-efficiency IE3 rating, and a durable OPSB enclosure reduce maintenance intervals and energy costs, lowering downtime and extending service life. Combined with fast lead times and broad stock availability, this translates to faster project timelines and predictable ROI.
