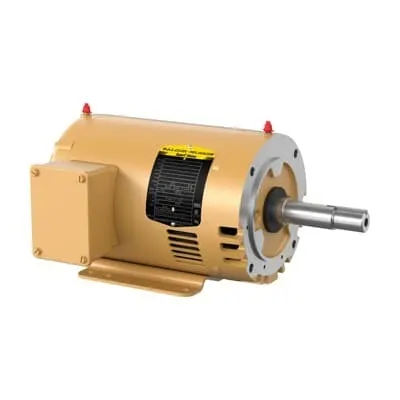

ABB 7BEJMM3154T-G Pump Motor - CSA EEV UR Certified
Part Number: 7BEJMM3154T-G
Quick Summary
ABB 7BEJMM3154T-G Pump Motor delivers 1.5 HP at 230 V for close‑coupled pump systems in industrial applications. Engineers often face tight space, rugged environments, and the need for reliable sourcing across multiple warehouses, which can slow project timelines. This motor carries CSA, CSA EEV, and UR certifications, and aligns with IE3 premium efficiency, enhancing compliance and operating economy. With an OPSB enclosure, 145JM frame, and 3‑phase performance, it balances performance with install simplicity. The result is a dependable, standardized component that supports faster procurement and consistent maintenance across global facilities, enabling predictable uptime and lower total cost of ownership.
Product Information
Extended Description
7BEJMM3154T-G ABB: Pump Motor 1.5 Hp 230 V (EJMM3154T-G)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
1.5HP,1770RPM,3PH,60HZ,145JM,3524M,
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM3154T-G
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYZ929: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
EJMM3154T-G
Gross Volume
3496.049 in³
Gross Weight
41 lb
Horsepower Rating UL/CSA
1.500 Hp
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
H
Invoice Description
1.5HP,1770RPM,3PH,60HZ,145JM,3524M,OPSB
Made To Order
No
Medium Description
Close Coupled Pump, 1.5 HP, 1800 RPM, Frame Size 145Jm, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (EJMM3154T-G)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
1.5 Hp
Power Factor
72 %
Product Name
Close Coupled Pump
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
41 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
4.6 A | 2.3 A
Rated Efficiency
86.50 %
Rated Speed
1770 r/min
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Shaft Grounding
Shaft Grounding
Short Description
1.5 HP, 1800 RPM, Frame Size 145Jm, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
230 V | 460 V
Feature → Business Impact → Application: The 1.5 HP, 230/460 V, 3-phase rating delivers sufficient power density for close‑coupled pump configurations, reducing motor size while maintaining headroom for variable loads. This translates to smaller space requirements and easier retrofits in existing equipment lines, especially for systems needing a compact footprint in chemical processing or water handling. Feature → Business Impact → Application: Direct On Line starting simplifies drives and reduces the need for soft starters in mild to moderate load profiles, enabling faster commissioning and lower upfront cost in new installations and service upgrades. Feature → Business Impact → Application: OPSB enclosure provides robust protection in standard industrial environments, improving resistance to dust and moisture ingress and extending service life in manufacturing floors and outdoor pump stations. Feature → Business Impact → Application: Frame 145JM with C-Face mounting and foot mounting options delivers straightforward installation and alignment with common pump adapters, lowering installation time and risk during plant upgrades. Feature → Business Impact → Application: IE3 premium efficiency, 60 Hz, and NEMA design code B contribute to energy savings and reduced utility costs over the motor’s life, which is crucial for continuous duty in water transfer, cooling circuits, and process fluids. Feature → Business Impact → Application: Stocked at multiple warehouses and a 0 day lead time, enabling fast procurement, minimizing downtime, and supporting just‑in‑time maintenance programs across regional operations. Industry context notes: The combination of 3‑phase robustness, 4‑pole performance at 1770 r/min (syn 1800 r/min), and a 1.15 service factor makes this motor well-suited for continuous duty in pumping stations, HVAC pumps, and light process duties where reliability and availability directly affect throughput and OEE.
Get a Quick Quote for a ABB 7BEJMM3154T-G
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEJMM3154T-G?
Enquire Now
FAQs
Yes. The motor uses a 145JM frame with C-Face mounting and is supplied as a foot-mounted unit, simplifying replacement in standard pump assemblies. When retrofitting, verify alignment with existing pump couplings and ensure adapters support 3‑phase, 60 Hz operation at 230/460 V. Consider DOL starters for straightforward drive control and confirm OPSB enclosure compatibility with your enclosure class and environment.
The motor supports 230 V and 460 V in a 3‑phase configuration, with a rated current around 4.6 A (typical) and a nominal speed of 1770 r/min at 60 Hz. It is designed for continuous duty with a 1.15 service factor, making it suitable for steady pumping loads and fluid transfer applications.
Yes. With an OPSB enclosure, IE3 premium efficiency, and a continuous duty rating, the EJMM3154T-G is well suited for long-running pumping tasks in industrial plants, water treatment, and HVAC pumping loops. Its 145JM frame and C-face mounting also help maintain alignment and reduce maintenance overhead.
The motor carries CSA, CSA EEV, and UR certifications, signaling conformance to North American electrical safety and efficiency standards. This aids in regulatory compliance, reduces qualification risk for projects, and supports safer integration into standardized control architectures.
With stock at multiple warehouses and a 0 day lead time, procurement is faster, reducing downtime and inventory carrying costs. Reliable availability supports planned maintenance, faster spares replenishment, and improved overall equipment effectiveness (OEE) in production lines.
