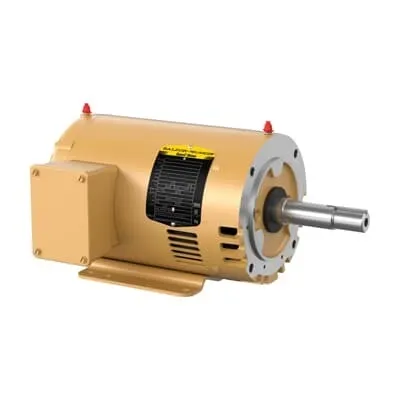

ABB 7BEJMM3157T Pump Motor - IE3 Premium
Part Number: 7BEJMM3157T
Quick Summary
Pump Motor ABB 7BEJMM3157T delivers reliable power for close-coupled pumping in commercial and light-industrial systems. Owners often face downtime due to inefficient motors and mismatched mounting or voltage options, which drives higher operating costs. This model meets IE3 Premium Efficiency, CSA/UR safety certifications, and RoHS compliance, signaling strong reliability and regulatory alignment. For procurement teams, it offers 3-phase operation at 230/460 V with a robust OPSB enclosure, improving longevity and service intervals. The compact 145JM frame and C-Face mounting simplify installation, while the 0-day lead time and US-origin stock streamline supply and uptime. In practice, it supports consistent performance in water transfer, HVAC, and process pumping applications.
Product Information
Extended Description
7BEJMM3157T ABB: Pump Motor 2 Hp 230 V (EJMM3157T)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
2HP,1760RPM,3PH,60HZ,145JM,3528M,OP
Altitude
1000 m
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM3157T
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Design
B
Dimension Diagram
35LYLL509: Dimension Sheet
Direction of Rotation
Both sides
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE3 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPSB
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
EJMM3157T
Gross Volume
3496.049 in³
Gross Weight
44 lb
Horsepower Rating UL/CSA
2.000 Hp
IC Class
OPSB
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
IE Class Data (50 Hz)
IE Class NA
IE Class Data (60 Hz)
IE Class NA
IM Class
F1
Insulation Class
F
Invoice Description
2HP,1760RPM,3PH,60HZ,145JM,3528M,OPSB,N
Lubrication
Regreasable
Made To Order
No
Medium Description
Close Coupled Pump, 2 HP, 1800 RPM, Frame Size 145Jm, C-Face Mounting, 3 Phase, OPSB Enclosure, 230/460 V, 60 Hz (EJMM3157T)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
4P
Number of Poles (High)
4
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
2 Hp
Power Factor
75 %
Product Name
Close Coupled Pump
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
44 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
5.6 A | 2.8 A
Rated Efficiency
86.50 %
Rated Speed
1755 r/min
RoHS Information
RoHS Compliant
Selling Unit of Measure
piece
Service Factor
1.15
Service Factor Percentage
1.15 %
Shaft Diameter
0.88 in
Short Description
2 HP, 1800 RPM, Frame Size 145Jm, C-Face, 3 PH, OPSB, 230/460 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
1800 r/min
Temperature Class Default
--
Two Speed Motor
No
Type of Duty
Continuous
UNSPSC
26101107
Voltage Code
K
Voltage Rating
230 V | 460 V
IE3 Premium Efficiency in a 2 HP, 1760 RPM, 3-phase motor reduces energy consumption, lowers cooling loads, and supports compliance with modern energy codes. This efficiency translates to measurable cost savings over the motor's life and helps meet corporate sustainability targets. It is well-suited for 60 Hz pump applications such as close-coupled water transfer, HVAC circulation, and process pumping. OPSB enclosure with a 145JM frame provides robust protection and straightforward installation. The drive end flange is C-face, and the base is foot-mounted, enabling horizontal orientation and simplified mounting. Together, these features reduce downtime during installation and spare-parts stocking for OEMs and industrial end users. Regreasable bearings extend bearing life and reduce maintenance cycles, lowering total cost of ownership. In practice, this means fewer unscheduled stops in critical pumping lines and longer service intervals in remote locations. With a 60-minute duty cycle rating, the motor is designed for continuous operation in typical pumping scenarios. Direct On Line starting simplifies control hardware and minimizes startup transients, improving plant reliability. This makes it easier to retrofit into legacy systems or integrate with existing soft-starter schemes without major rewiring. It also supports rapid commissioning for project-based deployments, including municipal water systems and industrial pump lines. Stock availability across multiple warehouses (US, GB, SG, CN) and a 0-day lead time reduce procurement risk and spare-stock requirements. For engineers, this translates to shorter project timelines and faster maintenance turns when replacements are needed, especially for frame size 145JM and 3-phase, 60 Hz operation.
