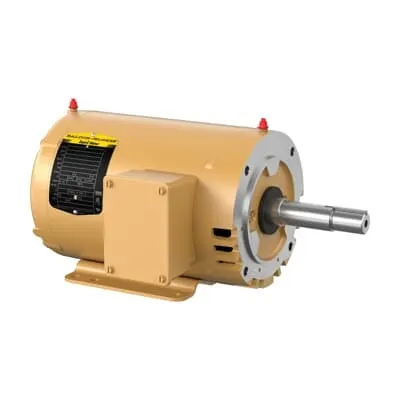

ABB 7BEJMM3158T-5 Pump Motor - CSA/UR Certified
Part Number: 7BEJMM3158T-5
Quick Summary
ABB 7BEJMM3158T-5 Pump Motor is a high-efficiency 3 HP, 575 V motor designed for close-coupled pumping in mid- to high-load applications. This model addresses downtime and motor mismatch by offering direct-on-line starting, robust bearings, and a compact footprint for tight space installations. It carries CSA, CSA EEV, and UR certifications, reinforcing compliance for U.S. and international projects, and supports IE2 Premium Efficiency ratings to reduce energy use. With OPEN enclosure and C-Face/Foot Mounted setup, installation and service are straightforward, minimizing maintenance time. From OEMs to service teams, this motor aligns with industrial pumping, HVAC, and water-treatment workflows, delivering reliability, traceability, and operational cost savings.
Product Information
Extended Description
7BEJMM3158T-5 ABB: Pump Motor 3 Hp 575 V (EJMM3158T-5)
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
EGAUT001EXPU
Warranty Return
Product under warranty must be returned
Configuration Only
No
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
GBINS001EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
SGIND004EXPU
Warranty Return
Product under warranty must be returned
Country of Origin
United States (US)
Lead Time
0 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USABB014EXPU
Warranty Return
Product under warranty must be returned
ABB Type Designation
3HP,3450RPM,3PH,60HZ,143JM,3528M,OP
Ambient Temperature
40 °C
Bearing
6206 | Ball
Bearing NDE
6203 | Ball
Brake Present
No
Brand / Label
Baldor-Reliance
Catalog Number
EJMM3158T-5
Certification Agency
CSA | CSA EEV | UR
Country of Origin
United States (US)
Customs Tariff Number
85015220
Dimension Diagram
35LYT910: Dimension Sheet
Drive End Flange Type
C-Face
Duty Time
60 Min
ETIM 7
EC001851 - Electric motor
Efficiency Level
2015 Small Motor Standard | IE2 | Premium Efficiency (NEMA 12-12)
Electrical Data
Enclosure Type
OPEN
Frame Material
Steel
Frame Size
145
Frequency (f)
60 Hz
Global Commercial Alias
EJMM3158T-5
Gross Volume
3496.049 in³
Gross Weight
48 lb
IDEA Granular Category Code (IGCC)
1320 >> Pump motor AC
Insulation Class
B
Invoice Description
3HP,3450RPM,3PH,60HZ,143JM,3528M,OPEN,F1
Made To Order
No
Medium Description
Close Coupled Pump, 3 HP, 3600 RPM, Frame Size 145Jm, C-Face Mounting, 3 Phase, OPEN Enclosure, 575 V, 60 Hz (EJMM3158T-5)
Minimum Order Quantity
1 piece
Motor Base Type
Foot Mounted
Motor Frame Size
145JM
Motor Frame Suffix
JM
Mounting Orientation
Horizontal
Mounting Position
F1
NEMA Design Code
B
Number of Phases
3
Number of Poles
2P
Number of Poles (High)
2
Number of Speeds
Single Speed
Order Multiple
1 piece
Output Power
3 Hp
Power Factor
89 %
Product Name
Close Coupled Pump
Product Net Depth / Length
19.375 in
Product Net Height
13.123 in
Product Net Weight
48 lb
Product Net Width
13.75 in
Product Type
Undefined
Quote Only
No
Rated Current (In)
3 A
Rated Efficiency
85.50 %
Rated Speed
3450 r/min
Replaced Product ID (OLD)
7B35T910L264G1
Selling Unit of Measure
piece
Service Factor
1.15
Shaft Diameter
0.88 in
Short Description
3 HP, 3600 RPM, Frame Size 145Jm, C-Face, 3 PH, OPEN, 575 V
Standards
NEMA
Starting of Motor
Direct On Line
Stocked At (Warehouses)
China | Alabama, United States | Alaska, United States
Synchronous Speed (vsyn)
3600 r/min
Type of Duty
Continuous
UNSPSC
26101107
Voltage Rating
575 V
Premium efficiency IE2 performance reduces energy consumption and operating costs in constant-running pump applications. Feature → Business Impact → Application: IE2 rating lowers energy bills for 3 HP motors in 575 V, 60 Hz systems, improving total cost of ownership during continuous operation in pumping and fluid-handling duties. Feature → Business Impact → Application: Open enclosure with 575 V, 60 Hz 3-phase compatibility simplifies cooling and serviceability, reducing downtime during maintenance for water treatment and HVAC pumping. Feature → Business Impact → Application: 2-pole design (3600/3450 r/min) delivers strong startup torque and reliable flow in close-coupled pump configurations. Feature → Business Impact → Application: C-Face and Foot Mounted mounting options streamline installation in constrained spaces, supporting faster OEM installation and retrofit projects. Feature → Business Impact → Application: CSA/CSA EEV/UR certifications ensure regulatory compliance across North America and international projects, lowering procurement risk for critical pumping systems. Feature → Business Impact → Application: Stocked-at warehouses enables shorter lead times, improving project scheduling for pump retrofits and new builds.
Get a Quick Quote for a ABB 7BEJMM3158T-5
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 7BEJMM3158T-5?
Enquire Now
FAQs
Yes. The motor is designed for 575 V, 60 Hz, 3-phase power and uses an OPEN enclosure suitable for pump applications. It supports C-Face/Foot Mounted configurations, enabling straightforward mounting and alignment. Direct-on-line starting helps minimize control complexity, while standardized dimensions (Frame 145JM) simplify replacement and retrofit projects.
Key specs include 3 HP output, rated current around 3 A, and a rated speed of 3450 r/min with a synchronous speed of 3600 r/min. The motor features IE2 premium efficiency, insulation class B, and a 0.88 in shaft diameter. This combination supports reliable, energy-efficient operation in continuous-duty pumping scenarios.
Industries such as water treatment, HVAC pumping, and general industrial fluid handling benefit most. The motor’s 575 V, 60 Hz 3-phase design, open enclosure, and C-Face/foot mounting make it ideal for close-coupled pump assemblies in confined spaces and retrofit projects where reliability and regulatory compliance are critical.
The motor carries CSA, CSA EEV, and UR certifications, supporting North American and international procurement. It also aligns with NEMA-related design codes and IE2 energy efficiency standards, offering a clear path to regulatory compliance in diverse installations.
Benefits include robust ball bearing and mechanical design for long life with minimal maintenance, direct-on-line starting reducing drive hardware complexity, and energy savings from IE2 efficiency. Stocked availability shortens lead times, which supports faster project commissioning and lower total cost of ownership for OEMs and service teams.
